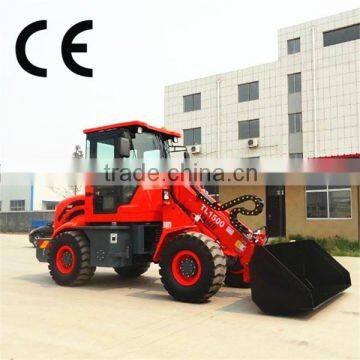

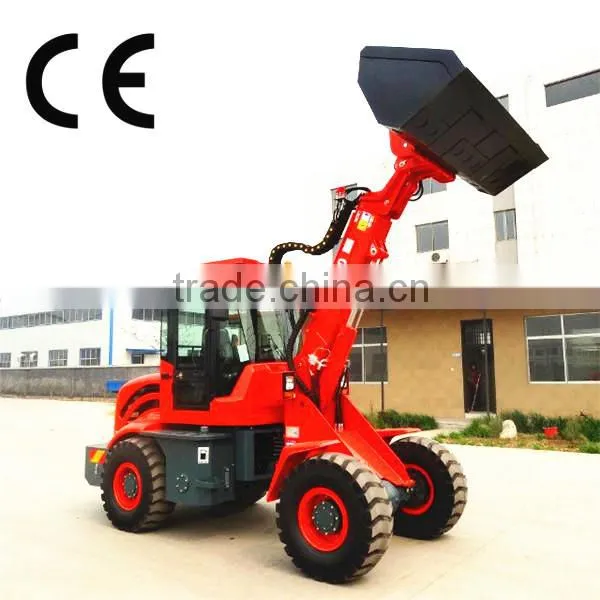

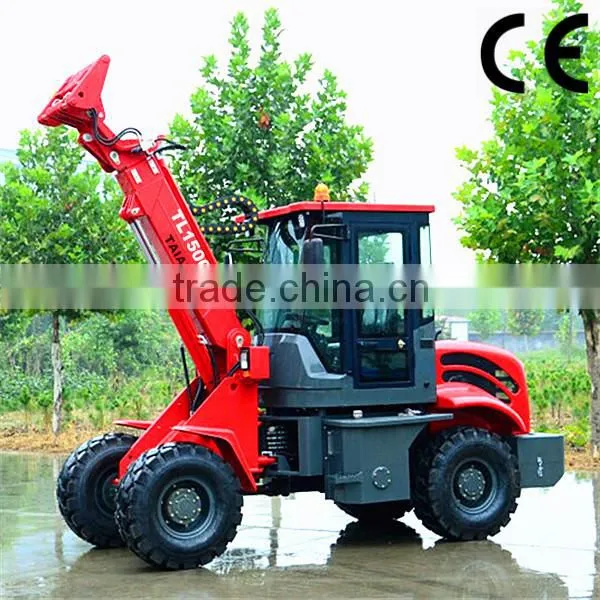

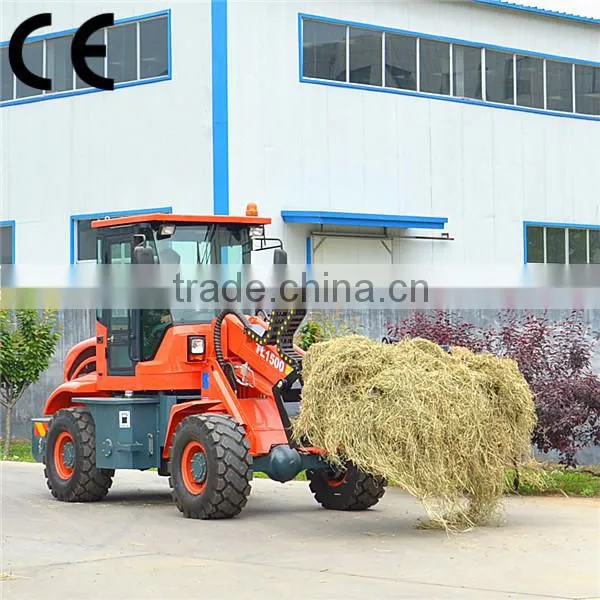

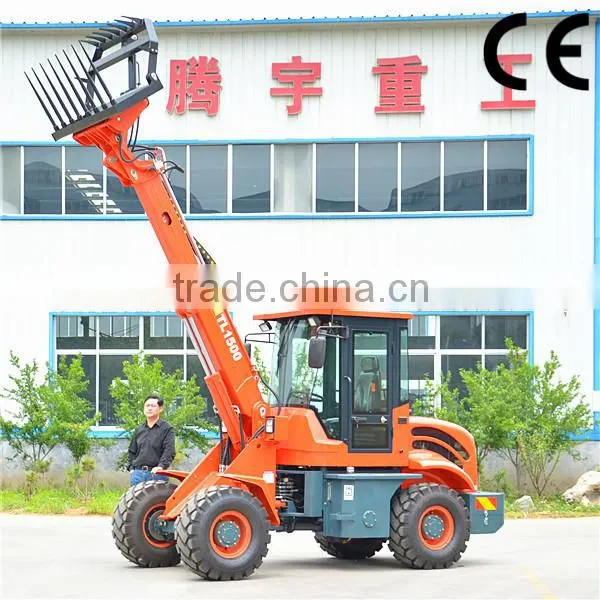

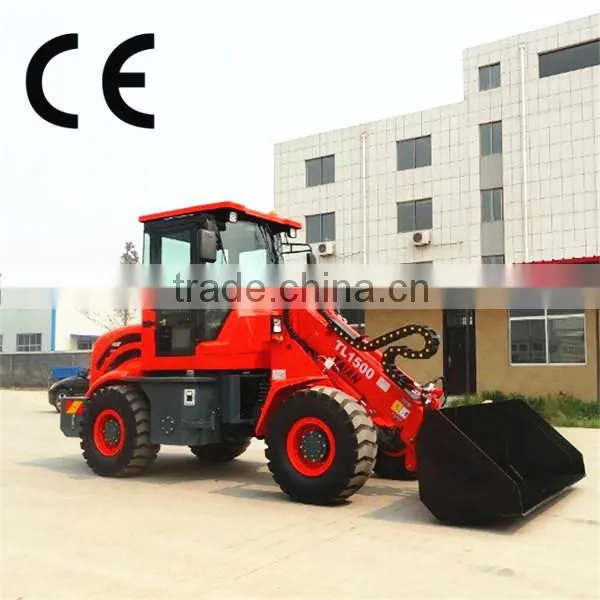

Help CenterWheel Loader Small 1500kg Front End Wheel Loader With 0.8cbm Bucket
Related Products
-
New Wheel Loader DY1150 Wheel Loader Small Loader for SaleNegotiableMOQ: 1 Set -
Trailer Loader DY1150 Powerful Diesel Engine Loader Price Low for SaleNegotiableMOQ: 1 Set
-
Small Front End Wheel Loader Mini Loader With Quick Hitch for Multi UseNegotiableMOQ: 1 Unit
-
Small Mini Tractor Backhoe Loader for SaleNegotiableMOQ: 1 Unit
-
TAIAN TY18 Front End Wheel Loader for SaleNegotiableMOQ: 1 Unit
Dear,
This is Christina, thank you for visiting our website, hope that any of our products can be of your interest, and I will try my best to be helpful and service you. Sincerely hope to have your support to our business, thank you in advance.
1.Q:Why choose us?
A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.
Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.
Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.
2.Q:What’s the warranty of the products?
A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
Model |
TL1500 |
|
Engine Details |
Engine model |
Euro III Xinchai 498BPT |
Engine power |
37KW (50.32H.P.) |
|
Rated Speed |
2200 r/p.min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
230g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
|
Bucket |
Bucket Capacity |
0.8 m3 |
Bucket width |
1700mm |
|
Bucket type |
Heavy-duty bolt on teeth |
|
Overall Dimensions |
Overall Length |
4390mm |
Overall Height |
2720mm |
|
Overall Width |
1870mm |
|
Tyre |
Model |
20.5-16, 12ply |
Width |
307mm |
|
Diameter |
831mm |
|
Brake System |
Service Brake |
Four Wheel disk brake |
Parking Brake |
Hand operated |
|
Max. lifting Height |
4250mm |
|
Rated Load |
1500kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Wheelbase |
2400mm |
|
Track |
1345mm |
|
Min Turning Radius: |
4950mm |
|
Weight |
3960kg(without bucket) |
|
System Pressure |
20Mpa |
|
Hydraulic output |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
OPTIONS | ||
Original Cummins engine 60HP | ||
Original Cummins engine 80HP | ||
Rear hydraulic output | ||
3 point hitch | ||
Air conditioner | ||
Combined joystick of electrical gearshift and boom extension | ||
Agriculture Tyre 16/70-20 | ||
OTR Tyre 16/70-20 | ||
Solid Tyre 20.5-16 | ||
