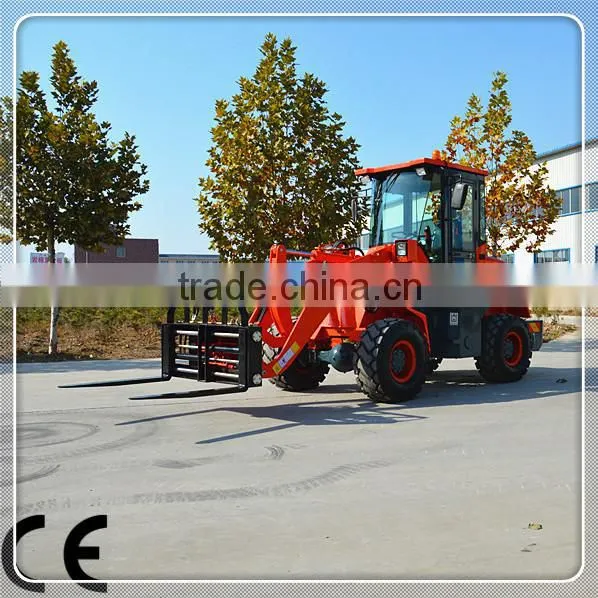

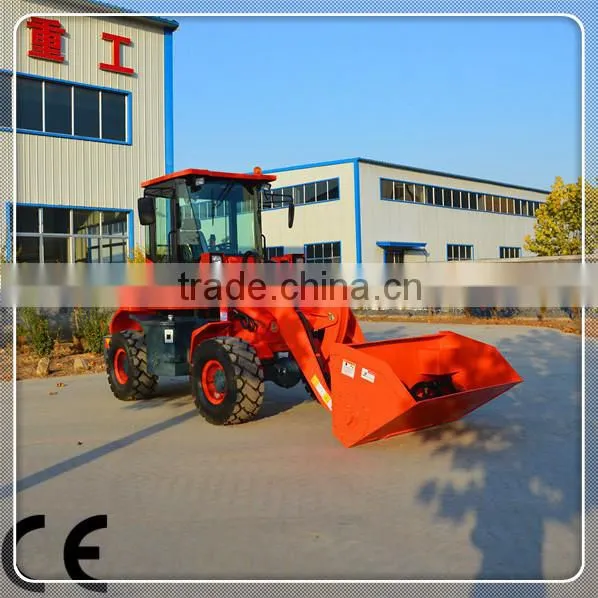

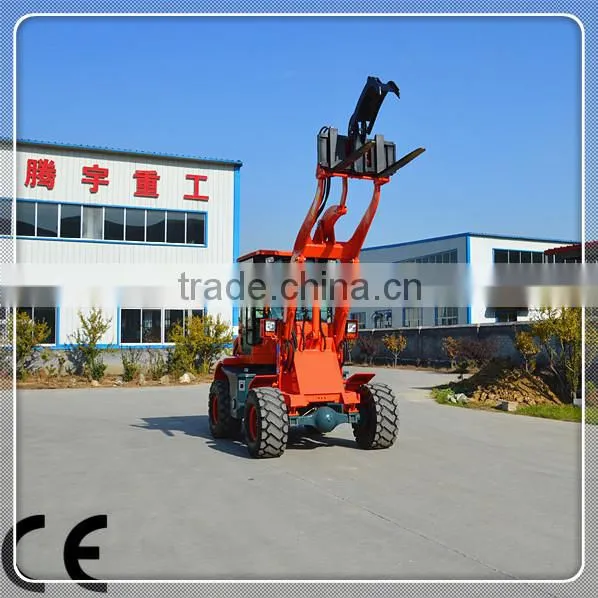

1.8 ton front loader TY18 with 2CBM big bucket loader for sale:
Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
1.0 Engine Details
(1) Model: YUNNEN4102GB
(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power:60KW (81H.P.)
(4) Rated Speed:2400 r/p.min (rpm)
(5) Fuel Consumption ratio in standard working condition: 180g/kw.h
2.0 Transmission System
Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) Bucket Capacity: 0.8 m3
(2) Bucket width: 1700mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 4650mm
(2) Overall Height:2750mm
(3) Overall Width: 1870mm
(4) Max. lifting Height:3450mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4950mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering
6.0 Brake System
(1) Service Brake:Four Wheel Chuck brake
(2) Parking Brake:Hand operated
7.0 Tyre
(1) Model:17.5-16, 12ply (2)Width: 307mm(3) Diameter: 831mm
8.0 Wheelbase: 2400mm
9.0 Track: 1345mm
10. system pressure:20Mpa; Hydraulic output:96L/min
1.We have been making such kind of loader for 14 years, every single part of the loader has been tested by market, thus it is a reliable mature product.
2.Standard quick hitch system enable it can use many different kind of attachments.
3.Special treatment of vibration and noise makes it stand out from other loaders.
4.Optional rear hydraulic output makes it a combination of loader and tractor.
5.With the support of an experienced engineering team, we can realize customers’ special requirements.
You are warmly welcomed to visit our factory.
