For Photo Album , Menu Making All-in-one Machine (DHY-A)

For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-1
For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-2
For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-3
For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-4
For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-5
For Photo Album , Menu Making All-in-one Machine (DHY-A) thumbnail-6
For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-1

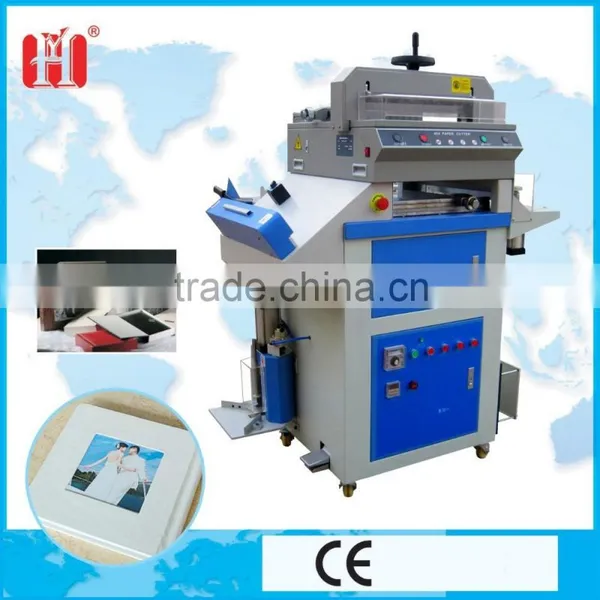

For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-2

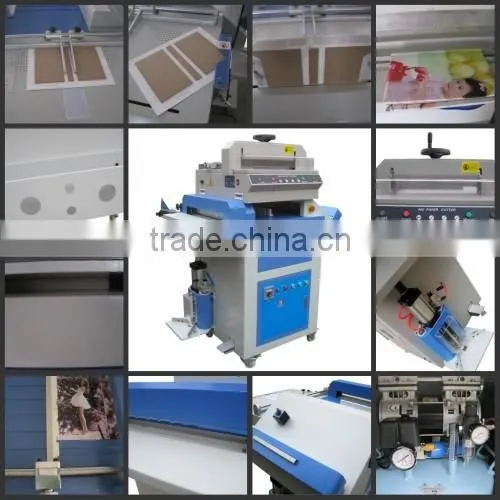

For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-3

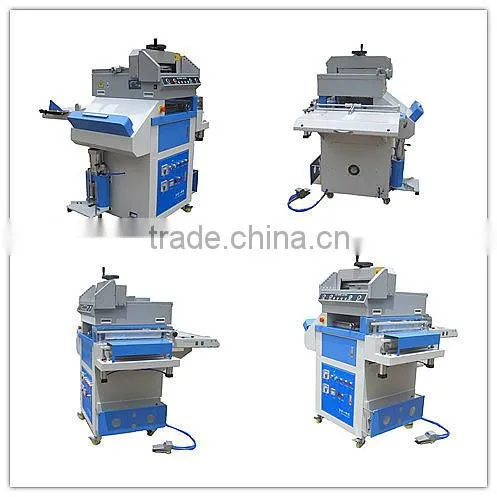

For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-4
For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-5

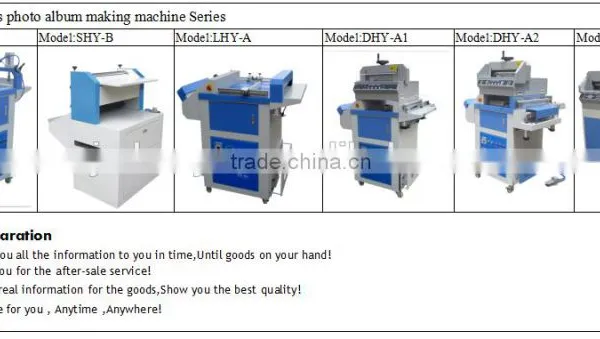

For Photo Album , Menu Making All-in-one Machine (DHY-A) photo-6
US$ 1,000 - 3,333 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Multifunction machine
Automatic Grade:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Jiangmen Huayue Photographic Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Multifunction machine
Automatic Grade Semi-Automatic
Place of Origin Guangdong, China
Brand Name HY
Model Number DHY-A
Voltage 220v/50hz
Power(W) 1.5kw
Dimension(L*W*H) 109*115*153cm
Weight 414kg
Certification CE
Warranty one year
After-sales Service Provided Overseas service center available

Photo book making all-in-one machine (DHY-A)





High quality with CE wedding photobook making machine

 For photo album , menu making all-in-one machine (DHY-A)

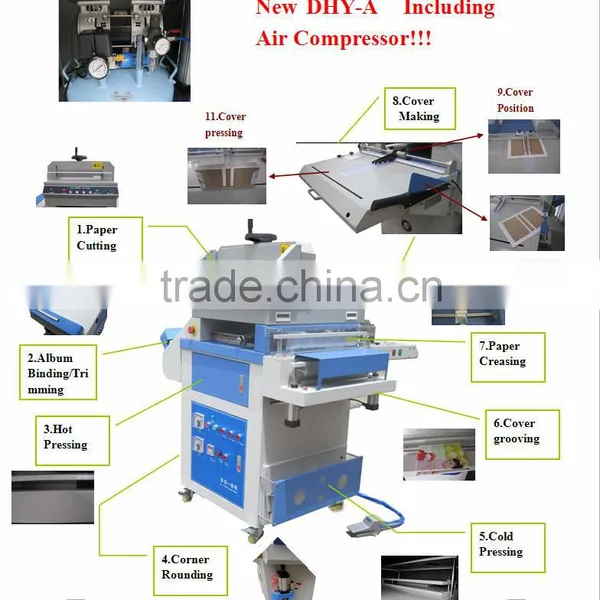

The High quality with CE wedding photobook making machine is used for making photo album, menu and more. The Heat and cold pressing corner cutter photo album making machine includes 10 functions. Creasing, trimming, hot press, cold press, paper cutting, corner rounding and cover ver cutter,groove machine,cover position and the air compressor . It operates easily and works highly effective.



1. Temperature uniform and shorten the drying time

2. Not to change the album's shape

3. Adjustable pressure

4. Small space , contineous ,operation ,increasing efficiency

5. Fine pressing marks , not to hurt the photos



For photo album , menu making all-in-one machine (DHY-A)

Specification



Model

DHY-A

Max working width

550mm

Creasing mark thickness

0.8/1.2/1.5mm

Creasing way

Pneumatic

Trimming length

540mm

Trimmng thickness

70mm

Trimming way

Pneumatic

Hot pressing height

285mm

Hot pressing length

460mm

Hot pressing width

550mm

Temperature

55-110°C

Cold pressing height

300mm

Cold pressing length

600mm

Cold pressing width

50mm

Max cutting size

450x450mm

Min cutting size

50mm

Max cutting thickness

40mm

Pushing paper

Manual operation

Corner cutting thickness

60mm

Angle size

R3-R8

Corner cutting way

Pneumatic

Max cover area

580mm x 370mm

Thickness of paper board

0.5-6mm

Thickness of backbone

0-6cm

Way of counterpoint

Light



For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra USD250.

Consumables:  PVC Sheet







Model

PVC-1

Color

Black ,white

Double-side Adhesive

Yes

MOQ

500 sheets

Standard Size

21*31cm, 27*38cm, 31*45cm, 21*21cm, 26*26cm, 31*31cm, 41*41cm, 19*19cm, 14*19cm, 15*21cm, 16*16cm

Customized Size

Yes

Standard Thickness

0.5mm,0.6mm,0.8mm,1.0mm,1.5mm

Package Kind

Carton

Delivery Time

9 Working days against payment

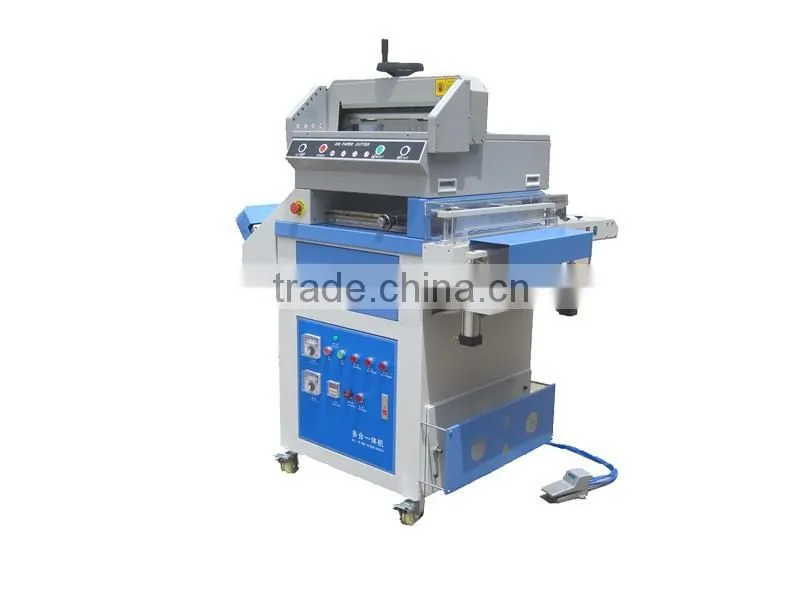

Machine details



For photo album , menu making all-in-one machine (DHY-A)

Products make by this machine:

For photo album , menu making all-in-one machine (DHY-A)For photo album , menu making all-in-one machine (DHY-A)



Company details





 For photo album , menu making all-in-one machine (DHY-A)

CE certification:

For photo album , menu making all-in-one machine (DHY-A)



Payment



Customers can choose the payment terms you accept.

Shipping



Because the machine is very heavy, it is always transported by ocean shipping. The ocean shipping cost depends on the destination port and package size. Port to port.



We arrange the local shipment,which’s easy for you to control the transportation cost. If your own forwarder in China can help you to handle the export ,we also accept the factory price(EXW.)



If you need the machine very urgently. We can also ship by air and express. We have good cooperations with them, this saves your shipping cost and guarantee your goods safe.Please contact for the shipping cost.

**Please note: Import duties, taxes and charges are not include in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your local custom office to know the details.

Warranty
  • One year warranty from you receive the item.
  • We will provide free replacement part in warranty. (Eliminate vulnerable and artificial damage.) But any warranty shipping cost is responsible by buyer.
  • Installation labor is your responsibility. (We have detailed instrution of parts replacing.)
  • For the sales service of our product, we will provide free technical support of equipment lifelong.
