Aluminim and PC Housing 3 Years Warranty Tube Lighting Led

Aluminim and PC Housing 3 Years Warranty Tube Lighting Led photo-1
US$ 8 - 16 MOQ: 500 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Samsung, Epistar
Warranty(Years):
5
Input Voltage(V):
AC 85-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Samsung, Epistar
Warranty(Years) 5
Input Voltage(V) AC 85-265V
Lamp Power(W) 18
Lamp Luminous Flux(lm) 2600
Lamp Luminous Efficiency(lm/w) 135
Color Temperature(CCT) Other, 2700K-6500K
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 40000
Lamp Body Material Aluminum
IP Rating Other, IP40
Certification CE, EMC, FCC, LVD
Place of Origin Guangdong, China
Brand Name SunFlux
Model Number T8

  Aluminim and PC housing 3 years warranty tube lighting led



Description of SunFlux T8 Tube



Delivering a soft and low glare, high lumen efficiency, it is an ideal retrofit solution for commercial or industry applications. There is no UV or IR in the beam,making it suitable for illuminating heat-sensitive area.

Swiveling at 90 degree in both direction



Features:

  1. High luminous efficiency, >135lm/W led tube
  2. Very high quality of led diode and driver, PFC>0.9, energy saving >90%.
  3. Very low maintenance costs
  4. Long life time of 10 years
  5. CE, RoHS Approved, 5 years warranty
  6. Available in milky, transparent and strip diffuser

Optional Features:

  1. Compatible with electronic and magnetic ballast
  2. 180 ° rotatable and lockable end caps
  3. Power input in one end and double-end
  4. Color Rendering Index CRI >90
  5. Dimmable

Specification of >135lm/W T8 LED Tube lighting





Item Number

LED-TUBE-22W-1500mm

LED-TUBE-18W-1200mm

LED-TUBE-12W-600mm

Power Comsuption(w)

22W

18W

12W

Base

G13





Voltage

AC100-240V, 50/60Hz





Lumen output(lm)

3150lm

2600lm

1650lm

Color Temp.

2700K-6500K





CRI

>80Ra

>80Ra

 >80Ra

LED Chip

Epistar 2538SMD





Beam Angle

120°





Power Factor

>0.9





Size

Φ26 * 1495mm

Φ26 * 1195mm

Φ26 * 598mm

Working Temp.

-20°C~50°C





Lifespan

50,000Hrs





Housing Material

Aluminum+PC





Certificate

CE, RoHS, FCC





 Warranty

 5 Years









Optical Parameter of G13 1200mm 18W led tube lighting



 Aluminim and PC housing 3 years warranty tube lighting led

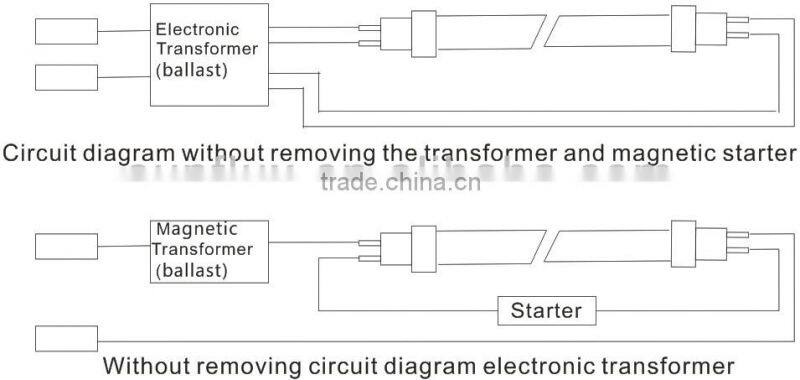

Assembly Diagram

Aluminim and PC housing 3 years warranty tube lighting led





Detail of T8 LED Light Fluorescent Tube



Aluminim and PC housing 3 years warranty tube lighting led

 Aluminim and PC housing 3 years warranty tube lighting led



Packing





Aluminim and PC housing 3 years warranty tube lighting led

White Natural box, Color Box, Tailored Packing with private label optional



Applications of LED Tube





Residential areas, Office, Hotels, Shops, factory, warehouse,

garage ect, all kinds of home lighting, commercial lighting and industry applications.



Aluminim and PC housing 3 years warranty tube lighting led



Our Service



  1. Tailored packing, OEM products acceptable
  2. 3-5 Years warranty
  3. Free replacement
  4. Office and Warehouse in Denmark, fast delivery for sample order and small order
  5. EU warranty and service provided

Trade Information




Trade Terms:  EXW, FOB, CIF ect.

Sea Port: YanTian, Shenzhen

Payment Terms:  Accept T/T, PayPal ( for small order)

Lead Time: 15-20 Days. Sample 3-5 days

Delivery:  Express (DHL, UPS, TNT ect.), Sea  transportation, Air Shipping
