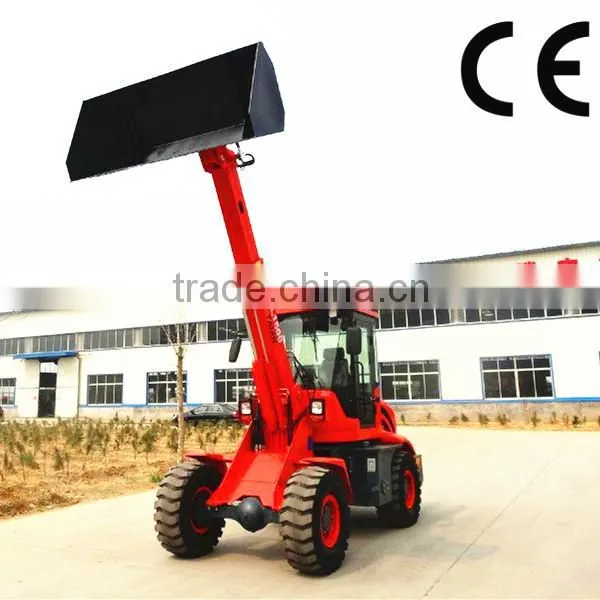

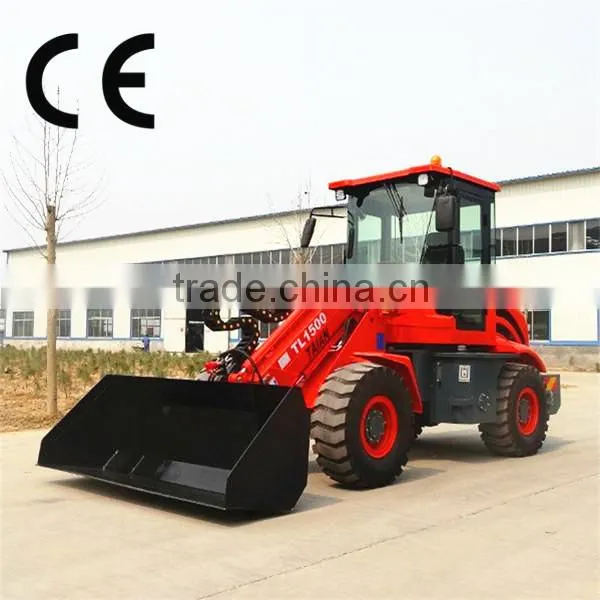

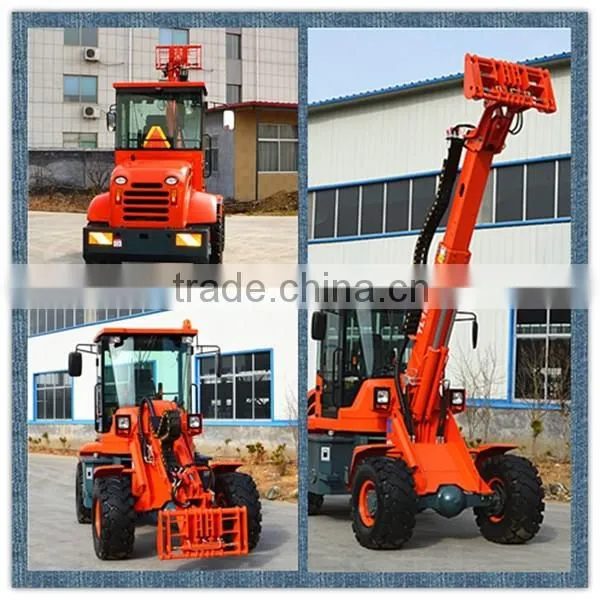

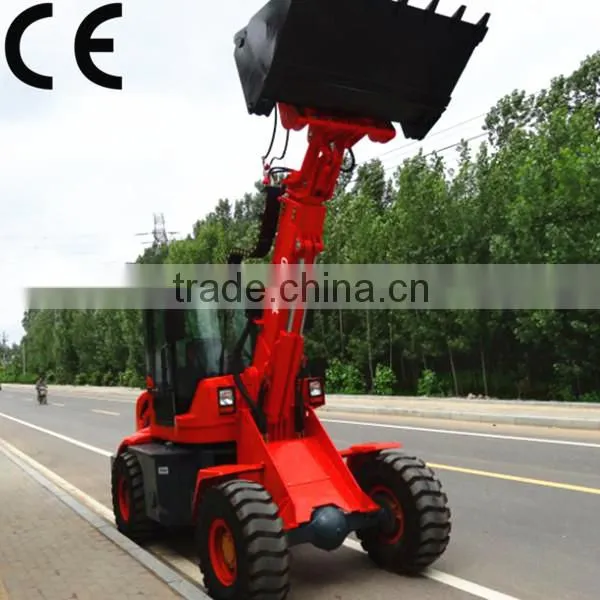

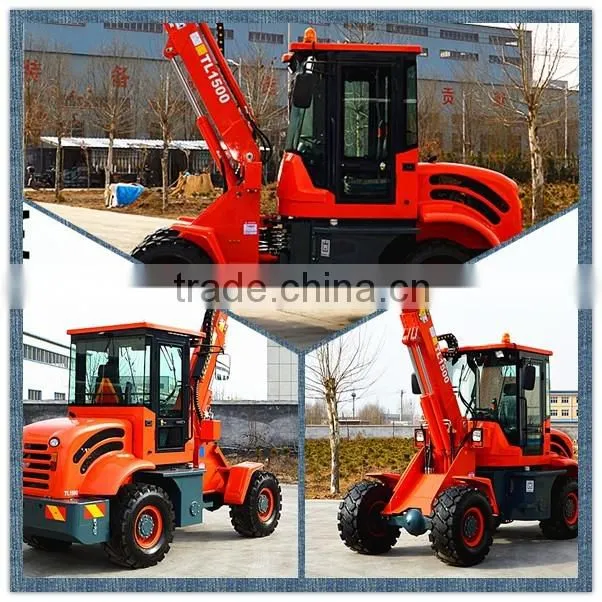

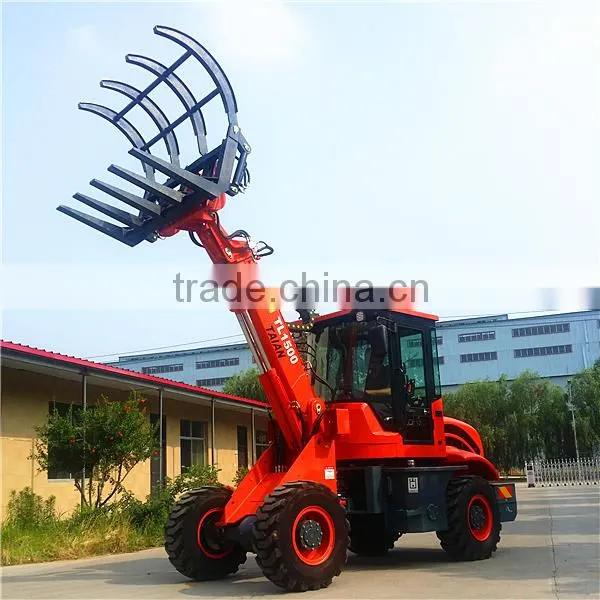

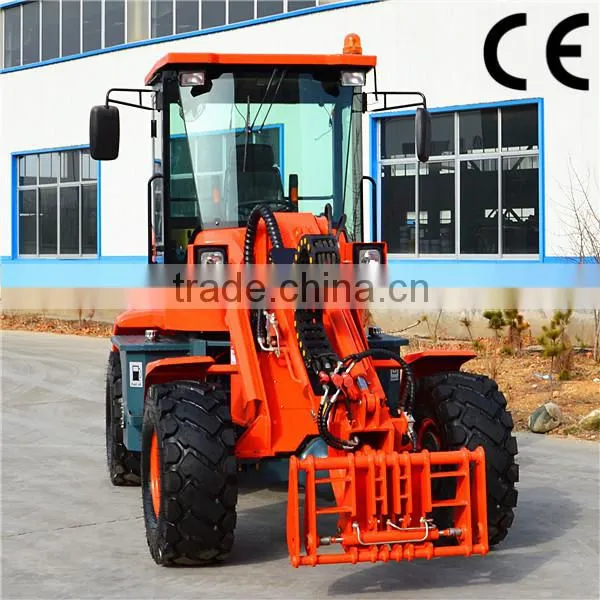

telescopic construction wheel loader 1.5 tons rated load
construction wheel loader
1.Market familiar design
2.easy operation by joystick and buttons.
3.Hydrostatic four wheel drive,
4.Low Fuel Consumption
5.With CE certificate
6. Adjustable spring seat
7.Telescopic boom
8.Self levering.
9. Axle with hub reducer
10.Pressure testing connector on chassis
11.Wide view cabin
12.Optional rear hydraulic output
13.4WD drive
14.Convenient maintenance.
15.The engine cover can be opened easily
construction wheel loader
1.The telescopic boom which can reach 4.2m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system, mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
Model |
TL1500 |
|
Engine Details |
Engine model |
Chinese Changchai 4L68 |
|
Engine power |
36.8KW (50H.P.) |
|
Rated Speed |
2400 r/p.min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
230g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
Bucket |
Bucket Capacity |
0.8 m3 |
|
Bucket width |
1700mm |
|
Bucket type |
Heavy-duty bolt on teeth |
Overall Dimensions |
Overall Length |
4390mm |
|
Overall Height |
2720mm |
|
Overall Width |
1870mm |
Tyre |
Model |
20.5-16, 12ply |
|
Width |
307mm |
|
Diameter |
831mm |
Brake System |
Service Brake |
Four Wheel disk brake |
|
Parking Brake |
Hand operated |
Max. lifting Height |
4250mm |
|
Rated Load |
1500kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Wheelbase |
2400mm |
|
Track |
1345mm |
|
Min Turning Radius: |
4950mm |
|
Weight |
3960kg(without bucket) |
|
System Pressure |
20Mpa |
|
Hydraulic output |
96L/min |
|
Max. Height to the Pin |
4200 mm |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
Q:Why choose us?
A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.
Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.
Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.
Q:What’s the warranty of the products?
A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
