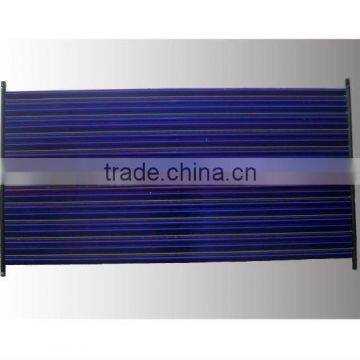

solar thermal panel
We can supply 4 kinds of absorber plate with blue coating.
Efficiency: 0.77
Emission: 5.6
Tube |
Fins |
plate |
|
1 |
Stainless steel #304 Thickness 0.8mm Length: 50~200cm |
Aluminum thickness 0.4mm Width: 83mm~120mm |
Coating (BlueTec) |
| 2 |
Stainless steel #304 Thickness 0.8mm Length: 50~200cm |
Copper thickness 0.12~0.2mm Width: 83mm~120mm |
Coating (BlueTec) |
3 |
Copper Thickness 0.4mm Length: 50~200cm |
Aluminum, thickness 0.4mm Width: 83mm~120mm |
Coating (BlueTec) |
| 4 |
Copper Thickness 0.4mm Length: 50~200cm |
Copper, thickness 0.12~0.2mm Width: 83mm~120mm |
Cotaing (BlueTec) |
YUHO flat plate solar water heater have approved by
- SRCC OC-100 in U.S.A.
- Solar keymark EN-12975 in Europe.
- ISO 9001
- D&B D-U-N-S
YUHO is a Taiwan solar water heater manufacturer produces and distributes high quality MADE IN TAIWAN products all over the world. All of our products are pressurized and can be used both domestically and industrially. With our advanced R&D ability and 15 years service experiences, we are the only manufacturer in Taiwan who can provide the large commercial solar water heater system solution. Additionally, our products have already past all tests, and get the solar keymark ( Europe ) and the SRCC ( U.S.A.) certificate.
YUHO is a professional manufactuer as below;
1) Heat pipe vacuum tube solar water heater ( 150 / 200 / 300 Liter )
2) Heat pipe vacuum tube solar collector
3) Flat plate solar water heater ( 150 / 200 / 300 / 400 / 500 Liter )
4) Flat plate solar collector ( Solar keymark and SRCC approved )
5) Stainless steel 304 / 316L corrugated pipe
6) Brass fitting parts of SS corrugated pipe
7) Yellow / white color PE coating corrugated pipe
-
Material Stainless steel 304 / 316L Outer Diameter 16.1 / 18 / 20 / 26.5 / 31.7 / 38.5 mm Wall Thckness 0.22~0.25mm Heat treatment Optional Packing Plastic bags or carton Application Water or Gas Coating optional ( white / black / yellow )
Brass fitting parts for stainless steel 304 corrugated pipe
-
Grade C3771 / 58-1 / 59-1 / C3064 Size 15A / 20A / 25A / 32A
17.8 / 25.6 / 31.7 / 38.5mm ( Outer Diamer )Thread 1/2" , 3/4" , 1" ( Internal & External ) Type Coupling / Tee / Cap / Elbow female & male /
Q : Are you manufactuer or trader ?
A : YUHO is a professional manufacturer for more than 10 years in Taiwan.
Q : Is it made in Taiwan ?
A : yes, 100% made in Taiwan with high quality control process.
Q: How can I get to your factory ?
A : The factory is located in the middle of Taiwan. High speed train from Taipei to our city takes around one hour. We will pick you up from the chaiyi station. Websit of high speed rail .tw/en/
Q : Do you have office in Taipei ?
A : NO, We are manufacturer and wellcome to visit our factory.
Q : Can I get a sample ?
A : yes, we provide 30cm pipe free sample for you to check the quality.
Q : Can I order customized tube?
A : yes, we do customized. We will need detail drawing, photo and sample from you.
