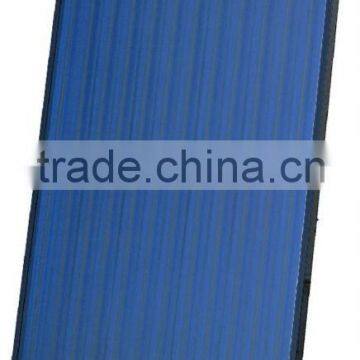

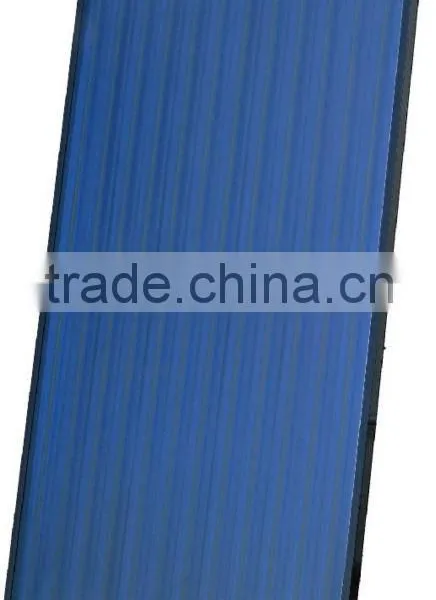

HP-2010 Solar water collector
- The solar collectors are finished with the high selective vacuum sputtering coating.
- The insulation layer minimized the thermal emission in the low seasonal temperature.
- 4.0mm tempered glass is adopted to build the covers to protect the thermal collectors from being damaged by the hailstone.
- The absorber area is 2.07 square meter.
- Silicone leak proofing.
- Aluminum casing.
Specification
| Model No. | HP-2010 |
| Dimension | 2024x1024x92mm |
| Absorber | Coating Aluminum |
| Flow pipe | Φ12.7 Stainless steel #304 |
| Manifold | Φ20mm |
| NO. of Riser | 10 tubes |
| Glass | 4.0mm Tempered |
| Leak Proofing | Silicone |
| Casing | Aluminum |
| Insulation | Fiberglass |
YUHO flat plate solar water heater have approved by

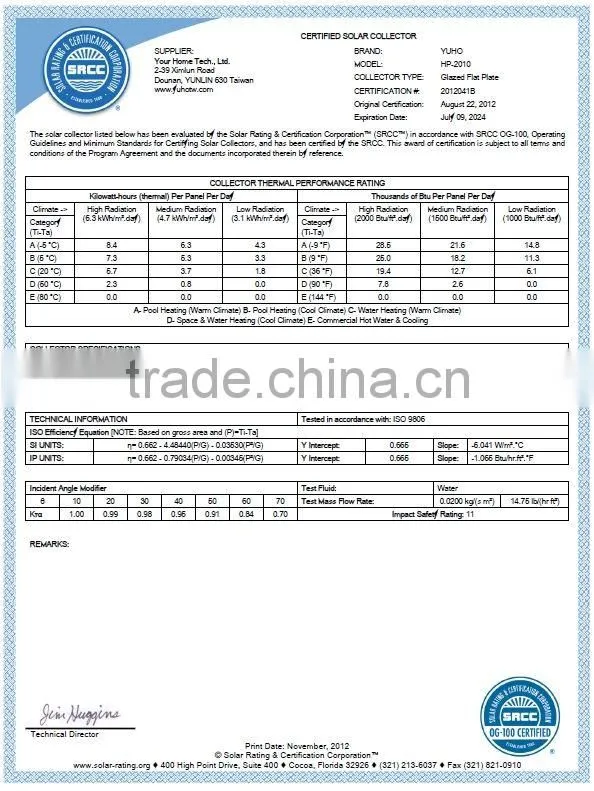

- SRCC OC-100 in U.S.A.

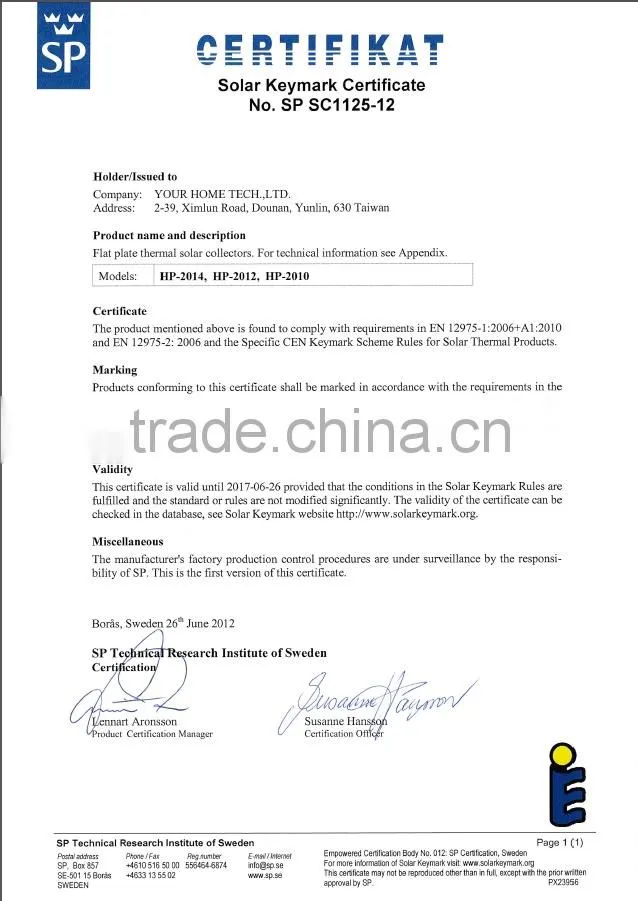

- Solar keymark EN-12975 in Europe.

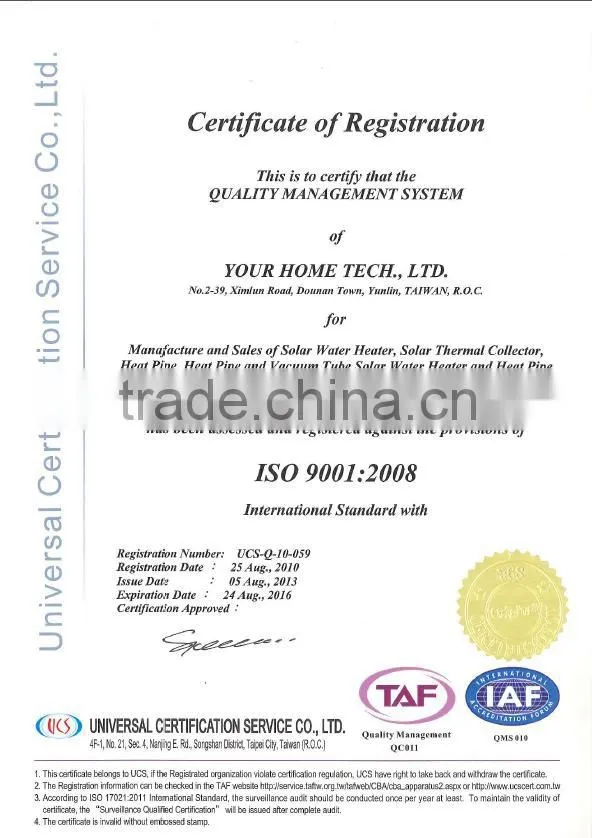

- ISO 9001

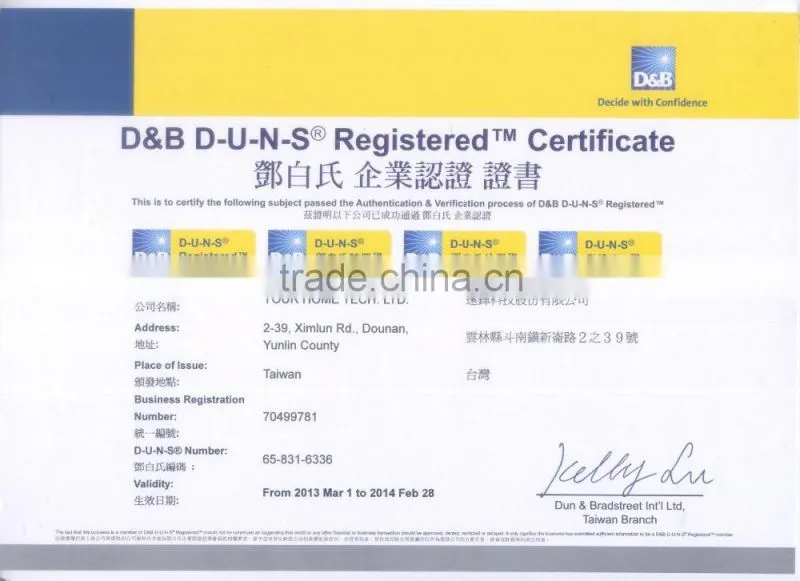

- D&B D-U-N-S
-
Material Stainless steel 304 / 316L Outer Diameter 16.1 / 18 / 20 / 26.5 / 31.7 / 38.5 mm Wall Thckness 0.22~0.25mm Heat treatment Optional Packing Plastic bags or carton Application Water or Gas Coating optional ( white / black / yellow )

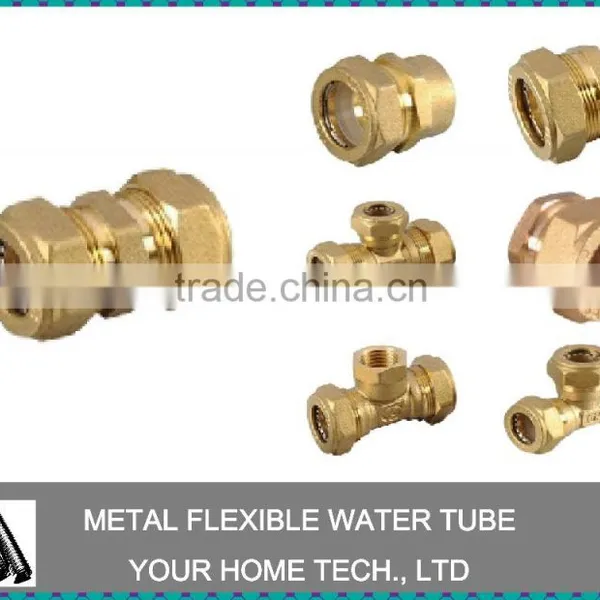

Brass fitting parts for stainless steel 304 corrugated pipe
-
Grade C3771 / 58-1 / 59-1 / C3064 Size 15A / 20A / 25A / 32A
17.8 / 25.6 / 31.7 / 38.5mm ( Outer Diamer )Thread 1/2" , 3/4" , 1" ( Internal & External ) Type Coupling / Tee / Cap / Elbow female & male /
Q : Are you manufactuer or trader ?
A : YUHO is a professional manufacturer for more than 10 years in Taiwan.
Q : Is it made in Taiwan ?
A : yes, 100% made in Taiwan with high quality control process.
Q: How can I get to your factory ?
A : The factory is located in the middle of Taiwan. High speed train from Taipei to our city takes around one hour. We will pick you up from the chaiyi station. Websit of high speed rail .tw/en/
Q : Do you have office in Taipei ?
A : NO, We are manufacturer and wellcome to visit our factory.
Q : Can I get a sample ?
A : yes, we provide 30cm pipe free sample for you to check the quality.
Q : Can I order customized tube?
A : yes, we do customized. We will need detail drawing, photo and sample from you.
