72w 1200x600 ceiling led light panel led
72w 1200x600 ceiling led light panel led Description
Product Description
Delivering an evenly and low glare light, improve the usage environment.
Super slim design is not only suitable for recessed installation, also in line with suspended and surface mounted and ceiling recessed installation
Rely on the latest side emitting LED technology and high-quality light guide plate, to deliver an appearance of clear, evenly and beautiful of the application.
Features:
- High Power, high luminous efficiency
- Energy saving >85%, long lifespan of 40,000 hours
- Quality led chip and driver, excellent lighting performance
- Low maintenance cost
- The latest side emitting LED technology and high-quality light guide plate, to deliver an appearance of clear, evenly and beautiful of the application
- 11.5mm thinckness, good heat dissipation led light.
On Request:
- High Color Rendering Index
- Customizable Color/Size
- RGB Full Color, 2100K-2700K tranditional color
- 1-10V, DALI, PWM, DMX, Silicon-control dimming
72w 1200x600 ceiling led light panel led Specification
Product Specification
Item No. |
LED-PANEL-LIGHT-12060 |
|
|
Power Consumption(w) |
72W |
72W |
56W |
Input Voltage |
AC 100-240V |
|
|
Lumen output(lm) |
5500lm-5800lm |
4950lm-5250lm |
4500lm-4750lm |
Color Temp. |
2700K-7000K, RGB |
|
|
CRI |
>80Ra |
>90Ra |
>80Ra |
LED Chip |
SAMSUNG 5630 |
5730SMD |
SAMSUNG 5630 |
Beam Angle |
120°, |
|
|
Power Factor |
>0.9 |
|
|
LED Driver |
MEANWell |
MEANWell |
MEANWell or Others |
Size |
1195x595x11 |
|
|
IP Rate |
IP32 |
|
|
Working Temp. |
-20°C~60°C |
|
|
Lifespan |
35,000Hrs |
|
|
Housing Material |
Aluminum |
|
|
Certificate |
CE, RoHS, FCC |
|
|
72w 1200x600 ceiling led light panel led Picture
Product Picture
China LED Panels More Sizes
panel led Installation guide
Product Installation

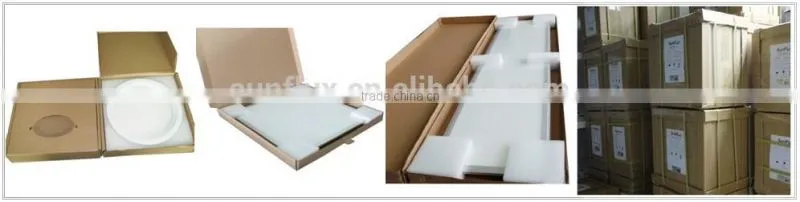

72w 1200x600 ceiling led light panel led Packing
Product Packing
- 1pc/Box; 4 Boxes/Carton
- Carton: 660 x 660 x 20mm
| Size | Model No. | Packing Size |
Quantity/CTN | G.W. (KG) |
|
| 300x300mm | LED-Panel-300x300 | 56x 42x 38 CM | 10pcs | 16 | |
| 600x600mm | LED-Panel-600x600 | 66x 66x 20 CM | 4pcs | 24 | |
| 600x300mm | LED-Panel-600x300 | 66x 36x 20CM | 4pcs | 20 | |
| 1200x600mm | LED-Panel-1200x600 | 126x 66x 11CM | 2pcs | 18 | |
Applications
Residential areas, Offices, Hotels, Bars, Cafés, Shops, Hospitality lighting
(Suitable for general lighting/ambience creation)
Our Services
- Professional R&D engineers from EU design the high quality product by evaluating the applicability, economic benefit and aesthetic, satisfy your needs of product.
- Well-trained and experienced sales look after your requirements comprehensively, provide you instant and precise service, assist you in proceeding marketing successfully.
- Specialized technical team as your consultant to consolidate your needs, provide you the best proposal.
- Efficiently support your OEM project.
- Provide 3 to 5 years warranty, any defectives during this time will be replaced by brand-new item.
- Set up office and warehouse in Denmark, fast delivery for sample/small order, help with your promotion.
- EU local warranty offered, more convenient for your sale and after-sale service.
- Offer tailored packing, private label and packing design as your request.
- Trade Terms: EXW, FOB, CIF etc.•Sea Port: YanTian, Shenzhen
- Payment Terms: Accept T/T, PayPal ( for small order)
- Lead Time: 15-20 Days. Sample 3-5 days
- Delivery: Express (DHL, UPS, TNT etc.), Sea transportation, Air Shipping
