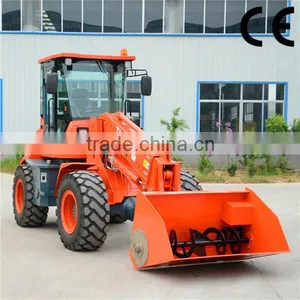

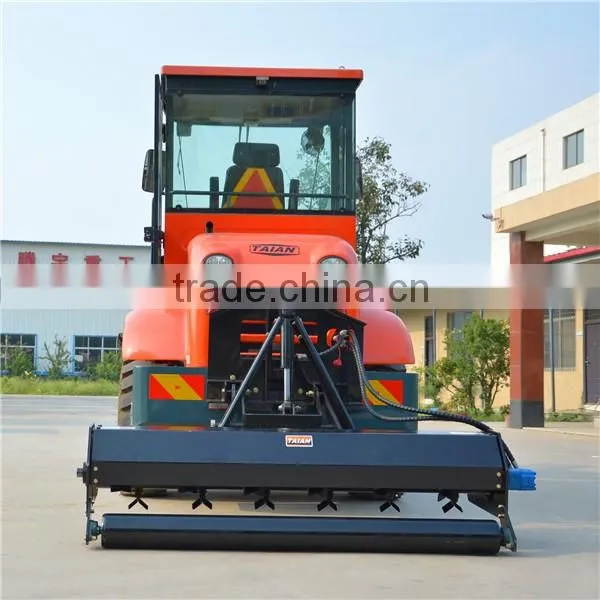

4WD wheel loader, snow balde wheel loader for sale
Multifunctional machine, combination of loader, telescopic loader and tractor, widely used in construction and agricultural work
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
Small 4WD wheel loader

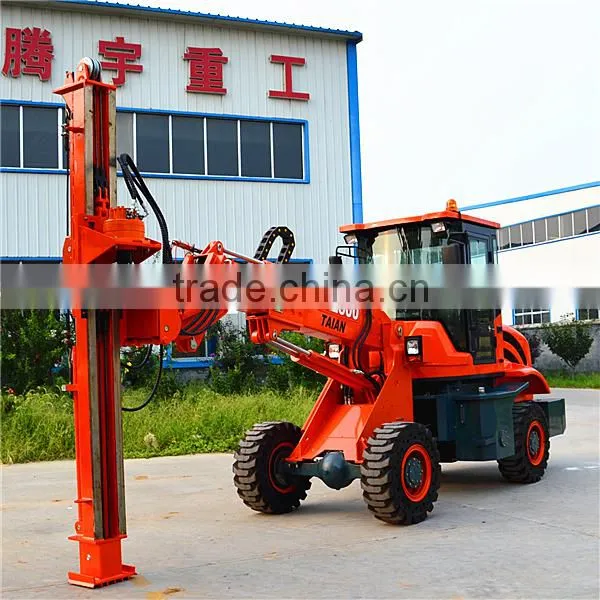

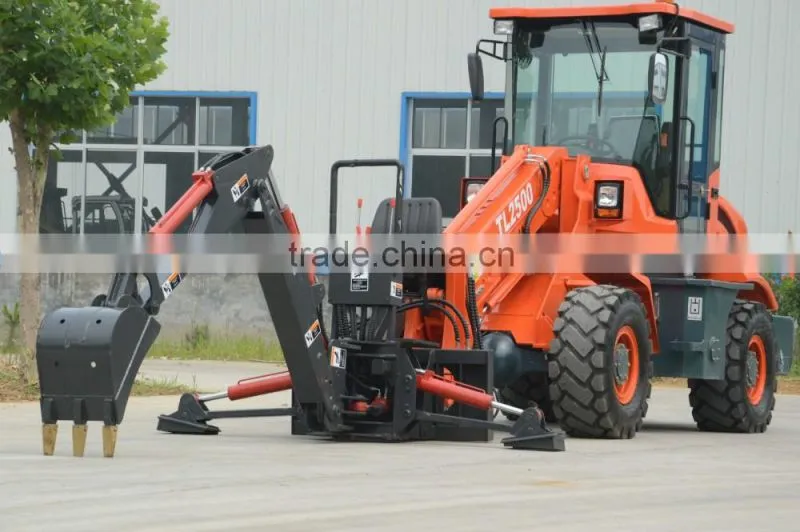

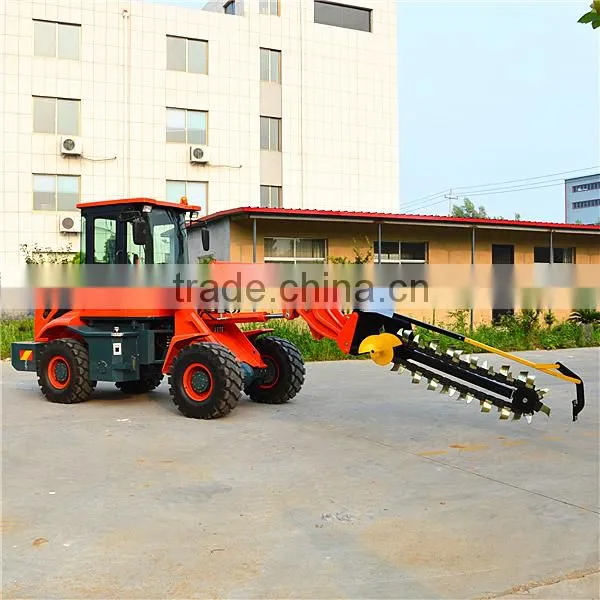

Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery. Our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.
Small 4WD wheel loader

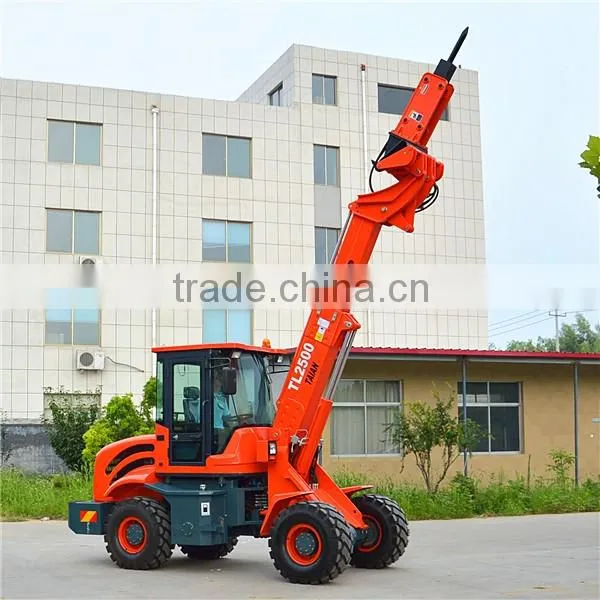

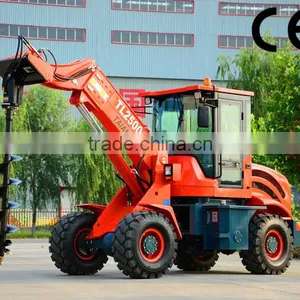

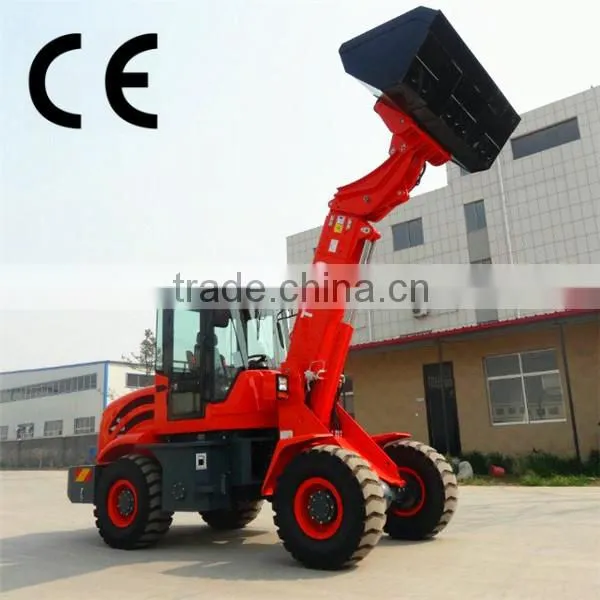

1. The telescopic boom which can reach 4.2m greatly increase its working scope.
2. The articulated structure and axle transmission design makes it powerful and has better pass through ability
3. The seals, joystick are famous oversea products which guarantee that it's a reliable long lasting machine.

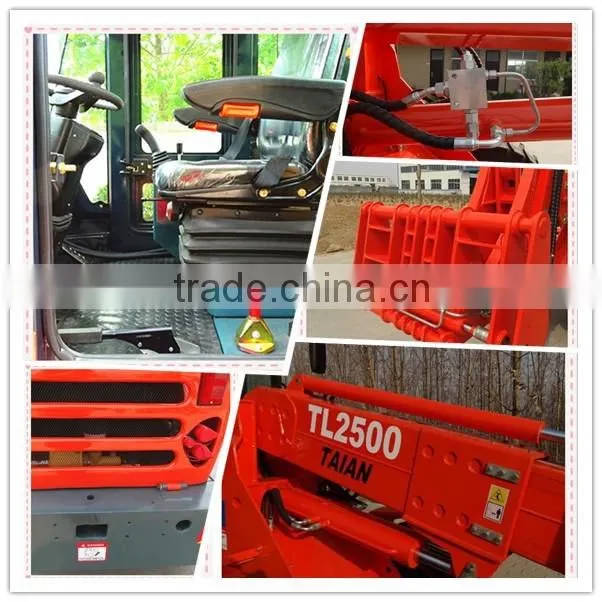

4. Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5. Quick coupling system, joystick and buttons makes the operating easy and convenient.
Model |
TL2500 snow balde wheel loader |
|
Engine Details |
Engine model |
YUNNEI 4102GB |
Engine power |
58KW (78.88H.P.) |
|
Rated Speed |
2400 r/p.min |
|
Engine cooling way |
Water cooling |
|
Fuel Consumption ratio |
180g/kw.h (standard working condition) |
|
Engine type |
In-line arrangement,4 cycle diesel Engine |
|
Bucket |
Bucket Capacity |
1.2 m3 |
Bucket width |
1800mm |
|
Bucket type |
Heavy-duty bolt on teeth |
|
Overall Dimensions |
Overall Length |
4500mm |
Overall Height: |
2720mm |
|
Overall Width |
1870mm |
|
Tyre |
Model |
20.5-16, 12ply |
Width |
307mm |
|
Diameter |
831mm |
|
Brake System |
Service Brake |
Four Wheel disk brake |
Parking Brake |
Hand operated |
|
Braking Type |
Air braking |
|
Axle |
With hub reducer |
|
Max. lifting Height |
4500mm |
|
Rated Load |
2500kg including attachment |
|
Transmission System |
Hydraulic converter + drive shaft + axles |
|
Wheelbase |
2430mm |
|
Min Turning Radius |
5600mm |
|
Track |
1470mm |
|
Weight |
4900kg(without bucket) |
|
System Pressure |
20Mpa |
|
Hydraulic output: |
96L/min |
|
Max. Height to the Pin |
4500 mm |
|
