Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-1

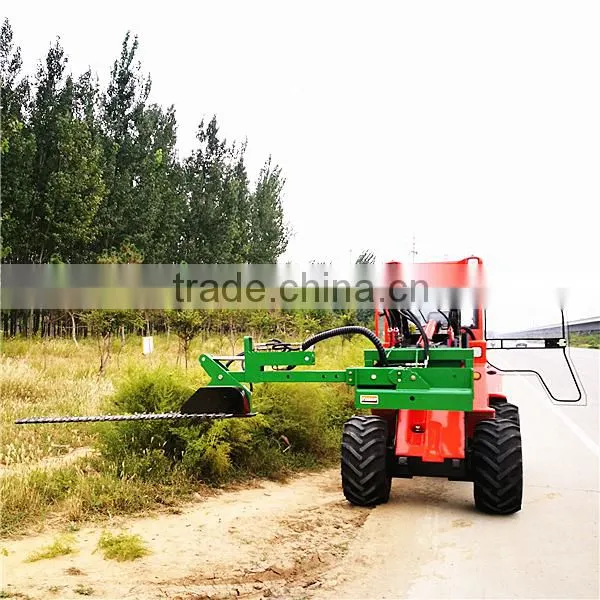

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-2

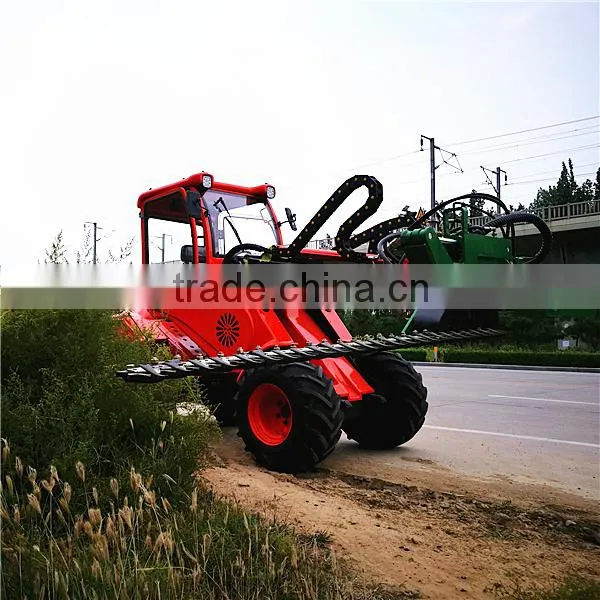

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-3

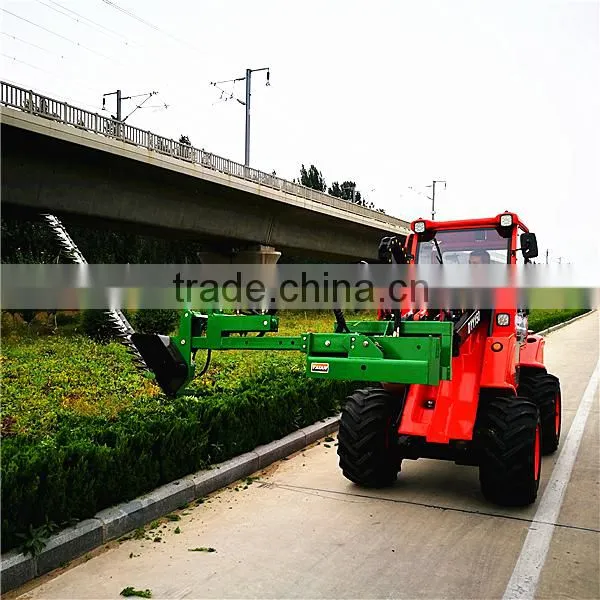

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-4

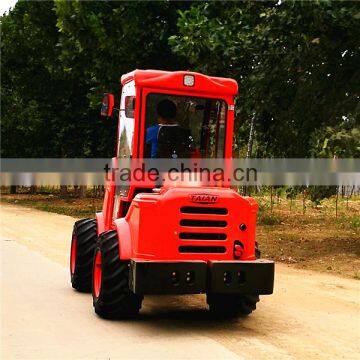

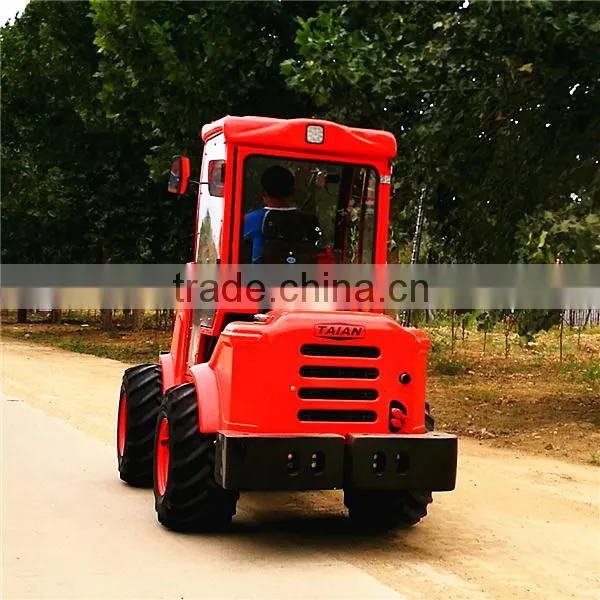

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-5

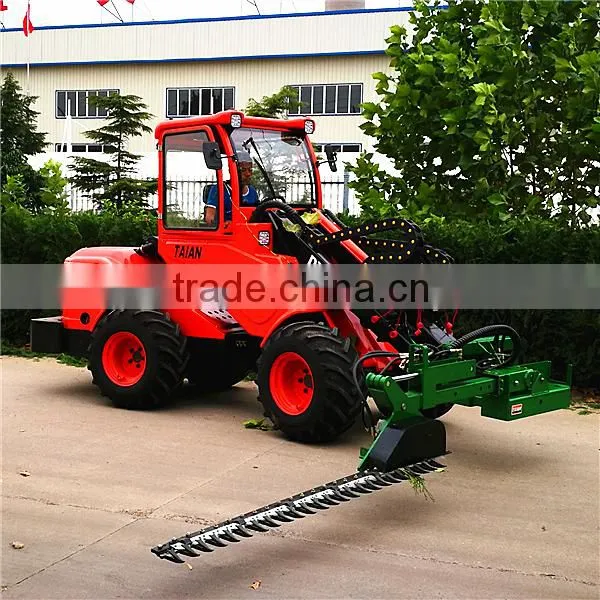

Lawn Tractor Mini Front Loader DY1150 With Hedge Trimmer photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
DY1150
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number DY1150
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3410*1500*2330mm
Rated Load 1600kg
Certification CE, FOPS ROPS, EPA
Warranty one year or 1000 working hours
After-sales Service Provided Overseas third-party support available

lawn tractor mini front loader DY1150 with hedge trimmer

Features

mini front loader

1.Different engines available, chinese or oversea brands.

2.Standard quick hitch system

3.Wide view cabin with interior, modern control board and suspension seat makes the operation comfortable and enjoyable

4.Low vibration and noise

5.Different type of transmission system available

6.Rear hydraulic output optional

Advantage

mini front loader

1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.

2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.

3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.

4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.

Main components

mini front loader

Engine:Kubota/Perkins/Kohler

Hydraulic pump:Hansa TMP

Hydraulic valve:Hydro Control

Seals:Germany B + S

Technical data

Model

DY1150

Max. length

3410 mm

Max. width

1500 mm

Max. height

2350 mm

Max. reach(boom extended)

3540mm

Max. reach(boom retracted)

2910mm

Bucket capacity

600L

Rated loading capacity

1600kg

Tipping load

2600kg

Min. turning radius

2818mm

Ground clearance

330mm

Turning angle

450

Speed

16.5 km/h

Weight

2010 kg

Standard tire

31X15.5-15

Tire pressure

2.8 bar

Oil tank capacity

70L

Pressure

200bar

Working oil flow

82L/min

Tracking oil flow

117L/min

Oil model(mineral oil)

L-HL46

Engine brand

Perkins 404D-22

Number of cylinder

4

Cooling system

Water cooling

Rated power

36.5 Kw

Rotation speed

2600 r/min

Fuel tank capacity

32L

Battery capacity

70Ah

Voltage

12v

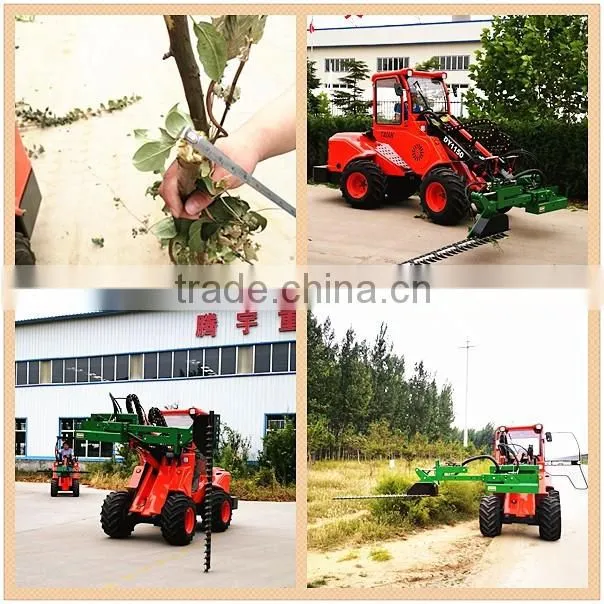

Pictures

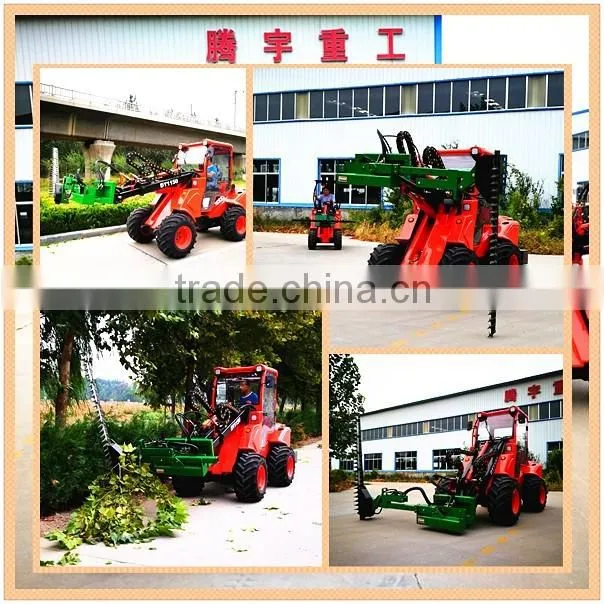

 lawn tractor mini front loader DY1150 with hedge trimmerlawn tractor mini front loader DY1150 with hedge trimmer

Our Services

1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

3.The repairation or replacement for the parts should not exceed the warranty period.

4.The warranty is valid on the condition of all the terms listed in the contract was observed.

If you are interested in this machine and need a quotation, Please contact with: Steven.
