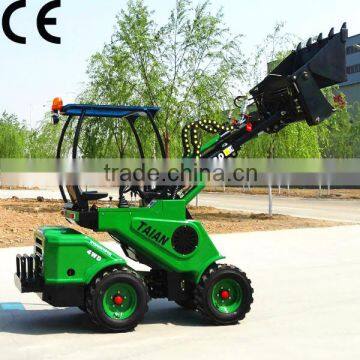

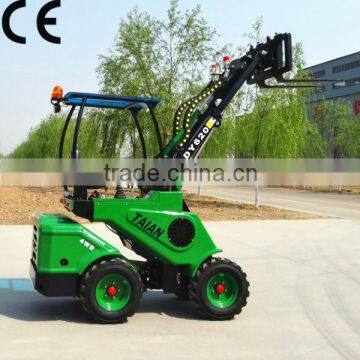

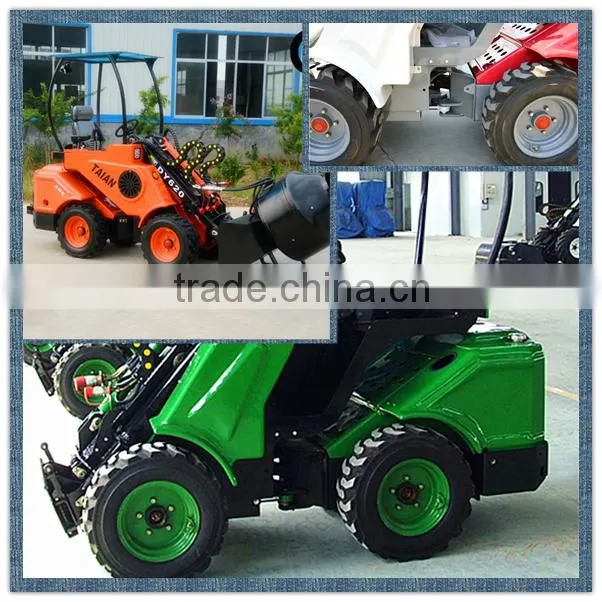

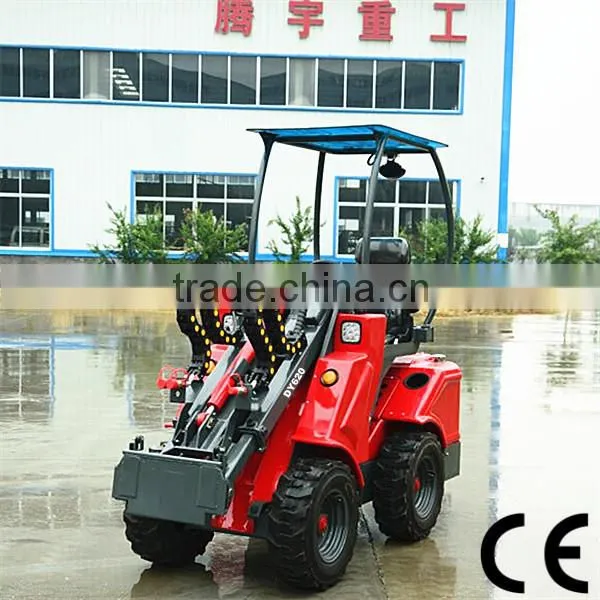

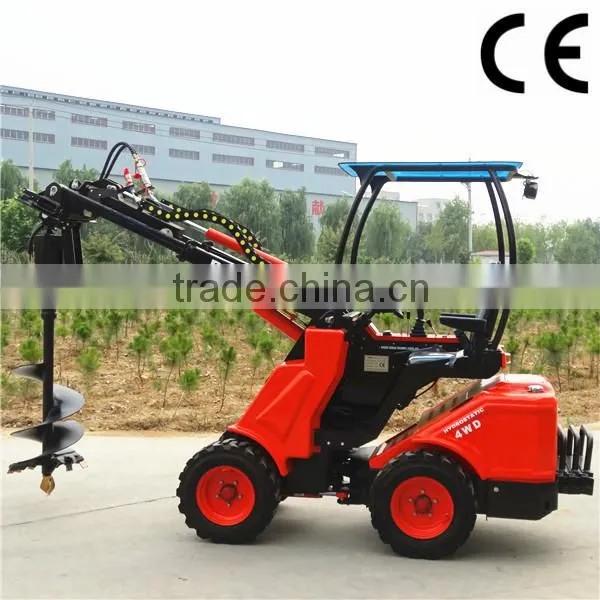

multifunction garden loader DY620 small wheel loader similar with mini avant loader :
Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
Advantages:
1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.

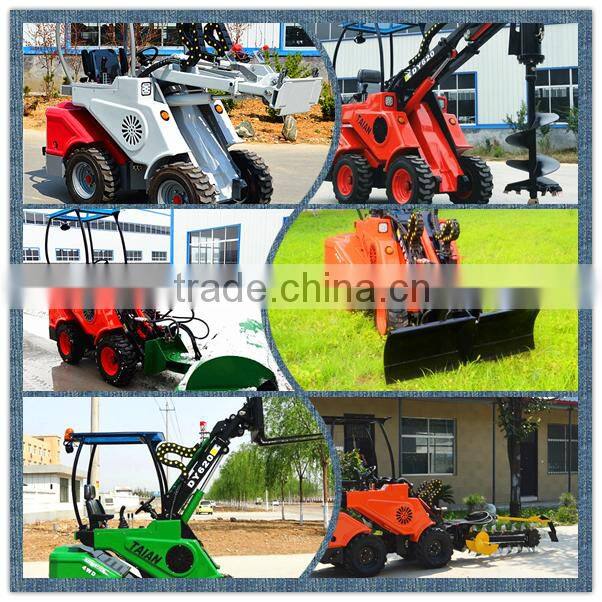

2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.
3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.
4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.
Features:
1.Compact design

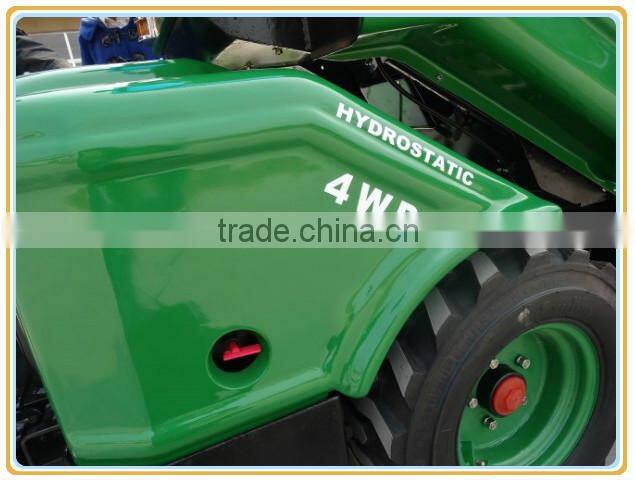

2.Hydrostatic four wheel drive

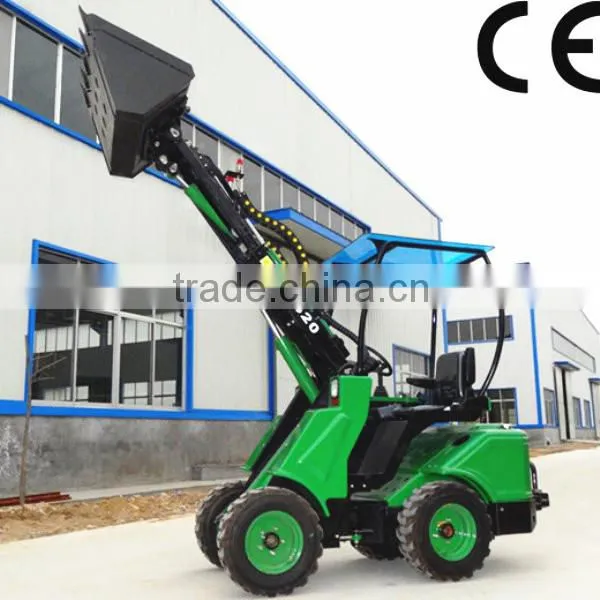

3.Telescopic boom
4.Self levering.
5.Differential lock.
6.Boom floating
7.European standard quick coupling plate
8.Front articulated structure makes the turning radius much smaller.
The specification is as listed below:
Model | DY620 | |
Max. length | 2195 mm | |
Max. width | 980 mm | |
Max. height | 2150 mm | |
Max. reach(boom extended) | 2750mm | |
Max. reach(boom retracted) | 2480mm | |
Bucket capacity | 300L | |
Rated loading capacity | 500kg-800kg | |
Min. turning radius | 1980mm | |
Turning angle | 400 | |
Speed | 10 km/h | |
Weight | 1100 kg | |
Standard tire | 23X8.5-12 | |
Tire pressure | 2.8 bar | |
Oil tank capacity | 35L | |
Pressure | 190bar | |
Working oil flow | 33L/min | |
Tracking oil flow | 50L/min | |
Oil model(mineral oil) | L-HL46 | |
Engine Brand | Yanmar 3TNV82A | |
Number of cylinder | 3 | |
Cooling system | Water cooled | |
Rated power | 22.2KW | |
Rotation speed | 2800rpm | |
OPTIONS ENGINE | ||
1 | Engine Brand | Changchai 3M78 |
Standard | Euro III | |
Number of cylinder | 3 | |
Cooling system | Water cooled | |
Rated power | 16KW | |
Rotation speed | 3000r/min | |
2 | Engine brand | Perkins 403D-11 |
Standard | EU stage IIIA, EPA tier 3 standard | |
Number of cylinder | 3 cylinders | |
Cooling system | water cooled. | |
Rated power | 18.4KW | |
Rotation speed | 2800rpm | |
welcome to visit our factory!!
