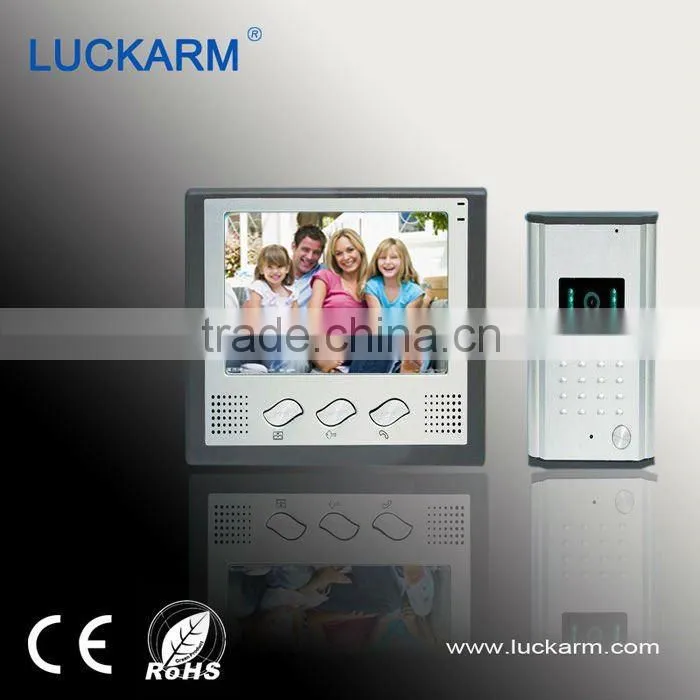

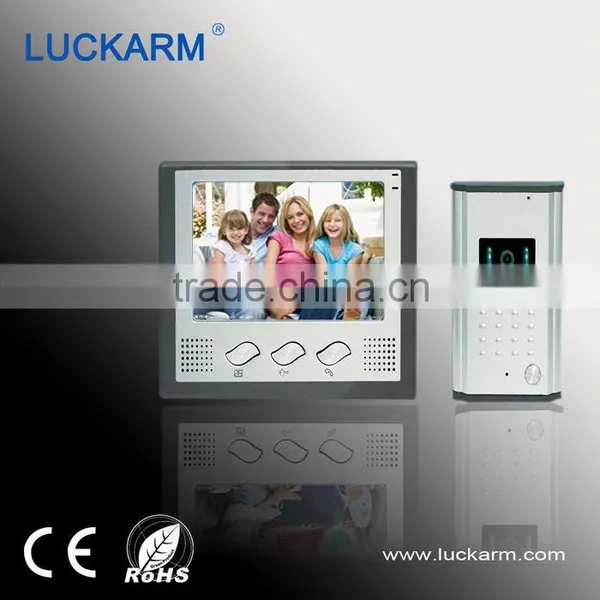

Help Center7" TFT Video Door Phone Intercom-061
Related Products
-
Intelligent GSM Remote Control Light Switch -T923AUS$ 4.5 - 5.5MOQ: 1500 Sets -
4 Inch Video Door Phone Intercom Systeom Manufacturer in China-0682US$ 65 - 75MOQ: 300 Sets
-
China Wireless Doorbell With 1 Switch RC and Twin Chimes-7610US$ 4.6 - 5.6MOQ: 3000 Sets
-
315MHz/434MHz Remote Control Switch Wireless Doorbell-8620US$ 2.5 - 3.5MOQ: 3000 Sets
-
Mechinal Ding Dong Striking Eletric Doorbell -ZY4US$ 0.8 - 0.85MOQ: 3000 Boxes
Features :
1. Aluminum alloy panel of indoor unit,brand-new,elegant and fashionable.
2. Guard against disassembly,anti-hit,waterproof,wearable zinc alloy outdoor station.
3. 7"TFT,nonradiative,energy saving and high definition picture and wide view.
4. Hand free intercommunication.
5. Unlock electric lock.
6. Monitor outside 13 piece melodies for choice.
7. Volume, chroma and brightness could be adjusted.
8. Supply one transformer and 15M cable for connection.
9. The color video door phone is easy to install.
Parameter |
Specifications |
Unit |
Screen Size |
7.0(16:9) diagonal) |
Inch |
Display Format |
1440(H)X234(V) |
dot |
Active Area |
154.08(H)X86.58(V) |
mm |
Dot Pitch |
0.107(H)X0.370(V) |
mm |
Pixel Configuration |
Stripe |
|
Outline Dimension |
166.0(w)X100.0(H)X7.2(D)(typ.) |
mm |
Outdoor unit of Video Door Phone:
- Distance of infrared radiation shall be not less than 4 meters.
- Plus control: auto
- Working temperature: -10C-50C
- Resolution: shall be not less than 380 lines.
- Size of outdoor station: 98(W)X173(H)X31(D)mm
Indoor unit of Video Door Phone:
- Input voltage: AC110-120V/60Hz or AC220-240V/50Hz
- Talk time delay:1 20s+10%
- Monitor time delay: 40s+10%
- Working distance: 50M(6X0.65mm2)
- Visual angle: 78 Wide-angle
- Working temperature: -5C-40C
- Relative humidity: 10%-90%(RH)
- Screen size: 7.0 inch (16:9)diagonal
- Outline Dimension: 166(W)X100(H)X7.2(D)mm
Installation method for Indoor unit :
1) Fasten the bracket on the wall with screws.
2) Hang the unit on the bracket after finishing the connection. Plug the enclosed adaptor into the sockets of AC power.
Installation method for Outdoor unit :
1. Take off the screws on the bottom and remove the front cover.
2. This kind video door phone only one to one model
3. 1.4m-1.7m from the ground (according to the camera effect).avoid direct sunshine.
4. Fix the unit on the wall with screws(included)
5. Cover the aluminium alloy panel and tighten up the screws one the bottom.

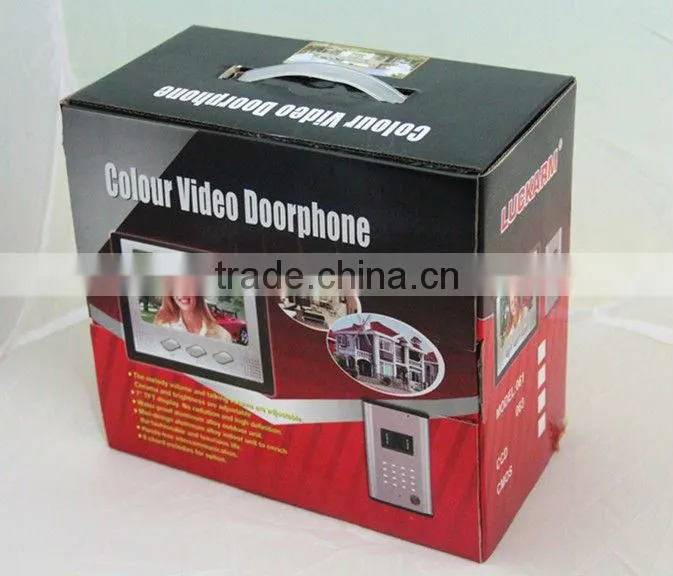

Unit Packing for product:
Accessories Includes:
- Indoor doorphone with bracket
- Outdoor station with rain cover
- Power adaptor
- 15m cable
- Screws
About our superiority:
We can design and produce various patterns as per customers' requirements.
Best service, high quality, competitive price, timely delivery.
If you are interested in our products or want to know more , PLS feel free to contact us at any time or visit our website Looking forward to your enquiry.
