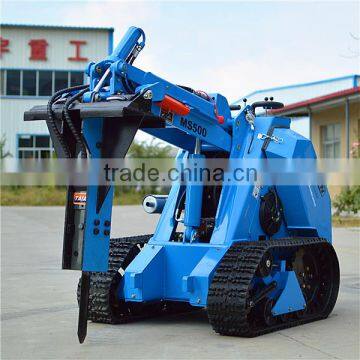

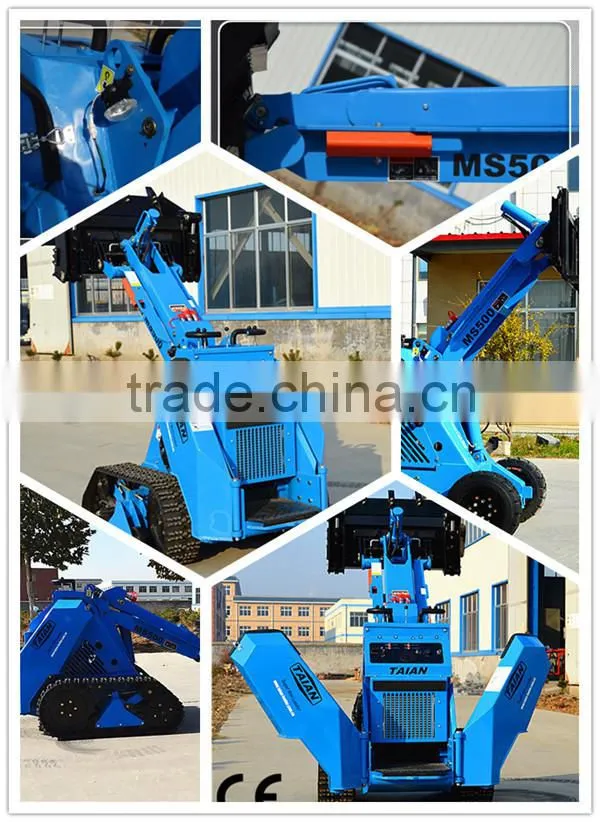

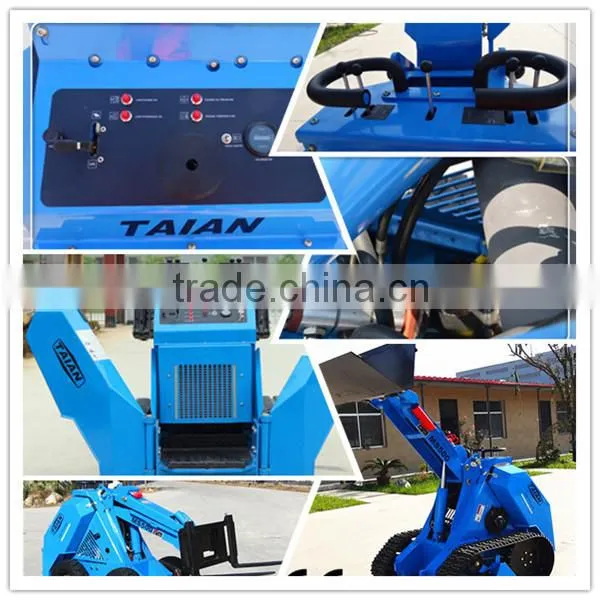

backhoe loaders MS500 mini backhoe for sale
1.Compared with other similar size machine, our MS500 is super powerful with 500kg lifting capacity.
2.We adopted water cooled gasoline engine which has much better cooling efficient, and for such compact machine this is very significant.
3.The unique rotatable oil tank design makes the maintenance much more easier and touchable.
4.The self levering feature also makes it stand out from other mini skids.
5.Different type/brand engines, wheel/track type available, offer many choices to customers
Model |
MS500 backhoe loader |
Moving type |
Crawler or Wheel |
Max. Length (without bucket) |
1760 mm |
Max. width |
1100 mm |
Max. height |
1295 mm |
Speed |
5km/h |
Rated loading capacity |
500kg (including attachment) |
Tipping load |
1040kg |
Max. reach |
1800mm |
Pushing power |
8.2KN |
Weight (without attachment) |
1050kg |
Hydraulic oil flow |
30L/min |
Track oil flow |
46L/min |
Oil tank capacity |
38L |
Oil mode |
L-HL46 |
Gasoline oil capacity |
28L/min |
Battery capacity |
45Ah |
Voltage |
12v |
Wheel size |
6.50-10 |
Inflation pressure |
790kpa |
Engine |
Kohler CH752, 23HP |
Engine type |
Gasoline, 2 cylinder, air cooled |
Rotation speed |
3600r/min |
Optional Chinese Diesel Engine 1 | |
Engine model |
Changchai 3M78, 21.76HP |
Engine type |
Diesel, 3 cylinders, water cooled
|
Engine speed |
3000r/min |
Machine Size(LxWxH/mm) without bucket |
1910mmx1150mmx1345mm |
Weight (without attachment) |
1240KG |
Optional Imported Diesel Engine 2 | |
Engine model |
Yanmar 3TNV76 |
Engine Power |
25HP |
Rotation speed |
2800r/min |
Engine type |
Diesel, 3 cylinders, water cooled |
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.

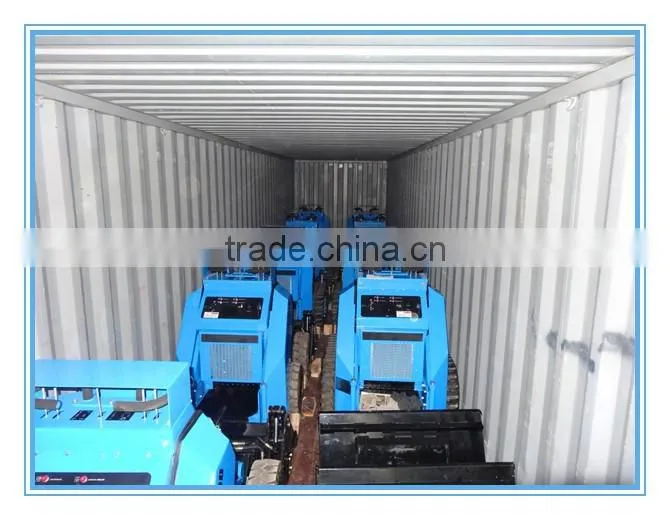

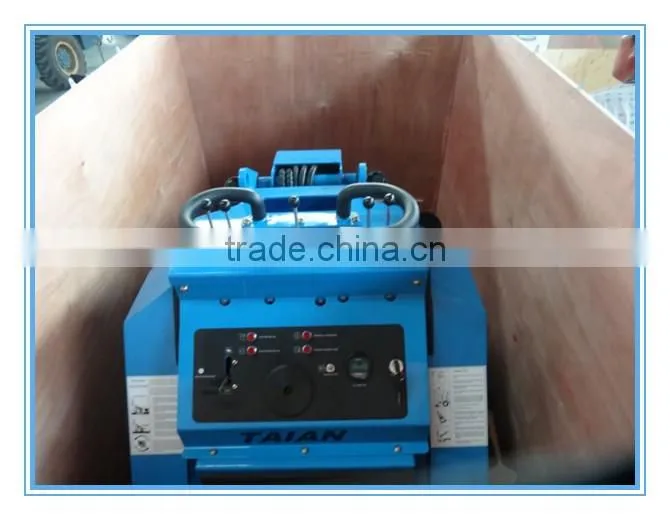

Demo sample 1 set by plywood box shipped by LCL.
Bulk purchase: 6sets/20'GP; 12sets/40'GP
