New ce Front Loader Mini Garden Loader

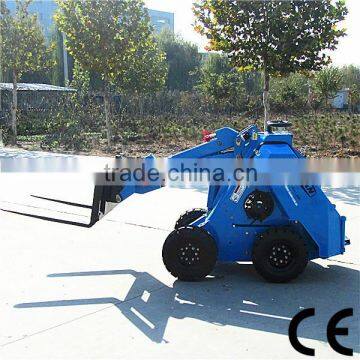

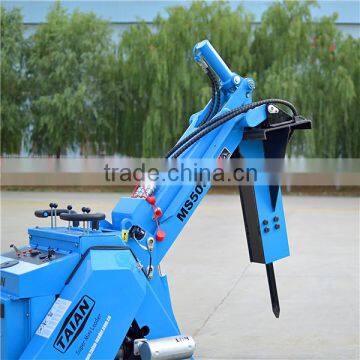

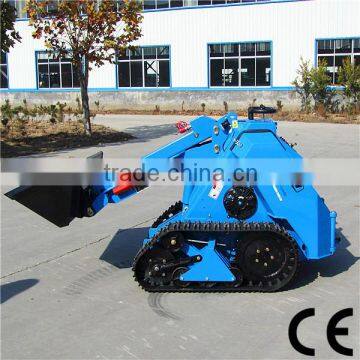

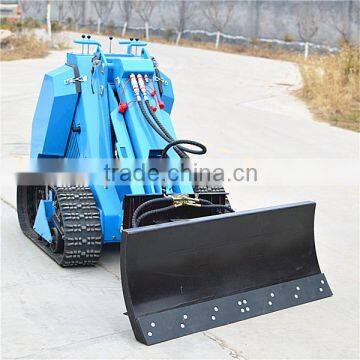

New ce Front Loader Mini Garden Loader photo-1
New ce Front Loader Mini Garden Loader photo-2
New ce Front Loader Mini Garden Loader photo-3
New ce Front Loader Mini Garden Loader photo-4
New ce Front Loader Mini Garden Loader photo-5
New ce Front Loader Mini Garden Loader photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
MS500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number MS500
Place of Origin Shandong, China
Type Front Loader
Moving Type Crawler Loader
Dimension(Long * Breadth * High) 1760X1100X1295mm
Rated Load 520kgs
Certification CE, EPA
Warranty one year or 1000 working hours
After-sales Service Provided Engineers available to service machinery overseas

new ce front loader mini garden loader

Applications

mini garden loader

The skid steer MS500 series turns on the spot and is therefore very useful in tight situations where space is limited. Thanks to the robust and uncomplicated design MS500 is a very strong machine and also an economical choice for jobs where a skid steer loader is at its best: on hard surfaces. For soft grounds and paved areas the articulated MS500 models are a better choice.

Also for MS500 series there is a wide range of options available. For instance the telescopic boom is a very useful option which gives more lift height and outreach – that means more flexibility for load handling.

Maintenance

mini garden loader

1. The engine cover can be opened by your hands

2. Rotating warning light on top.

3. Sound alarm system

4. Pressure testing connector on the chassis

Specifications

Model

MS500

Moving type

Track or Wheel

Max. Length (without bucket)

1760 mm

Max. width

1100 mm

Max. height

1295 mm

Speed

5km/h

Rated loading capacity

520kg (including attachment)

Tipping load

1040kg

Max. reach

1800mm

Tyre

6.50-10

Tyre pressure

790Mpa

Pushing power

8.2KN

Weight (without attachment)

900kg (Wheel type)

1005kgs (Track type)

Hydraulic oil flow

30L/min

Track oil flow

46L/min

Oil tank capacity

38L

Oil mode

L-HL46

Gasoline oil capacity

28L/min

Battery capacity

45Ah

Voltage

12v

Engine

Kohler CH752, 27HP

Engine type

Gasoline, 2 cylinder, Air cooling

Rotation speed

3600r/min

Optional Chinese Diesel Engine

Engine model

Changchai 3M78,  21.76HP

Engine type

Diesel, 3 cylinders, water cooled

Engine speed

3000r/min

Machine Size(LxWxH/mm) without bucket

1910mmx1150mmx1345mm

Weight (without attachment)

1240KG

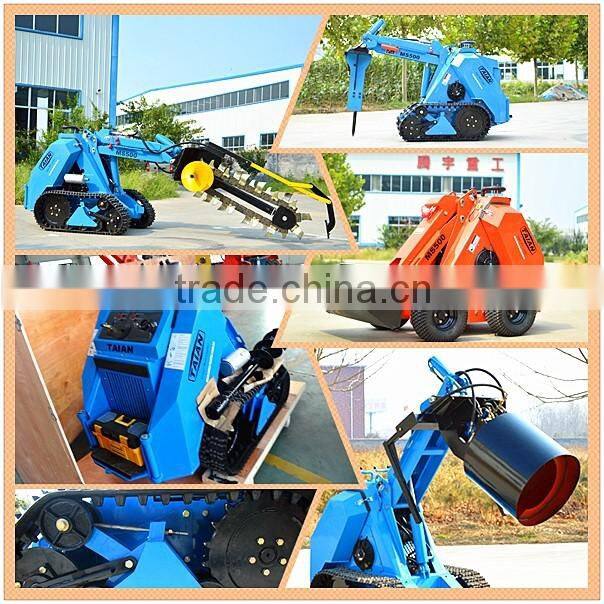

Pictures

 new ce front loader mini garden loadernew ce front loader mini garden loader

Certifications

 new ce front loader mini garden loader

Our Services

1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

3.The repairation or replacement for the parts should not exceed the warranty period.

4.The warranty is valid on the condition of all the terms listed in the contract was observed.

If you are interested in this machine and need a quotation, Please contact with: Steven.
