Villa Video Door Phone LRK-061
Features:

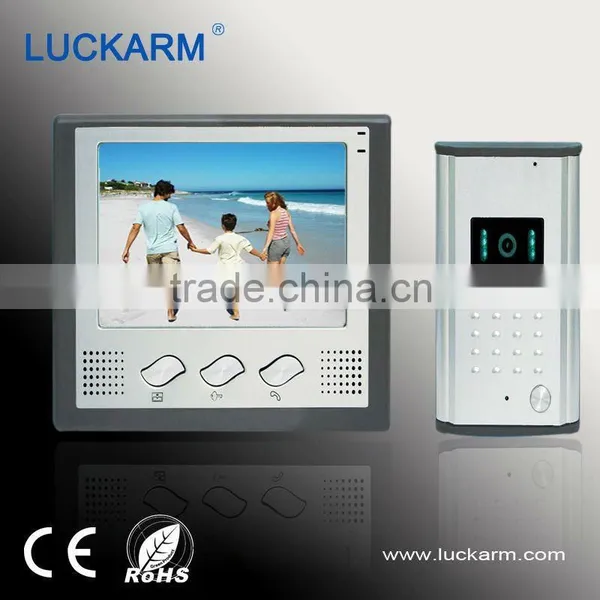

1. The device including a 7”TFT (16:9) indoor monitor and a luxury outdoor station
2. It is easy installation by 4 wires between the monitor and outdoor unit.
3. The Hand frees communication and intercom is nonradioactive, energy saving.
4. The indoor monitor door release function or outdoor camera door release function.
5. Color 380 TVL CCD camera with clear picture and 4 meters IR distance which ensure a good image in night.
6. High definition picture and talking volume adjustable.
7. Talking time lasting 120 seconds. Monitoring time lasting 40 seconds.
8. Power source: AC 110V-240V, DC 15V.
9. Indoor monitor panel: Aluminum alloy.
10. Outdoor station IP44 water proof standard.
11. Long distance up to 50 meters (4X0.65mm2), and wide view up to 78 degree.
12. Eight melodies for choice.
13. Working temperature;-25-45C
14.Size:outdoor station is 98(W)X173(H)X31(D)mm Outline Dimension:166(W)X100(H)X7.2(D)mm
15. Relative humidity:10%-90%(RH)
16. Attached 15M wire inside the gift box
Performance data
Input voltage:AC110-120V/60Hz or AC110V-240V 50/60Hz
Output voltage: AC15V(Connection 1)
Output voltage: DC18V(Connection 2)
Output current: 1400mA
Talk time delay:120S±10%
Monitor time delay:40S±10%
Working distance: 50M(6X0.65mm2)
Dissipation: stand-by <0.5W working < 10W
Intensity of illumination: 0.5LUX
Visual angle: 78 Wide-angle
Working temperature: -25-45°C
Relative humidity:10%-90%(RH)
Installation
A.Indoor unit
1) Fasten the bracket on the wall with screws.
2) Hang the unit on the bracket after finishing the connection. Plug the enclosed adaptor into the sockets of AC power.
B.Outdoor unit
- Take off the screws on the bottom and remove the front cover.
- This kind video door phone only one to one model
- 1.4m-1.7m from the ground (according to the camera effect).avoid direct sunshine.
- Fix the unit on the wall with screws(included)
- Cover the aluminium alloy panel and tighten up the screws one the bottom.
Operation instruction
l For best performance, please take off the safety film.begin with the red arrow at the top right corner of screen.
l Indoor unit would ring and show the picture of visitor,when someone presses the outdoor button.
l Press the TALK button and then the host could communicate with visitor for 120 seconds at a time.
l The electric lock will be unlocked when host presses UNLOCK button in indoor unit.
l Press the MONITOR button,and the host could monitor outside for 40seconds at a time.
l Brightness,chroma and volume could be adjusted in indoor unit to better effect.
Eight melodies for choice.
Carton |
Pcs/Carton |
G.W(Kg) |
N.W(Kg) |
MOQ |
Certificate |
0.045CBM |
6 |
14.5 |
13.5 |
100 |
CE |
About our superiority:
We own advanced facilities,certain scaled factory and under a professional team with wonderful technique.
Best service, highest quality, factory price, timely delivery.
LUCKARM company
LUCKARM is here
Best regards,
Mike Zhang
Jinhua Luckarm Electric Co., Ltd.
Add: Caozhai Industrial Area Jinhua City,
Zhejiang, China 322200
Tel: 86-579-85238368 ext 805
Moblie:86-15888998236
