Factory Price Piling Machine For Sales
piling machine

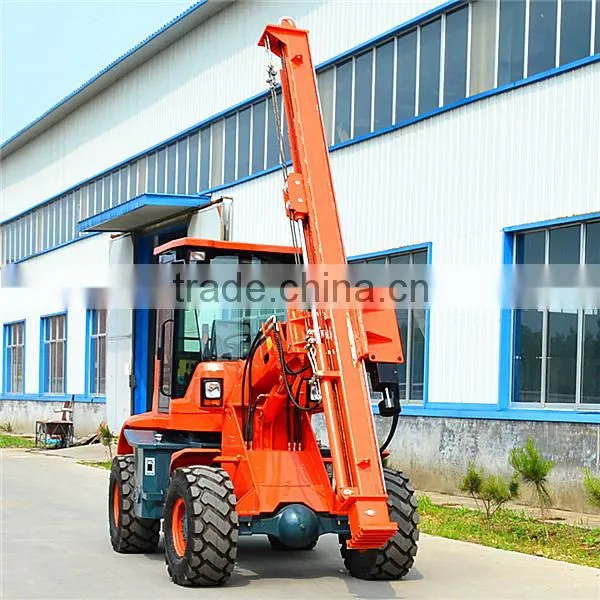

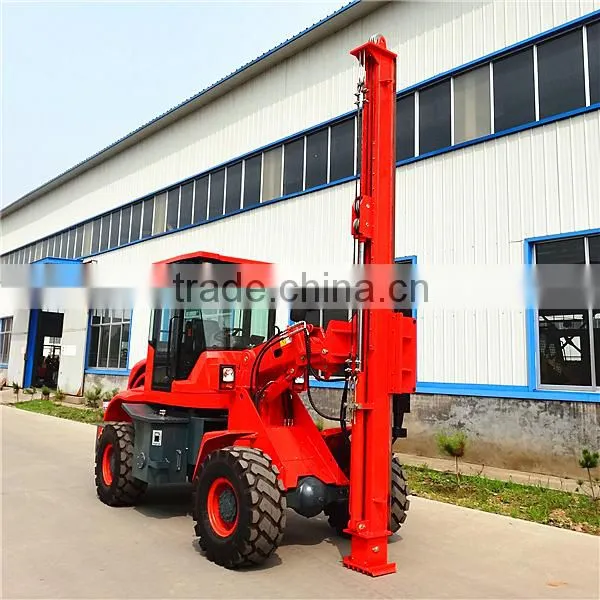

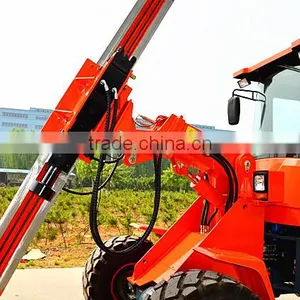

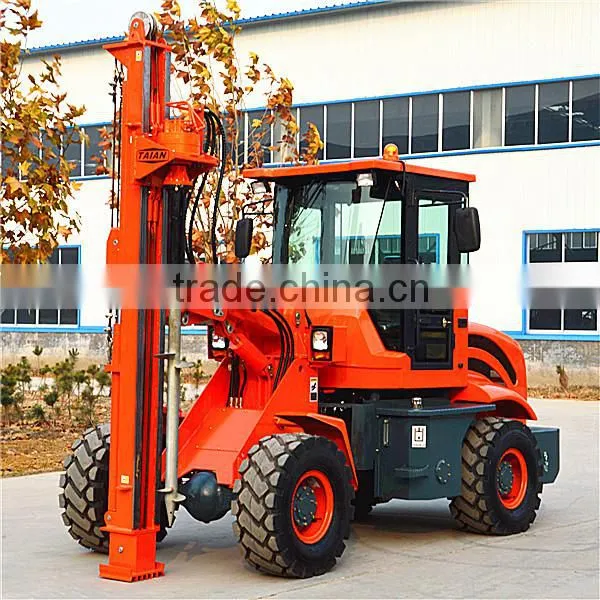

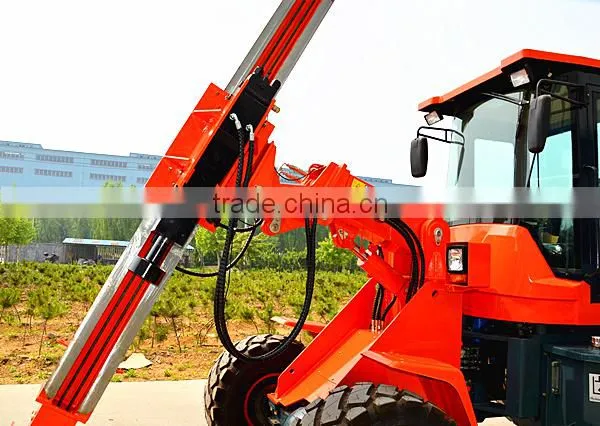

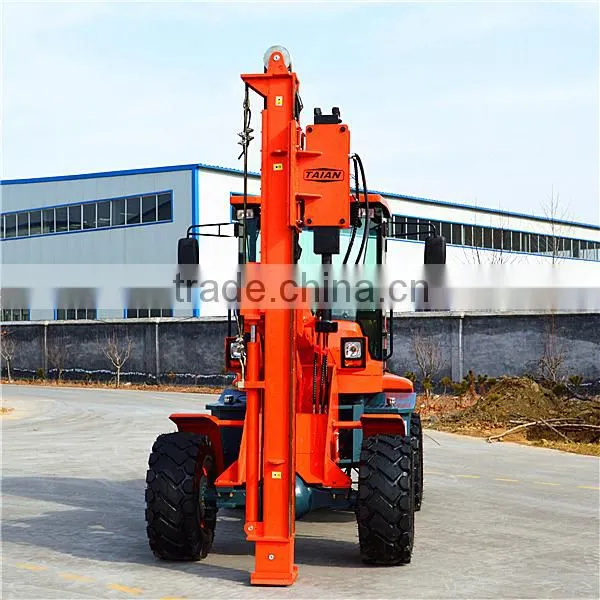

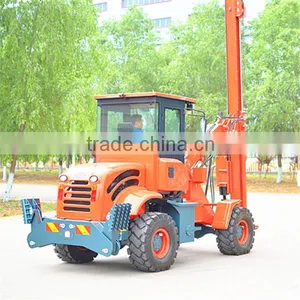

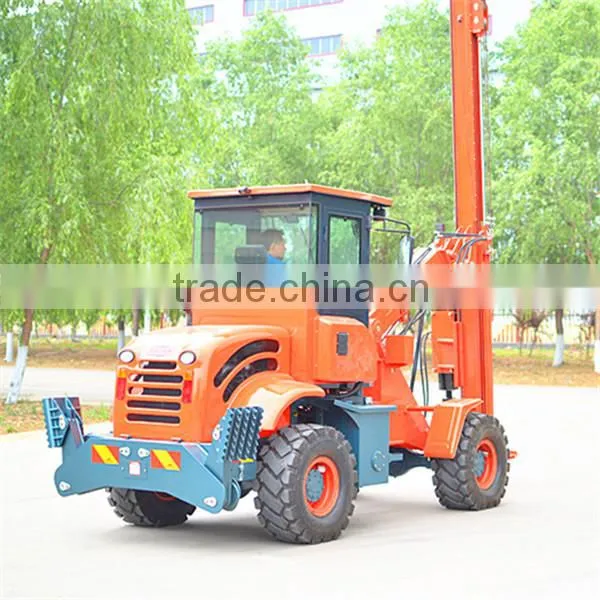

PD2000 self-propelled hydraulic pile driver is a kind of pile construction machinery.
The ground hole drilling machines is flexibility, convenience ans strong adaptability, could be operated safety and comfort.
The electric driver is a kind of spiral pile drilling equipment with independent innovation, which is broadly applied in pile construction for billboards, fixed umbrella, street lamp, solar panels, fences, flagpoles, traffic signs etc.
piling machine
1.Four wheel drive, easy and smart to operate
2.Large torque motor, with strong power
3.Joystick control, Easily operation
4.Optional different screw driving unit, which could meet a variety of customer needs in different screws.
5.Wide view cabin, which facilitate the operator to observe the working environment
6.Equipped with a inclinometer, to facilitate the operator’s adjustment;
7.Equipped with high-low speed gear shift, improve work efficiency;
8.Unique and new design based on the wheel loader, easy to operate and maintenance is simple and convenient
9.Optional electrical gear shift with combined joystick, and electronic inclinometer, which can meet customer’s different needs.
10.Widely applied in pile solar system, street lights, all kinds of awning etc.
Model |
PD2000 |
|
Overall length |
5100mm |
|
Overall width |
1900mm |
|
Overall height |
2700mm (to top of the cabin) |
|
Weight |
4650kg |
|
Engine |
Chinese Yunnei 4102, 80hp, diesel engine |
|
Walking speed |
18km/h |
|
Wheelbase |
1520mm |
|
Standard tire |
20.5-16 |
|
Hydraulic oil flow |
96L/min for working |
|
48L/min for supporting leg | ||
Fuel tank capacity |
100L |
|
Working pressure |
18Mpa |
|
Torque of Motor (When 25Mpa) |
5000N.m |
|
Max. Rod Diameter |
250mm |
|
Mast adjustable range |
Front & Rear |
±10 Degree |
Left & Right |
±8 Degree |
|
Impact rate (Hammer mode) |
500-900bpm |
|
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
