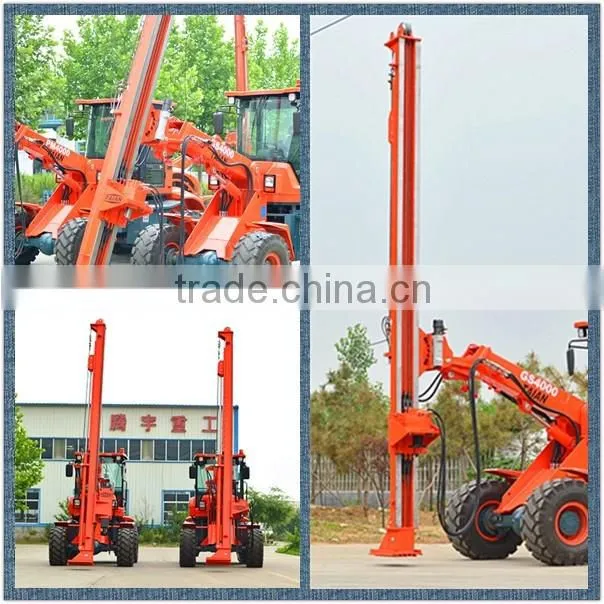

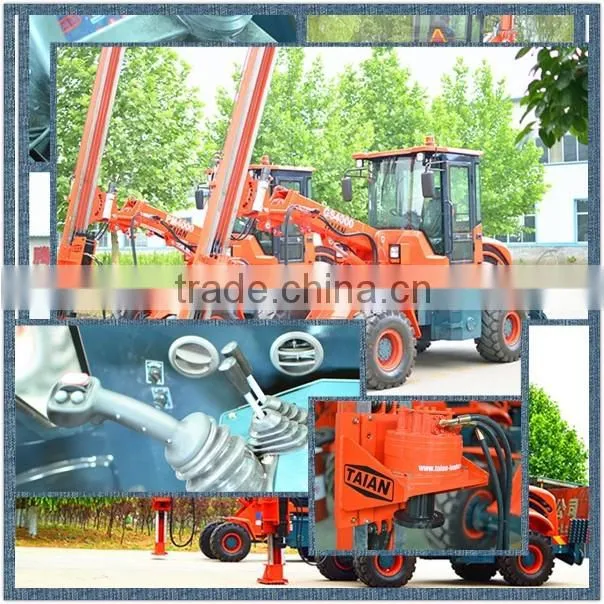

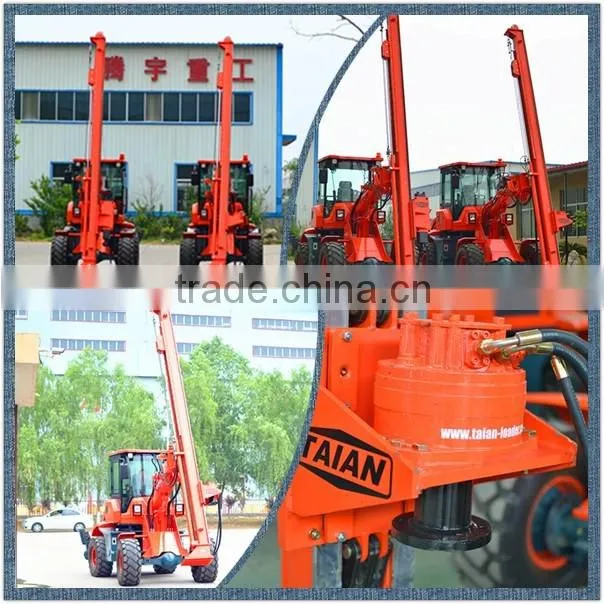

double head hydraulic pile driver, screw/sheet pile driver for sale
double head hydraulic pile driver
1.Four wheel drive, easy and smart to operate
2.strong power
3.Joystick control, Easily operation
4.Optional different driving unit, which could meet a variety of customer needs in different screws.
5.Wide view cabin, which facilitate the operator to observe the working environment
double head hydraulic pile driver
1. It has two different kinds of driving unit, one is for ground screws which is turning type, another one is for ground posts which likes hammer. With these two driving units can suits different working requirement.
2. Rock breaker is available as an option, can be used for hard, rought terrian.
3. The machine body adopts 4 wheel drive, and two speed, which is smart and increase the efficiency.
4. Machine is equiped with angle guage, which helps the operator adjust the direction in time and guarteen vertical drilling.
5. Besides all the advantages above, compared with other similiar machines, we offer very competitive prices and best service to customers. To achieve biggest purchasing safisfaction is always our persue.
Model |
PD4000 double head hydraulic pile driver |
Max. Length |
4370mm |
Max. width (mm) |
1850mm |
Max. height (mm) |
3450mm |
Turning angle |
320 |
Speed |
17km/h |
Weight |
4660kg |
Standard Tyre |
20.5-16 |
Tyre pressure bar |
2.8 bar |
Oil tank capacity |
40 L |
System pressure |
190bar |
Rod diameter |
76-90 mm |
Max. Drilling depth |
4000mm |
Oil model |
L-HL46 |
Engine |
Yunnei 4102 |
Cooling system |
Water cooled |
Rated power |
60kw |
Rotating speed |
2400 r/min |
Fuel tank capacity |
40 L |
Battery |
105AhX2 |
Voltage |
24 V |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
