Specifications

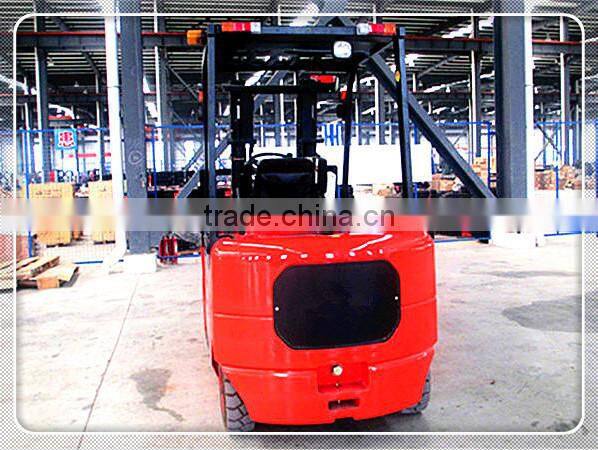

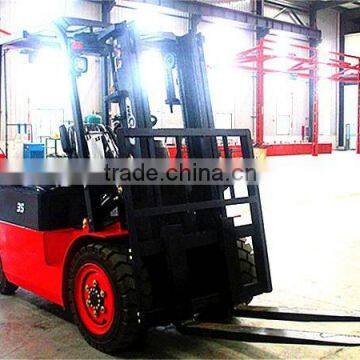

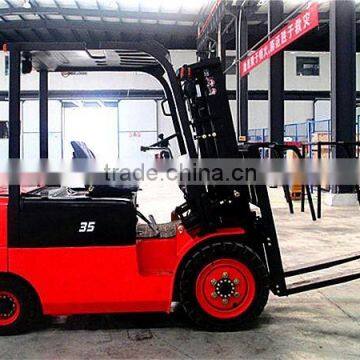

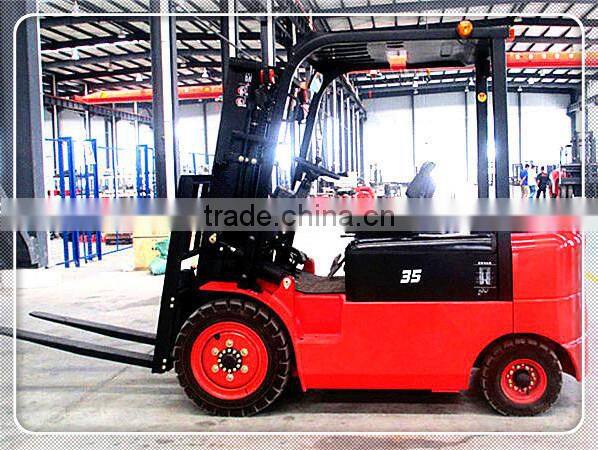

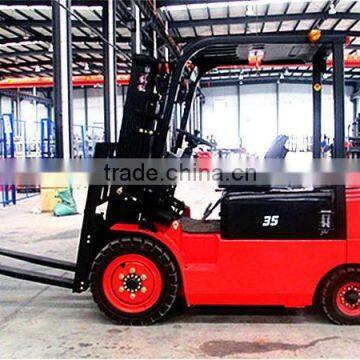

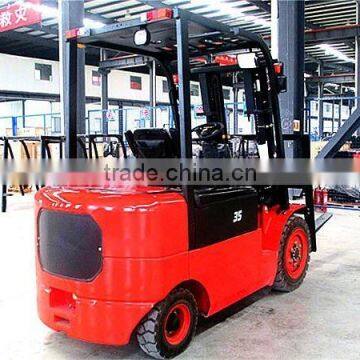

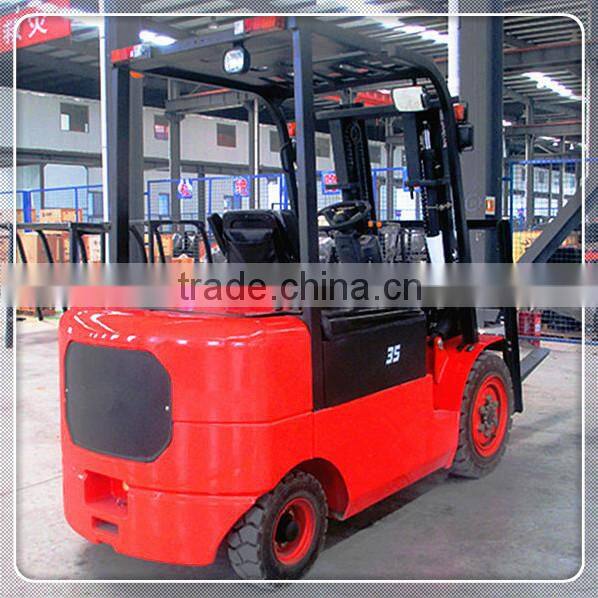

tractor forklift FR35 forklift 4wd:a,Mini forklift for narrow and small space
b,Low center of gravity,small turning radius
3.5ton electric forklift truck FR35 Specifications:
MODEL | FR35 | |
Load capacity | 3500 kg | |
Load center | 500 mm | |
Power type | Battery | |
Max. lifting speeds(with load) | 285 mm/s | |
Max. driving speeds(with/without load) | 13.5/15 km/h | |
Max towering (with load) | 13 kn | |
Grade ability(with load) | 15% | |
Lifting height | 3000 mm | |
Free lift | 75 mm | |
Tilting angles(forward-backward) | 6°/12° | |
Min. turning radius | 2400 mm | |
Min. Right angle aisle width | 3900 mm | |
Min. under-clearance | 140 mm | |
Dimensions | Overall length(including fork) | 3745 mm |
Overall width | 1240 mm | |
Overall height(mast lowered) | 2200 mm | |
Overall height(mast extended) | 4260 mm | |
Overall height to overhead guard | 2200 mm | |
Fork width | 125 mm | |
Fork thickness | 50 mm | |
Fork length | 1220 mm | |
Fork overhang | 495 mm | |
Wheel base | 1700 mm | |
Tread | Front tread | 1000 mm |
Rear tread | 980 mm | |
Tire | Front tire | 28×9-15 |
Rear tire | 18×7-8 | |
Total weight | 5160 kg | |
Motor | Traction motor | XQ-10-1C |
Lifting motor | XQD-13-3S | |
Battery | Battery type | 40-DA-500 |
Battery voltage/capacity | 80V/500Ah | |
