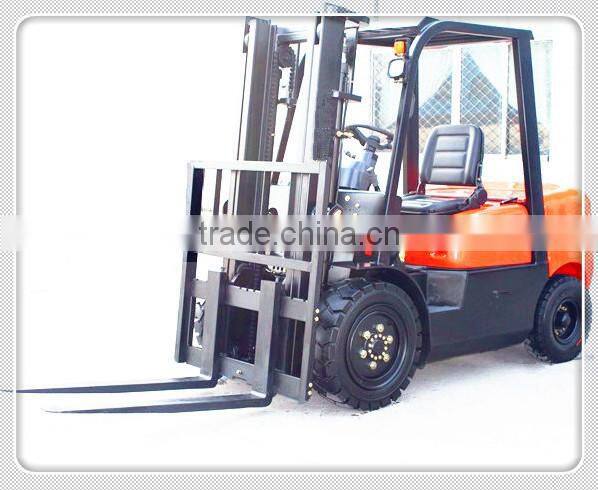

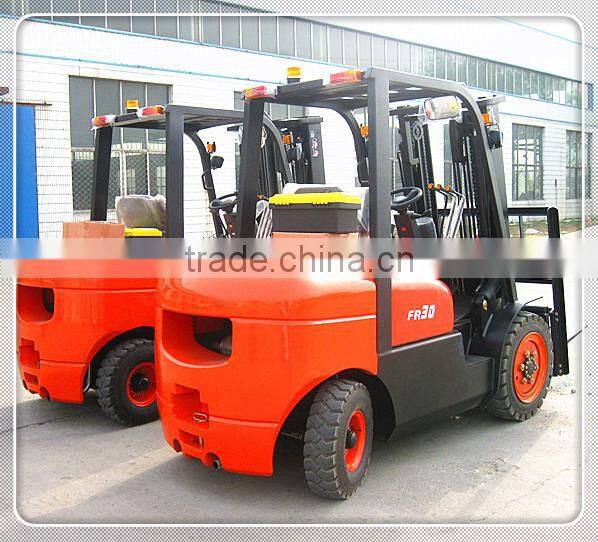

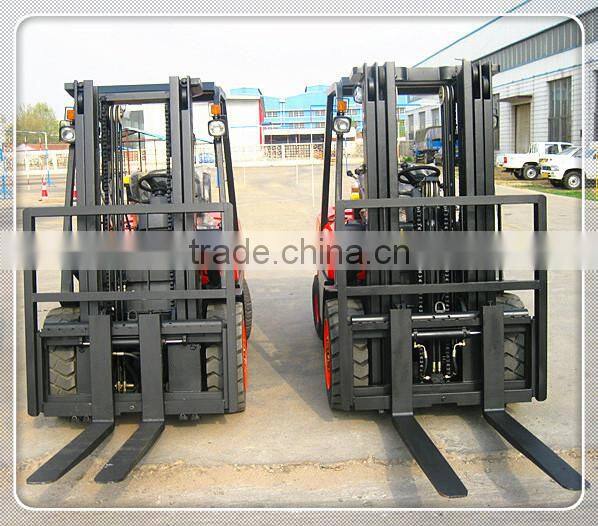

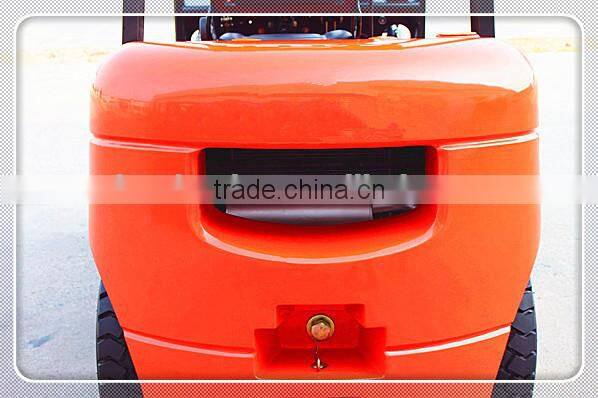

3 Ton Forklift Truck Diesel Hydraulic Wheel Machinery

MODEL

CPCD30FR

Load capacity

3000 kg

Load center

500 mm

Power type

Diesel

Max. lifting speeds(with load)

400 mm/s

Max. driving speeds(with/without load)

18/20 km/h

Max towering (with load)

15.5/10.5 kn

Grade ability(with load)

15/20 %

Lifting height

3000 mm

Free lift

80 mm

Tilting angles(forward-backward)

6°/12°

Min. turning radius

2500 mm

Min. Right angle aisle width

2110 mm

Min. under-clearance

135 mm

Dimensions

Overall length(including fork)

3800 mm

Overall width

1230 mm

Overall height(mast lowered)

2110 mm

Overall height(mast extended)

4270 mm

Overall height to overhead guard

2110 mm

Fork overhang

465 mm

Wheel base

1700 mm

Tread

Front tread

1000 mm

Rear tread

970 mm

Tire

Front tire

28×9-15

Rear tire

6.50-10

Total weight

4320 kg

Fork width

125 mm

Fork thickness

45 mm

Backrest height

1225 mm

Fork length

1220 mm

Engine

Engine model

490

Rated power

39 kw

Rotate speed at rated power

2650 rpm

Max. Torque

157 nm

Rotate speed at max. Torque

1980 rpm

Type of power shift

Tor-con
