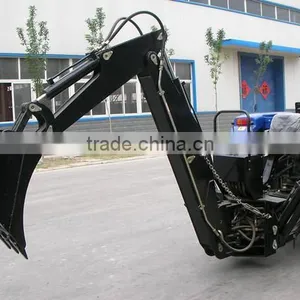

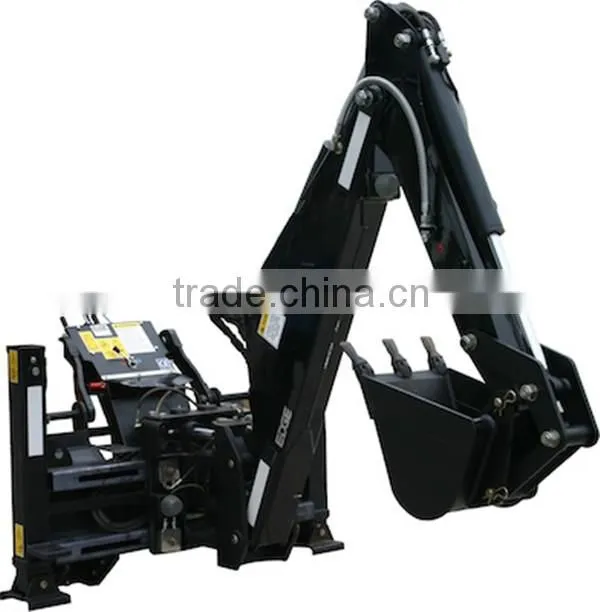

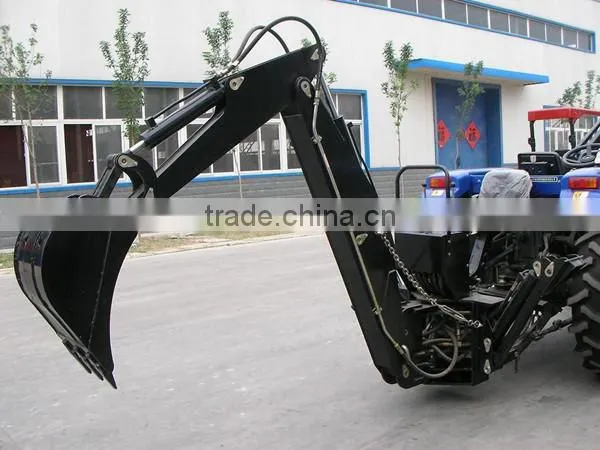

Help CenterHydraulic 3 Point Hitch Towable Backhoe for Tractor
Related Products
Towable backhoe :
1.Brief introduction:
EX030170 backhoe is very compact and amazingly powerful digging units, the ideal for creating irrigation canals. Easy and quick to mount, it is standard equipped with an independent drive seat, in order to grant a better visibility on the digging area, and with a 40 cm bucket.
Backhoe EX030170 is a completely new backhoe model. The new model has many features that are improved. The changes are explained in more detail below.
Boom slewing is executed with two separate cylinders. The new system has less free play when slewing the boom and has less need for servicing. The slewing angle is 168 degrees. Support legs are hydraulically adjustable. The driver can easily adjust the support legs directly from the control valve of the backhoe. This way the best possible support can be easily set up and found every time.
Bucket quick release (manual model) as standard. For fast and easy bucket changes. Ease of operation and especially mounting is further developed. Movement speeds are optimized for DY840 and DY1150 series machines making digging easier. Mounting the backhoe is now a lot easier with tiltable valve bank and new locking mechanism on the boom.
2.Application Field for backhoe:
1.backhoe is used to dig channels, underground tunnels
2.backhoe is widely applied dig the earth to plant in the farmland or gardening.
3.Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America
Model |
EX030170 |
Min. width of the supporting leg (mm) |
1530 |
Working width of the supporting leg (mm) |
2000 |
Max. digging depth (mm) |
2170 |
Max. working height (mm) |
3100 |
Loading height (mm) |
1730 |
Loading distance (mm) |
1520 |
Bucket turning angle |
168° |
Rotation angle |
140° |
Stand bucket capacity (m³) |
0.04 |
Weight (kg) |
600 |
System pressure (Mpa) |
6-16 |
System hydraulic flow (L/min) |
50-65 |
