Help CenterLIFTING CHAIN,bag Hardware Accessory
Negotiable
MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SEAGULL
Model Number:
6mm-32mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LIFTING CHAIN,bajaj Timing ChainNegotiableMOQ: 100 Meters -
LIFTING CHAIN,bagasse Carrier ChainNegotiableMOQ: 100 Meters
-
LIFTING CHAIN,automatic Jewelry Chain Making MachineNegotiableMOQ: 100 Meters
-
LIFTING CHAIN,ball Chain Spool WholesaleNegotiableMOQ: 100 Meters
-
LIFTING CHAIN,ball Chain SpoolNegotiableMOQ: 100 Meters
Place of Origin
Jiangsu, China
Brand Name
SEAGULL
Model Number
6mm-32mm
Material
Alloy
Standard or Nonstandard
Standard

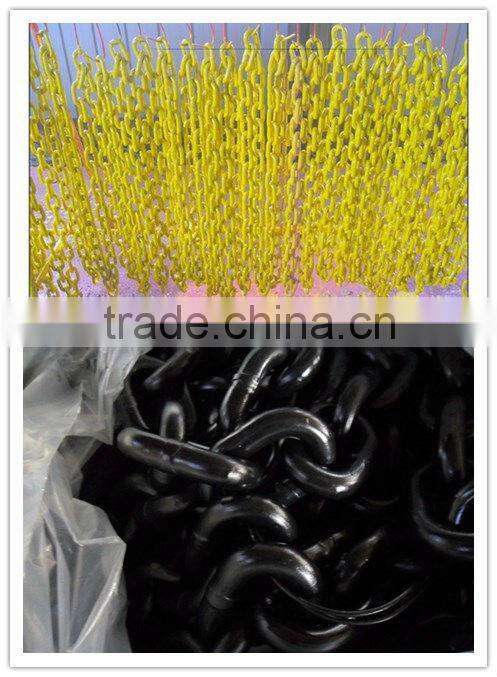

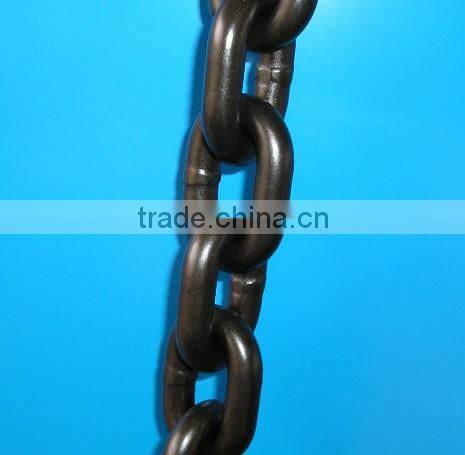

LIFTING CHAIN, bag hardware accessory
Features:
1.Material:alloly steel
2.Surface: self color or others
3.Size: 6mm-32mm
LIFTING CHAIN (EN818-2,DIN5687-80)
| SIZE (mm) | DEVIATION (mm) | PITCH (mm) | DEVIATION | INSIDE WIDTH (mm) | OUTSIDE WIDTH (mm) | WEIGHT (kg/m) | WORKING LOAD (kn) | PROOF LOAD (kn) | BREAK LOAD (kn) | |
| MAX. | MIN. | |||||||||
| 6 | ±0.24 | 18.00 | 18.50 | 17.50 | 7.80 | 22.20 | 0.80 | 11.20 | 28.30 | 45.20 |
| 7 | ±0.28 | 21.00 | 21.80 | 20.40 | 9.10 | 25.90 | 1.10 | 15.00 | 38.50 | 61.60 |
| 8 | ±0.32 | 24.00 | 24.70 | 23.30 | 10.40 | 29.60 | 1.40 | 20.00 | 60.30 | 80.40 |
| 10 | ±0.40 | 30.00 | 30.90 | 29.10 | 13.00 | 37.00 | 2.20 | 31.50 | 78.50 | 126.00 |
| 13 | ±0.52 | 39.00 | 40.20 | 37.80 | 16.90 | 48.10 | 3.80 | 53.00 | 133.00 | 212.00 |
| 16 | ±0.64 | 48.00 | 49.40 | 49.60 | 20.80 | 59.20 | 5.70 | 80.00 | 201.00 | 322.00 |
| 18 | ±0.90 | 54.00 | 55.60 | 52.40 | 23.40 | 66.60 | 7.30 | 100.00 | 254.00 | 407.00 |
| 20 | ±1.00 | 60.00 | 61.80 | 58.20 | 26.00 | 74.00 | 9.00 | 125.00 | 314.00 | 503.00 |
| 22 | ±1.10 | 66.00 | 68.00 | 64.00 | 28.60 | 81.40 | 10.90 | 150.00 | 380.00 | 608.00 |
| 26 | ±1.30 | 92.00 | 92.30 | 91.70 | 33.80 | 96.20 | 15.20 | 212.00 | 531.00 | 849.00 |
LIFTING CHAIN(DIN5687-80)
| SIZE(mm) | PITCH(mm) | INSIDE WIDTH(mm) | WEIGHT (kg/m) | BREAK LOAD(kn) | |||
| DIAMETER | TOLERANCE | PITCH | TOLERANCE | MIN. | MAX. | ||
| 6 | ±0.2 | 18 | ±0.5 | 8.0 | 21.6 | 0.8 | 45.22 |
| 8 | ±0.3 | 24 | ±0.7 | 10.8 | 28.8 | 1.4 | 80.38 |
| 10 | ±0.4 | 30 | ±0.9 | 13.5 | 36.0 | 2.2 | 125.60 |
| 13 | ±0.5 | 39 | ±1.2 | 17.5 | 46.8 | 3.8 | 212.26 |
| 16 | ±0.6 | 48 | ±1.4 | 21.5 | 57.6 | 5.7 | 321.54 |
| 18 | ±0.9 | 54 | ±1.6 | 24.3 | 64.8 | 7.3 | 406.94 |
| 20 | ±1.0 | 60 | ±1.8 | 27.0 | 72.0 | 9.0 | 502.40 |
| 22 | ±1.1 | 66 | ±2.0 | 29.5 | 79.2 | 10.9 | 607.90 |
| 26 | ±1.3 | 92 | ±2.3 | 35.0 | 93.6 | 13.9 | 849.06 |
| 28 | ±1.4 | 108 | ±2.5 | 37.8 | 100.8 | 16.5 | 984.06 |
| 32 | ±1.5 | 116 | ±2.8 | 44.5 | 114.0 | 22.8 | 1280 |

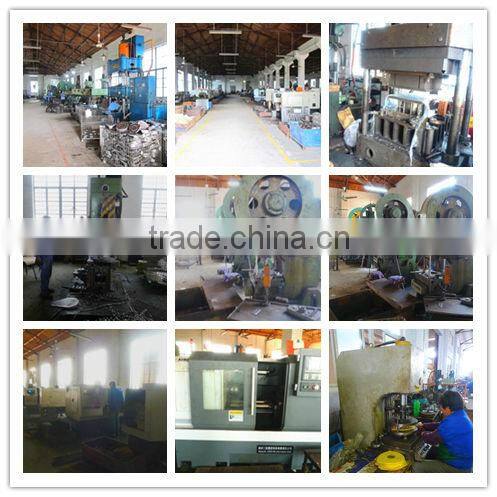

WELCOME TO OUR COMPANY
PRODUCT LINE
CERTIFICATE
THANK YOU FOR YOUR TIME!
YOU ARE WELCOME TO CONTACT US AND VISIT US!
FOR MORE INFORMATION,PLEASE VISIT OUR WEBSITE:
Contact Person:Ms Summy Huang
(Exporting Manager)
TEL:0512-52631331
