customed Conveyor Polyethylene UHMWPE wear-resistant chain guide rail
UHMWPE Chain Guide Track Rail:
UHMW-PE track rails has all the advantages of UHMW-PE, and its good condition made UHMW-PE track in conveyor track, protective curve track, ect. And we have developed many types UHMW-PE track , all available in several grades of UHMW plastic. UHMW chain guides extend chain life, reduce noise and friction. You can order them in standard sizes, or have a custom order.
The canning, packing and bottling industries often utilize our conveyor components for their ease of use,
compatibility with other European suppliers, resistance to abrasion and low noise properties. Machined tracks offer a convenient and easy way to guide side flexing chain around a corner.
Made from Virgin UHMWPE they have a low coefficient of friction, silent operation and permit high speed lines.
Channel Style, Raised Track, Channel with a Raised Track, Mounting Channel
Chain guides are available in the channel style, raised track, and as a channel with a raised track. These chain
guides are also available as inserts for mounting channels. The channels are available as galvanized or
stainless steel. A mounting channel is welded or bolted into place and allows the UHMW to expand and contract
without buckling.
T Type Plastic Chain Linear Guides
UHMW-PE (Ultra High Molecular Weight Polyethylene) is thermoplastic engineering plastics, which is normally used in the area of marine, transport, coal-mining, machinery, paper-making, textile industry, etc.
The advantage of UHMW chain guide:
· Extremely high impact strength
· Excellent wear and abrasion resistance
· Optimal sliding properties
· Dimensional stability
· Energy absorption capacity at high loading rates
· Resistance against fatigue
· Water repellent
· Good chemical resistance
· Excellent electrical and dielectric properties
· Physiologically harmless
The material--UHMWPE properties
Non-toxic and smell
Wear resistance
Impact resistance
self-lubricating
Corrosion resisting
Impact resisitant
Low temperature resistance
Hard conglutination
Low water Absorption
Low coefficient of friction
Dielectric
Anti-static
Flame retardant
Excellent UV resistance
variety |
application |
high abrasion-resistance |
storehouse wall,port machinery,miningmachinery,building machinery,chute,hopper. |
pure ultra-high sheet |
transportmachinery,foods,package,environmental protection,papermaking,ceramica. |
electrostatic-resistance sheet |
electrostatic protecting positions for mining in the pit,dock,and foods processing. |
burning-preventing sheet |
mning in the pit,mainly used in easily self-inflammation parts,such as coal storehouse. |
color sheet |
packaging,decorative material,board fender |
double-color sheet |
wear easily found and easily check. |
micro-hole sheet |
filter-sheet. |
The properties of UHMW-PE:
Property |
Unit |
Value |
Density |
g/cm3 |
0.93-0.96 |
Average molecular weight |
g/mol |
3million- 10 million |
Tensile strength (23°C in air) |
MPa |
22 |
Breaking strength |
MPa |
42 |
Tensile strain at break |
% |
600 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
Ball indentation hardness |
N/mm2 |
42 |
Shore D hardness |
-- |
65-70 |
Abrasion |
% |
70-80, steel = 100 |
Static Friction Coefficient |
-- |
≤0.16 |
Kinetic Friction Coefficient |
-- |
≤0.10 |
Water Absorption |
-- |
NIL |
Elongation at break at 23 degress |
% |
≥300 |
Temperature resistance |
°C |
-269 to +85 |
Melt Temperature |
°C |
130-140 |
Why use XINXING UHMW?
- Ensure longer belt and chain life
- Longer guide life
- Simplified installation and replacement
- Precision-machined
- In stock, ready to go!
Longer Belt and Chain LifeXINXING Guides are far slicker than steel or other thermoplastics, resulting in less wear on expensive transfer belts and drive/attachment chains.
Reduced Wear XINXING Guides outwear abrasion resistant steel by 3 to 1 and PTFE by 5 to 1. UHMW has the highest abrasion resistance of any thermoplastic for longer guide life, even in abrasive environments.
Modular Design XINXING unique design simplifies initial installation and facilitates future replacement of UHMW inserts, while allowing for thermal expansion. Mounting channels are available in galvanized steel, stainless steel, and anodized aluminum and can be supplied with pre-punched mounting holes for added convenience.
Precision Machined All XINXING Belt and Chain Guides are machined to extremely close tolerances from compression molded sheets. This process results in a higher molecular weight and superior performance than possible with extruded UHMW profiles.
More Advantages:
- Quiet operation
- Lightweight
- Excellent chemical and corrosion resistance. See product specification for details.
- Mounting channels available to simplify installation
Packaging : pallet packing or as client need.
why choose us:
1.More than 15 years' professional manufacturing experience with own factory.
2.Virgin 100% material produced, high quality with good surface and color make ensured
3.GB/T 19001-2008 ; ISO 9001:2008 certification.
4.Competitive price, In stock, Fast delivery, and Excellent service.
5.OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.

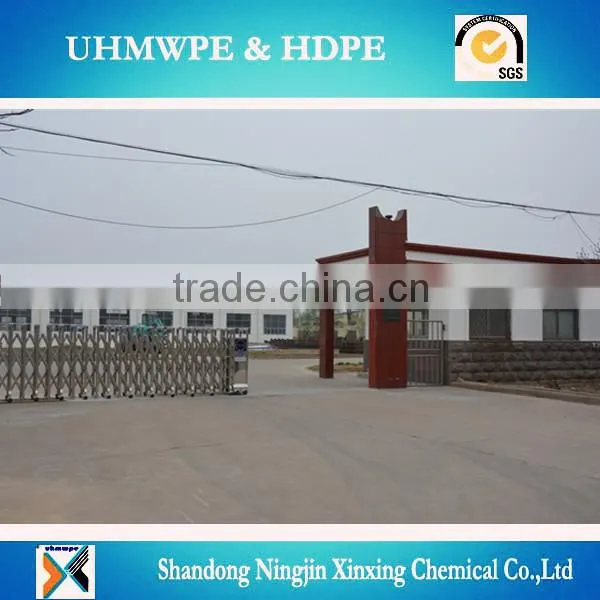

welcome to visit our factory!
