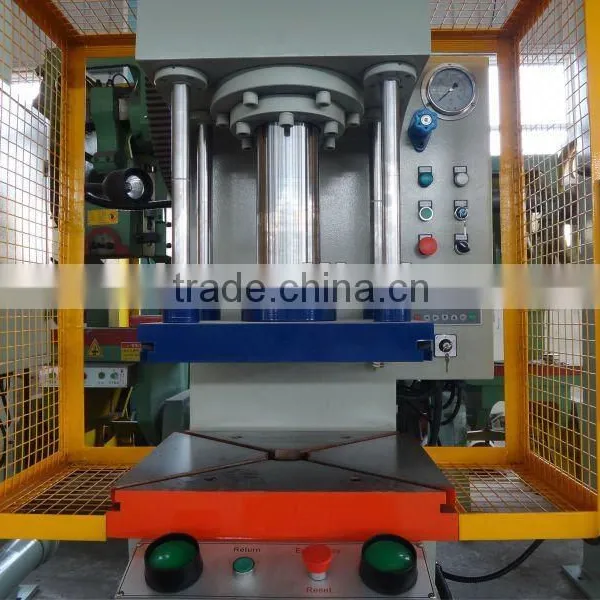

Deep throat single column hydraulic punching machine

Name: Deep throat single column hydraulic punching machine
Brand: AccurL
Availability: InStock

FOB Price

US$ 4,500 - 29,000 / Set

1 Set(Min. Order)

Port Shanghai Port China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Anhui, China
Brand Name	AccurL	Model Number	HPP-25T
Voltage	380V or 220V/60HZ /3P (also according to your local voltage)	Power(W)	19.5 kw
Weight	18500 kg	Dimension(LWH)	2050X1550X3350 mm
Certification	ISO and CE Quality Certificates and Warranty Certificates	Warranty	5 year after delivery, provide technical service all life time
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Company Information

Anhui Laifu NC Machine Tool Co., Ltd.(Direct Factory)

AccurL Machine Workshop

AccurL Machine - Attend the Canton Fair

Product Description

IN'T AccurL Brand C-Frame High Speed Hydraulic Press HPP-250tons ( Patent Product )

1) Machine Structural Feature:

1. HPP Series C-Type High Speed Press is one of the new generation of plate process and developed by AccurL.C-frame design for large operating spaces - suitable for automatic operations forming, punching, bending,straightening and multi-press assemblies to form automatic production line.

2.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.

3.Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.

4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

5. The entire equipment be totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety

6. Frames, assembly surfaces and connection holes are machined after the welding process,up to 60' in a single pass.

2) ACCURL Press Features :

1.Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.

2. Main cylinder is specially designed for high velocity, motor uses less power, high ascending and descending speed, increased efficiency.

3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

4.Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany

5. Piston has been heat treated and precision ground finished, uses high quality, imported oil seals & packing; high wear resistance and durability.

6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

7. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

8.All pipes, flange and joint with vibrations proof and leakage proof design and setting .

9.Machining is carried out on modern Pentahedron machining center and CNC boring & milling machine to guarantee maximum precision.

3) Ram adjustment and Structure:

1. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain.

2. The Machine Adjustable stroke control, Pressure regulator and gauge, allows to limit the ram pressure. Can move the ram up slowly,which allows the operator to control work piece conveniently.

3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

4). Electrical system and the safety interlock:

1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

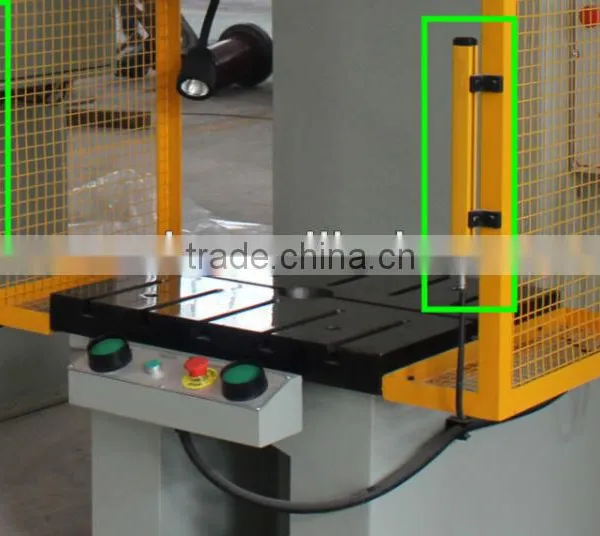

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

3. The machine by the European Union CE certification and ISO quality system certification

4. Meet standards and legislation Security (protection man / machine),such as PPRPS, EU CE,NT-16 and NR-12, NR-13.

5) Presses control system:

1. Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.

2. PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds.

3. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.

4. The Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

5. Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.

6. Optional touch screen terminals offer:

a) Data storage of mould(s) and manufacturing conditions.

b) Reduced mould replacement time and calibration, fabrication requirements.

c) Programmable memory for working conditions, displays pressure, stroke, spend data, etc; one cycle process sequence.

IN'T AccurL Brand 4-Column High Speed Hydraulic Press ( Patent product )

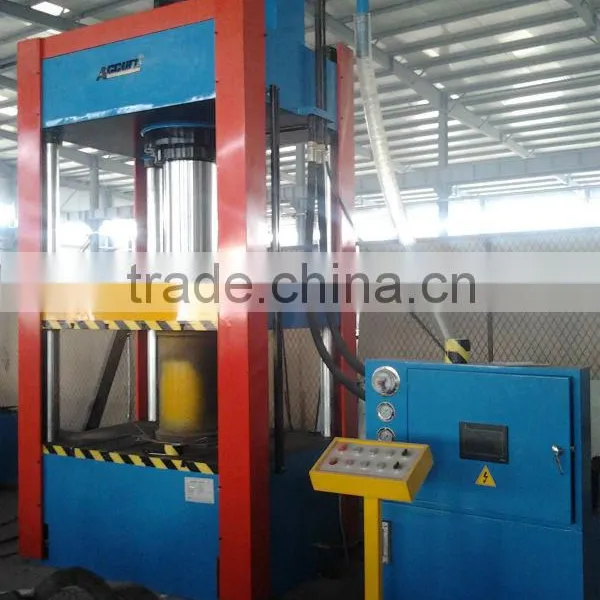

IN'T AccurL Brand H-Frame High Speed Hydraulic Press ( Patent product )

Our Services

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

FAQ

No.1 How about your machine quality?We are worry about the quality.

RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

No.2 Whether the machine price can be more discount?

RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

No.3 How about your manufactory in CHINA

RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

No.4 Where is your factory located? How can I visit there?

RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
