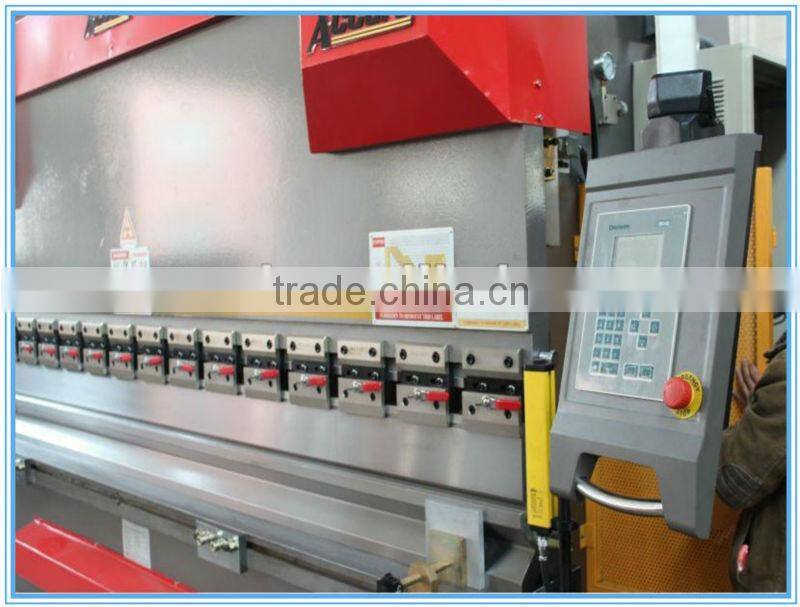

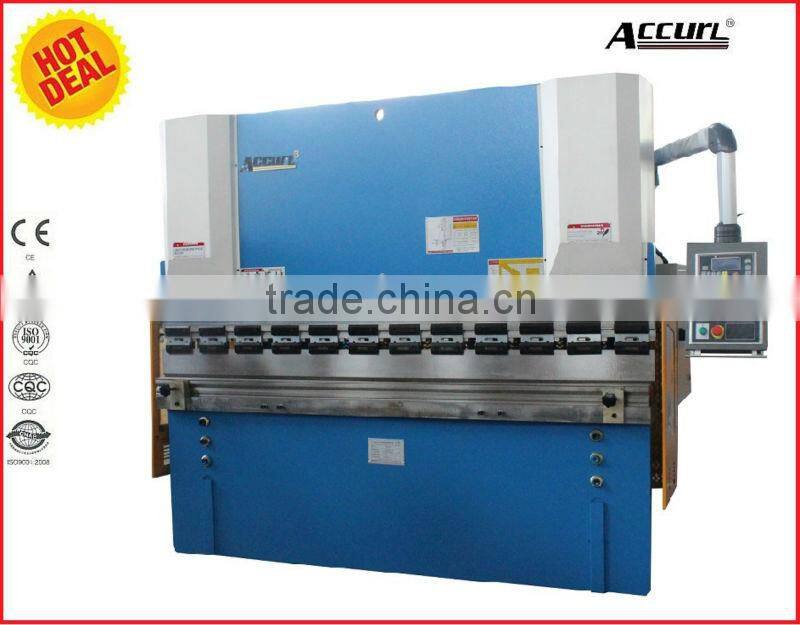

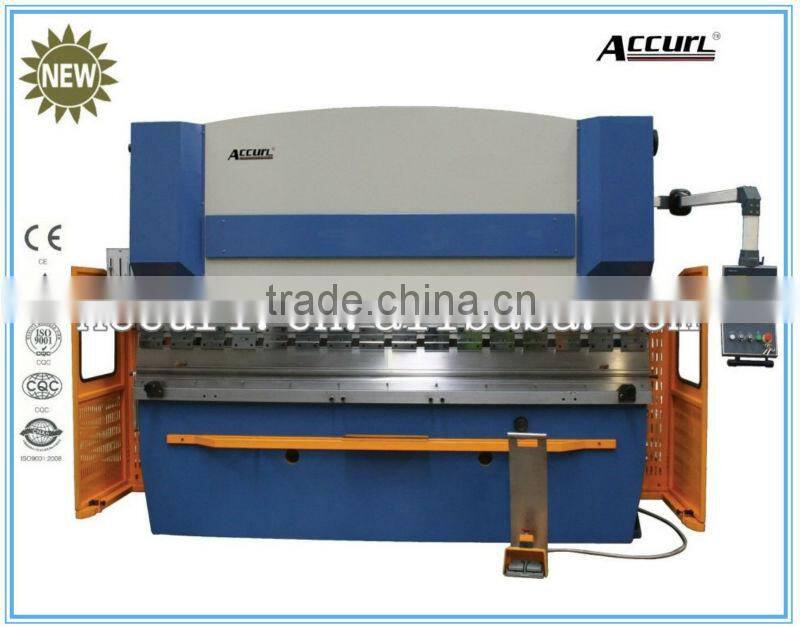

| The Machine of Whole structure and Characteristics: |
1.Totally European design, streamlined looking, Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
=================================================================================
2.AccurL PRESS BRAKE incorporates ESTUN controls offer not only failsafe operation of the vital operations of the machine,but also offer the operator considerable assistance in carrying out the entire bending process.
============================================================================================================
3.High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.
============================================================================================================
4.Provides NC control of standard 2 axes (Y and X) with manual R axis.
| WC67Y hydraulic metal folding machine,hydraulic folding machinery, hydraulic bending machinery |
=============================================================================

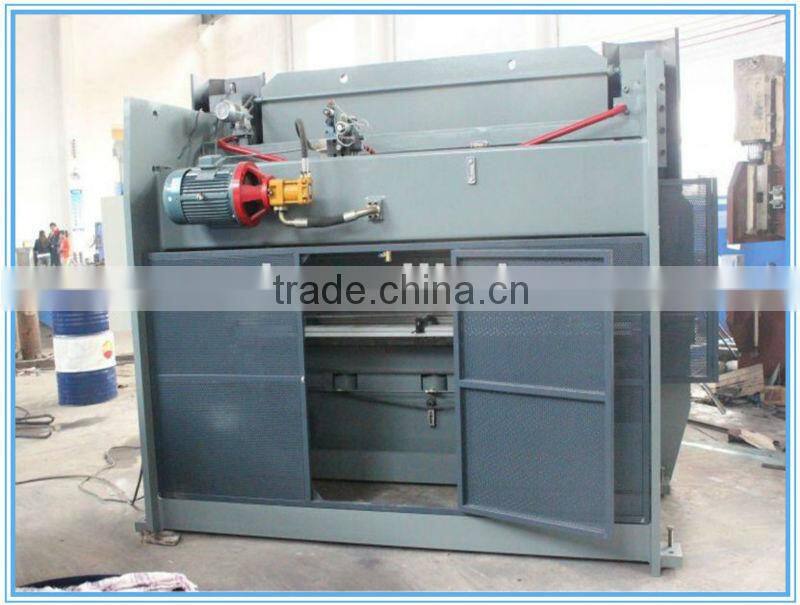

| I: Hydraulic system: |
1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.
================================================================================
2.Extremely reliable and precise Bosch – Rexroth valves are used for the regulating circuit. Every complete working cycle can be achieved through the control of hydraulic valve.
================================================================================
3.All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance .
===========================================================================================================
4.Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
================================================================================
5.Being able to work under rated load continuously,stable working and high precision.
| II:Electrical system and the safety interlock: |

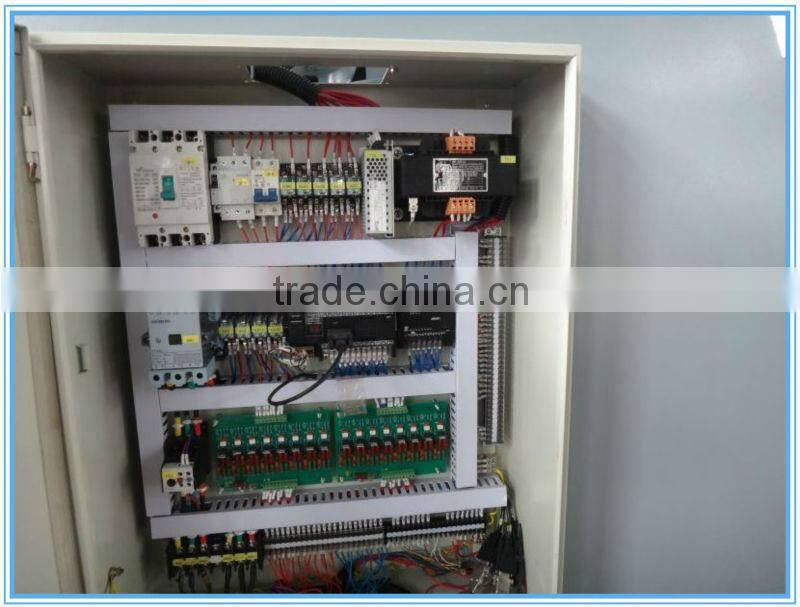

1.Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand.
===========================================================================================================
2.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
================================================================================
3.Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
=================================================================================
4.The machine by the European Union CE certification and ISO quality system certification.
| III:Synchro control system: |
1.Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
=================================================================================
2. 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
=================================================================================
3.The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
| IV:Bending depth adjustment and RAM structures: |
1.The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth Automatic (digit readout) and motorized (Estun E10 NC Control) Adjustable.
=================================================================================
2.Can move the ram up slowly,which allows the operator to control work piece conveniently.
=================================================================================
3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
=================================================================================
4.Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000 mm sections).

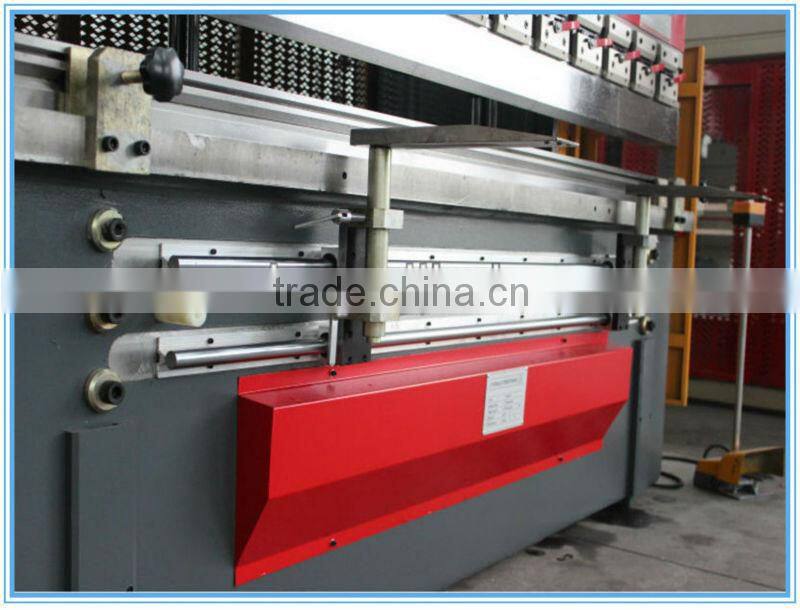

| V:Servo motorized Backgauge (standard) |
1.CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
==================================================================================
2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
==================================================================================
3.High-precision ball screw and linear guide-way.Particular finger-stop design,enlarge the range of back gauge.
| Further More about Accurl machine : |
|
1. two cylinders controlling beams vertical moving. 2.Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy. 3. motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display. 4.. hydraulic top-drive,steadiness and reliability, mechanical stop,steel torsion bar to maintain synchronization. 5.The machine uses Delem NC system, and imported linear transducer, pressure proportional valve and servo motor. 6. Accurl machine steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity. |
| Accurl Four Standard accesories : |
|
1.Accurl Hexagonal key 1 set. 2.Accurl Foundation bolt 4 pieces. 3.Accurl Operation manual 1 book. 4.Accurl Moved foot pedal 1 stand. 5.Accurl certificate of quality 1 book. |
AnHui LaiFu CNC Machine Tool Co.,LTD, located in the high-tech zone of Ma'anShan City, is designated as a National High-tech enterprise. As the largest CNC plate processing facility manufacturing base in China, it also awarded the title of 'China Top Brand', and the products have been exported to all of the world. It also passed ISO9001 Quality System Certificate and CE Certificate.
National industry is the soul of a nation's economy;If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Accurl Customers All Over The World!!
1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
No.1 How about your machine quality?We are worry about the quality.
RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
No.2 Whether the machine price can be more discount?
RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
No.3 How about your manufactory in CHINA
RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.
No.4 Where is your factory located? How can I visit there?
RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
