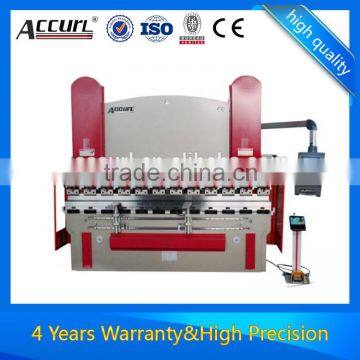

Most Popular Products China 125t Hydraulic Bending Machine Con

1) Machine Structural Feature:
• Totally European design,streamlined looking.
• Taking off inner-stress of welded parts by tempering,good stability.
• Remove rust with sand-blast and coated with anti-rust paint.
• Adopt Spanish pentahedron machine center,once clamping can finish all working surfaces which will guarantee dimension precision and position precision.
• The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.
• Frames, assembly surfaces and connection holes are machined after the welding process,up to 60' in a single pass.
• Supplying three front sheet supports.
• Finish of Nippon Polyurethane paint.

2) Ram Structure:
• Upper stroke design for bending,low noise,stable operating situation.
• Parallel tolerance of Y1 and Y2 is 0.01mm.
• Y1,Y2 can be programmed separately,can work under non-balance load,can bend cone-shape work piece.
• At bottom dead center a pressure-keeping time is offered,and can be programmed to assure precision of all kinds of work piece.
• Can move the ram up slowly,which allows the operator to control work piece conveniently.
• Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

3) Hydraulic System– Rexroth,Germany:
• Close loop electro-hydraulic synchronized servo-control system,the most advanced.
• Hydraulic system is from Rexroth,Germany,a full loop electric-hydraulic proportional servo control,Sumitomo oil pump,Japan.
• Imported linear optical reader,guiding system,positioning system and hydraulic balancing system with high precision,which all can permit the processing work piece of full length or with eccentric.
• An outfit with "C" is at throat, as deformation compensation on throat,directly measuring the distance between upper tool and low die,assuring the precision of work piece.
• All seals in cylinder is imported,the most famous brand,good quality and high performance.
• Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
• Being able to work under rated load continuously,stable working and high precision.

4) CNC X+Y1+Y2 Manual R+Z Back Gauge:
• Close loop electro-hydraulic synchronized servo-control system,the most advanced.
• Good for work piece needing multiple steps of bending with high precision requirement.
• X is moved with ball screw,guided by linear guide,and driven by digital AC servo-motor.
• Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
• Two fingers are moving alone swallow guide,operate easily with high precision.
• Particular finger-stop design,enlarge the range of back gauge.

5) Electrical System– Schneider, France:
• Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
• Having a movable single-hand pedal switch with emergency stop,easy to operate.

6) Crowning Compensation:
• Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system,with guarantee a same bending angel on full length.
• The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

7) DELEM DA56s CNC Control System Standard:
• Synchronised / conventional press brake control
• Colour LCD display
• LED backlight
• 10,4" TFT, 800x600
• 500 MHz processor
• Short travel keyboard technology
• Memory capacity 256 MB
• Tool library
   30 punches
   30 dies
• Data backup / restore via USB
• Power-down memorisation
• Integrated valve amplifier

AnHui LaiFu CNC Machine Tool Co.,LTD, located in the high-tech zone of Ma'anShan City, is designated as a National High-tech enterprise. As the largest CNC plate processing facility manufacturing base in China, it also awarded the title of 'China Top Brand', and the products have been exported to all of the world. It also passed ISO9001 Quality System Certificate and CE Certificate.

National industry is the soul of a nation's economy;If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

 Accurl Customers All Over The World!!

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

No.1 How about your machine quality?We are worry about the quality.
RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

No.2 Whether the machine price can be more discount?
RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

No.3 How about your manufactory in CHINA
RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

No.4 Where is your factory located? How can I visit there?
RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
