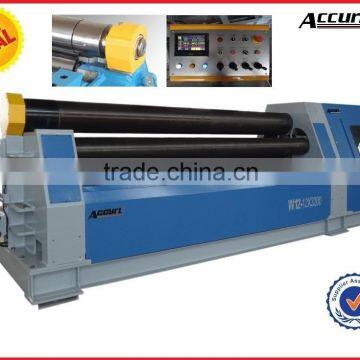

W12-6*2000 CNC Touch Screen Hydraulic Plate Sheet Rolling Bendr Machine with PLC

Name: W12-6*2000 CNC Touch Screen Hydraulic Plate Sheet Rolling Bendr Machine with PLC
Brand: AccurL
Availability: InStock

FOB Price

US$ 6,000 - 42,000 / Set

1 Set(Min. Order)

Port ShangHai Port China
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	AccurL	Model Number	W12-6X2000
Machine Type	Roller-Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Other, Slotting & Notching
Certification	Other, CE / ISO / SGS / GS / UL	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Chapter One-Company Information

Anhui Laifu NC Machine Tool Co., Ltd. (Direct Factory)

AccurL Machine Workshop

AccurL Machine - We attend the Canton fair

Chapter Two-Product Description

INT'L AccurL Brand W12-16x2000 4 Roller Hydraulic Rolling Machine ( Patent Product)

The Feature of Hydraulic Plate Rolling Machine:

The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment.

AccurL rolling machine working principle is rotating bending deformation. For the upper roller can be moved no matter up and down, but also horizontally.

The rolling machine No need additional press or equipment, can realize prebending, bending, as well as correction of the workpiece.

The Whole Structure of Hydraulic Plate Rolling Machine:

Totally European design,streamlined looking,frames of our machines are fabricated, welded steel (ST-52).

Roll shafts, materials and bearings used in production are European quality. Also the torque limit of the machines is very high.

NC playback and CNC graphic control systems are available as optional accessory.

The main structure of the equipment includes upper roller, lower roller and horizontal movement mechanism, supporting mechanism.

Accurl rolling macine main drive mechanism, downturn system, left and right machine frame, chassis and balance mechanism, hydraulic and electrical control systems.

The model MH has both the upper and the lower roll powered with hydraulic motor and planetary gear box.

High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.

Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.

Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.

Different use has different control way, like top numerical control and below numerical control.

Through exclusive technology, AccurL can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.

Major Parts of The Manufacturing Process:

Working rollers: cast steel ingot (chemical composition analysis): check performance-forging roughcast — forging annealing-UT flaw — roughing (mechanical tests)--heat treatment (hardening and tempering) — UT flaw — semi finishing — finishing — MT.

Large forgings: cylinder body, gear, gear shaft forging roughcast — surface inspection – roughing — UT flaw — UT flaw detector heat treatment — finishing semi—finishing — MT.

Welding structure: racks, chassis, wheel box.

late into the factory (chemical composition analysis, mechanical properties test) — pretreatment — for sheet metal cutting-welding-seam UT or RT flaw — annealing treatment — roughing-finishing— vibration destressing—hot blasting —finishing.

CNC Control System:

Special bending aircraft, numerical control.

HMI (human machine interface), intelligent operation.

Self-compensating, single operate, high efficiency, safe and convenient.

Many models for choice, economic numerical control model, TC computerized numerical control.

Configuration of Hydraulic Plate Rolling Machine Is Follows:

Main power:Siemens Electrical made in Germany

Main electronic elements: Schneider made in France

Axletree:Double-row self-aligning bearingfrom Germany

Main motor: Siemens Electrical made in Germany

Programmable logic controller PLC:OMRON products from Japan

Hydraulic system: Bosch – Rexroth made in Germany

Gear pump: made in China TaiWan

Work Roller:Material of work roller with 42CrMo Alloy steel

Digital display system:Touch Screen for Delta

Transducer:OMRON,Made in Japan

Automatic lubrication system:Sino-Japanese joint,which has block alarm

Advantages of AccurL Rolling Machine

Work piece only needs to be aligned once at the start of the bending process.

Automatic minimization of flat ends.

Secured rolling traction throughout the process.

Simple cone bending.

Simple calibrating of apple- or pear-shaped welded tubes.

Correction of axial offsets possible.

Minimal wear on guide ways for long-lasting machine precision (VRM guideways are 100% longer than guide ways on competitor products).

High-alloy steel rolls are very crack-resistant.

Roll breaks allow blocking of rotation for pre-bending thus improving process-safety.

Minimal foundations works required for installation.

High-torque drives on bottom and top rolls.

Bending of oval, elliptic or rounded box shapes is possible.

Customer inspection machine in our factory

Chapter Three- Our Services

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

Chapter Four-FAQ

No.1 How about your machine quality?We are worry about the quality.

RE: ACCURL is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

No.2 Whether the machine price can be more discount?

RE: 1.ACCURL always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. Actually Accurl also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

No.3 How about your manufactory in CHINA

RE:ACCURL located in Ma'anShan CITY,AnHui province who is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 12 years in this area and totally have about 250 staffs.Rich experience in this field with professional technical supporting and oriented service.

No.4 Where is your factory located? How can I visit there?

RE: AccurL factory is located in Anhui Province(next to NanJing),China.You can fly to NanJing LuKou airport directly.All our clients, from home or abroad, are warmly welcome to visit us.
