suction Board suction board Inhalation Board,doctor blade uhmw/UHMW Bevel Doctor Blade,paper machine suction box for dewatering
Dewatering Component for Paper and Pulp Manufacturing
water-proof virgin PE Suction Box Covers
Suction Box tops for paper
Paper machinery parts
suction box
flat box
vacuum box used in the paper forming section to remove water from pulp
clear plastic dust cover
Non-tocix White UHMW-PE Suction Box Cover
Dewatering Component for Paper and Pulp Manufacturing
Best Price uhmw-pe suction box covers
low coefficient of friction UHMWPE suction box covers
XINXING UHMWPE suction box covers and blades are made of UHMW-PE material .
UHMW-PE dewatering element is known for its high dry-film lubricant content.
This produces an extremely smooth surface, most importantly resulting in a low friction
coefficient a low level of adhesion.
· No adhesion
· Excellent chemical resistance
· Low coefficient of friction
UHMW-PE covers material properties
| Item | Test result | Unit |
| Density | 0.93-9.98 | g/cm3 |
| Tensile strength | 25-28 | Mpa |
| Compression strength | 30-35 | Mpa |
| Elongation at break | 270-360 | % |
| Shore D hardness | 62-66 | HD |
| Coefficient of friction | 0.12-0.16 | |
| Notched Impact strenth charpy | 85-120 | kj/mm2 |
For machines with speeds up to 800 m/min
XINXING dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them, as well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.
All these benefits ensure what is an outstanding service life for plastic coupled with a low coefficient of friction.

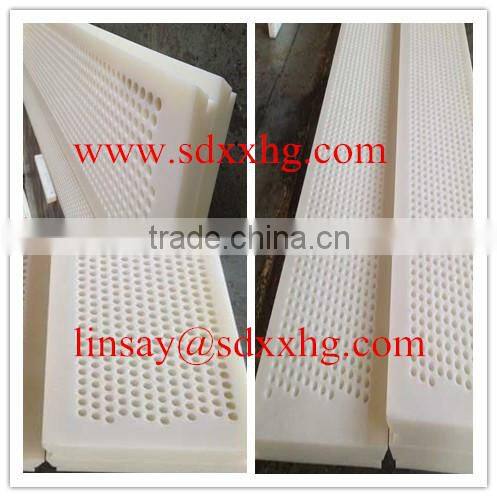

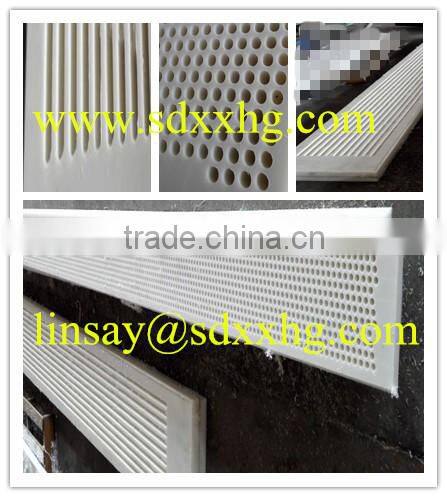

Please check the following the work functional picture of UHMWPE suction box covers and blade .
Application
At machine speeds of up to approx. 800 m/min
XINXING has specialized in UHMWPE suction box covers and blades for more than 15 years ,
we can produce all size and color UHMWPE suction box covers and blades for customer !
Our workers will satisfy your any need .
1. introduction of UHMWPE material
UHMWPE material has exceptionally low coefficient of friction offering superb sliding properties and is one of the best plastics for wear/abrasion resistance meanwhile tough and impact resistant even at cryogenic temperatures. As a result, it is definite that UHMW polyethylene is a wonderful engineering plastic that can solve many problems that other engineering plastics cannot.
2. Advantage of UHMWPE material
- UHMW exhibits virtually no water absorption
- Non-Toxic
- Low coefficient of friction
- Corrosion resistant
- Abrasion and impact resistant
- Wear Resistant
- Dielectric
- Weatherproof
3.Property data sheet of UHMWPE prodcuts
4. Features of UHMWPE Dewatering Elements with different colors:
- Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
- Anti-Weather & Anti-Aging
- Self-lubricating, Very low coefficient of friction
- Excellent chemical & corrosion resistant
- superior impact resistant, Noise- absorption, Vibration-absorption
- Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800CHigh tensile Strength
- Non-Toxic and smell
- UV resistance
- Flame Retardant; Relatively low in water absorption
- Excellent electrical properties
- Good performance in resisting environment stress crack, 200 times of ordinary PE
- No adhesion
- Great liner material for industrial material handling applications
- Easy Reprocessed

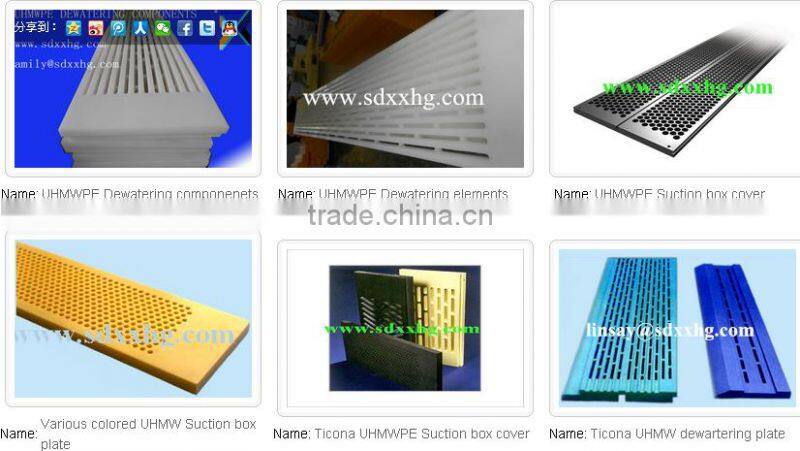

suction box covers, Forming boards, Foil covers, Doctor Blades, Scraper blades,Deflector blades
Suction box covers, Forming boards, Foil covers, Doctor Blades, Scraper blades , Deflector blades, Profile strips etc
5. Technical data of UHMWPE Dewatering Elements with different colors:
Physical Properties |
Test Method |
Unit |
Value |
Density |
ASTMD792 |
g/cm3 |
0.93 -0.97 |
Water Absorption |
ASTMD570 |
% |
< 0.01 |
Mechanical Properties |
Test Method |
Unit |
Value |
Max Working Temperature |
- |
°C |
90 |
Minimum Working Temperature |
- |
°C |
-269 |
Tensile Strength |
ASTMD638 |
MPa |
40 |
Elongation at Break |
ASTMD638 |
% |
300-500 |
E-Modulus |
GB1040-79 |
MPa |
820 |
Bending Strength |
GB9341-88 |
MPa |
26 |
Bending E-Modulus |
GB9341--88 |
MPa |
760 |
Compression Strength (deformation 10%) |
ASTMD695 |
MPa |
21-25 |
Compression E-Modulus |
GB1041-79 |
MPa |
550 |
Shear Strength |
GB1041-79 |
MPa |
33 |
Hardness |
ASTMD240 |
Shore D |
65 -68 |
Coefficient of Friction |
- |
- |
0.12-0.15 |
Dynamic Coefficient Friction |
GB10006-88 |
- |
0.07-0.11 |
Thermal Properties |
Test Method |
Unit |
Value |
Coefficient of Linear Expansion |
GB1036-89 |
°C-1 |
1.5×10-4 |
Coefficient of Heat Conductivity ( 23 °C ) |
GB3399-82 |
Cal/cm sec °C |
8.5×10-4 |
Special Heat ( 23 °C) |
GB3399-82 |
Cal/g°C |
0.44 |
Electrical Properties |
Test Method |
Unit |
Value |
Volume Resistivity |
GB1410-78 |
Ohm cm |
>1015 |
Surface Resistivity |
GB1410-78 |
Ohm |
>1015 |
Dielectric Constant ( 1MHZ ) |
GB409-78 |
- |
3 |
Dielectric Strength |
GB1408-78 |
Kv/mm |
70 |
6.Our Other Plastic Products:
UHMW-PE Sheet; HDPE Sheet; PE Sheets;UHMW-PE/HDPE/PE Machined Parts;
Synthetic ice rink board, artificial ice rink, portable hockey training board;
UHMW-PE/HDPE Marine fender board;
UHMW-PE/HDPE Outrigger pad;
UHMW-PE/HDPE Liner board;
UHMWPE guide rail;
And other uhmwpe and hdpe products, welcome to ask!

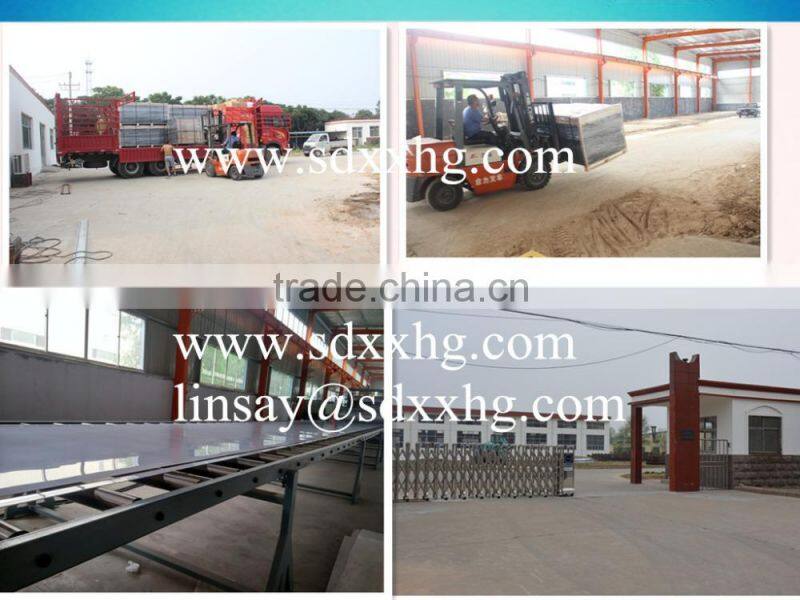

The introduction of our company
Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer.
We have gained many certificates from government and professional fields .We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMWPE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.
Our products are widely applied on electric fields ,wharf and port ,mining ,chemical plant and so on which bring a lot of social benefits and economic benefits .Now they are popular all over the world.
We always share the things "Quality first, Customer first ,keeping improving " to win more benefits for our customer.
In order to achieving rapid and sustainable development, we are willing to establish a wide and deep cooperation relation with enterprises both home and abroad.
Why Choose Us
--More than 15 years' professional manufacturing experience with own factory
--Virgin 100% material produced, high quality with good surface and color make ensured
--GB/T 19001-2008 ; ISO 9001:2008 certification.
--Competitive price, In stock, Fast delivery, and Excellent service.
--OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
FAQ
Customer Questions 1 : We have a strict control on our quality so we must assure the uhmwpe parts that we imported have good quality ,how can you assure that ?
XINXING :Dear sir ,that is really a good question .We control our quality from raw material to the processing process in every aspects .Also we use TICONA brand material as the raw material .Their quality is very famous all over the world .
Customer Questions 2: Can you exported by yourself and which country that you have exported ?
XINXING :Dear Sir ,we have exported license and we have exported to many countries like America ,Russia ,Africa ,Thailand ,Malaysia ,Indonesia ,Japan ,Germany ,Poland ,Uk ,Canada and many other countries .
Customer Questions 3:If we purchase from you ,what benefits that you can bring to us ?
XINXING : We can bring you benefits in four aspects : Price ,Service ,Delivery time ,Quality
Price :If you buy from us ,we can assure that your price is competitive than others since we are the largest manufacture for UHMWPE products
Service :We have special sales and single service for you which will make sure that you can get every good service on each order
Delivery time :We have nearly 16 sets pressing machines and 7 sets CNC machine to do the processing which will make sure a very fast delivery time
Quality : Quality is the best since raw material and our pressing machine is best
Customer Questions 4: We are very urgent on this sample order and quantity is only 4 tons ,could you finished them in 10 days ?
XINXING :OK ,even our normal delivery time is 15 days ,but we would like to help you solve this problem .
