Specifications

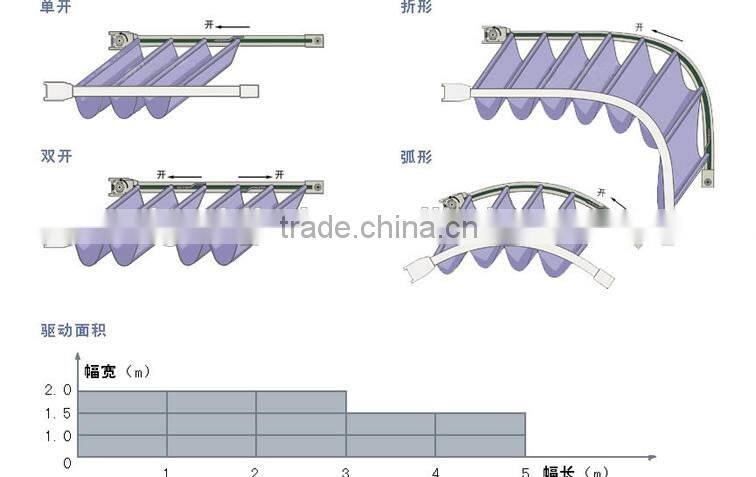

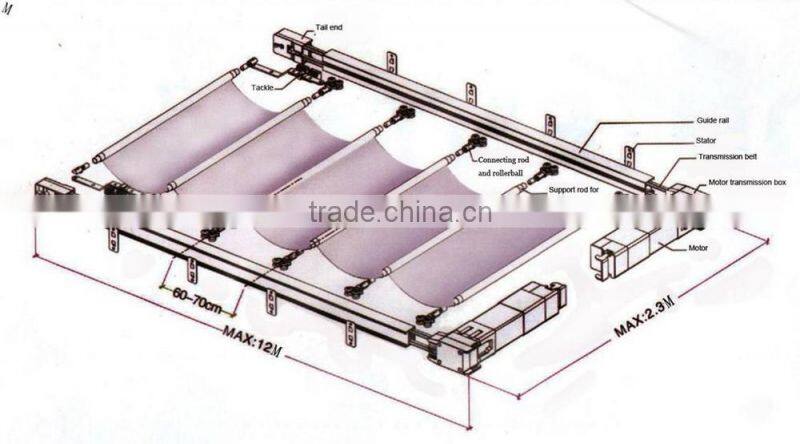

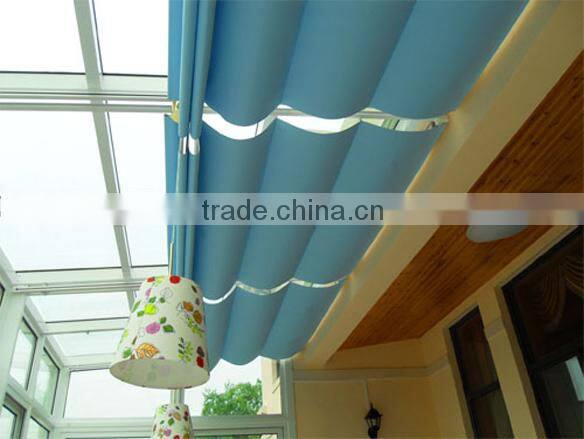

PTS Electric double-track folding ceiling curtain is fixed at the top or side of the indoor daylighting top together on the top of the glass daylighting shading system, it can be a straight line, also can be curved, basic and building curve fit properly can, sunshade practical and keep the style of architecture design. Ceiling curtain each group consists of left and right two guide, use a pair of synchronous motor drive. When the motor is started to drive crawler, middle lead by elastic traction fabric so as to achieve the aim of shade cloth rod. The system can not only apply to the horizontal plane glass ceiling, and through the track curved or other technical processing, also can adapt to a variety of irregular shape of the glass curtain wall structure

FCS ceiling curtain system consists of three parts left of the transmission mechanism, fabrics and end

part of the drive controller for power end, the use of tubular motor driven rotary volume control and a fixed volume on the

volume tube rope rope be rotated so that a retractable . Other end of the transmission part of the fixed spring pulley, drive

pulley rope through commutation, so that the two ends of a rope fixed to the volume simultaneously rope and wire rope

remains taut; upper part of the fixed and stretch fabrics there are two or more tight rope (ceiling curtain rail across large switch);

fabric to begin the installation from the top of the lateral connecting rods, spacing aliquot (usually 0.5m-.08m around),

coupling rod fitted with wheels, scroll wheel on the fixed wire; fabric rope drawbar coupling and transmission in volume

control (motor), driven by a fixed rope along the fabric extension and retraction.

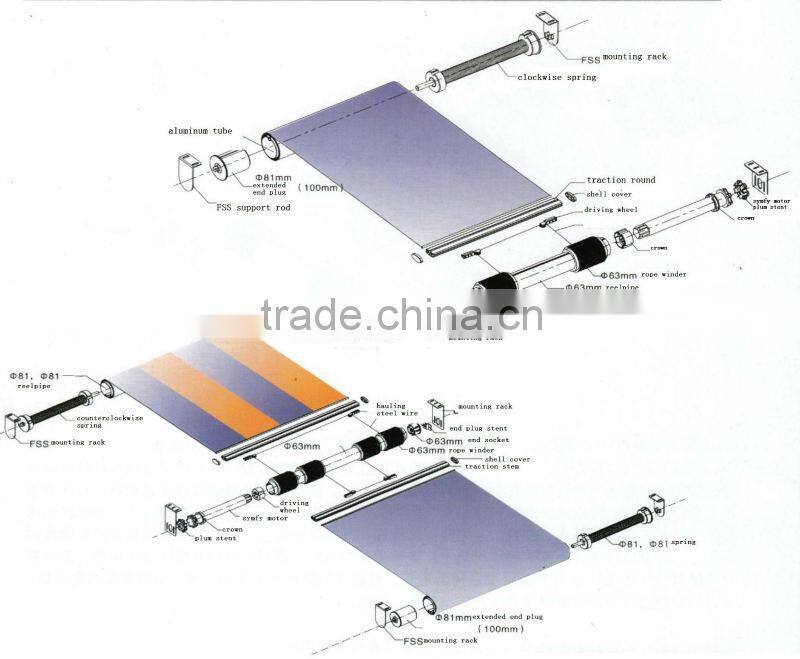

FSS ceiling curtain system mainly consists of the tubular motor and elastic tension system. At one end of the drive shaft, built-in tubular motor; Within the other end of the driven shaft, spring mechanism, fabrics of motor is driven, at the other end of the spring gradually tightening, zhang ting to fabrics, motor reversing spring gradually relaxed, shading fabric roll back. Its easy operation, small motor work noise, smooth operation. FSS electric ceiling curtain system designed for bending, level, tilt shading system, suitable for engineering and civil shading system, including the building top surface, slope, elevation, curved surface and so on.

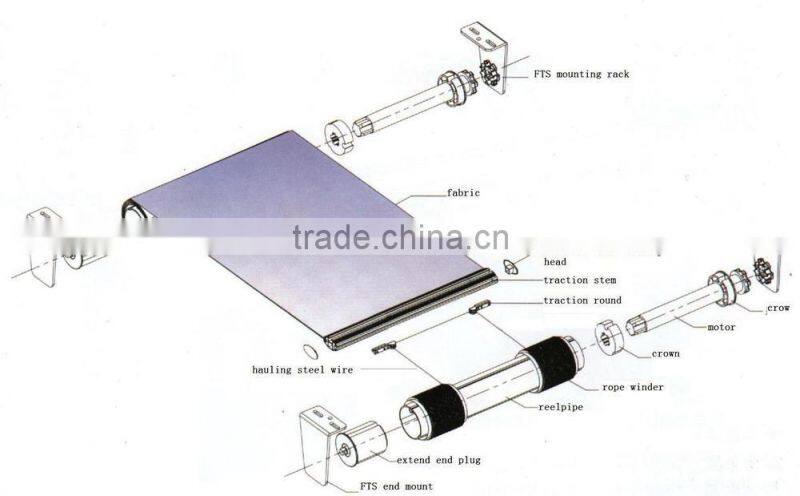

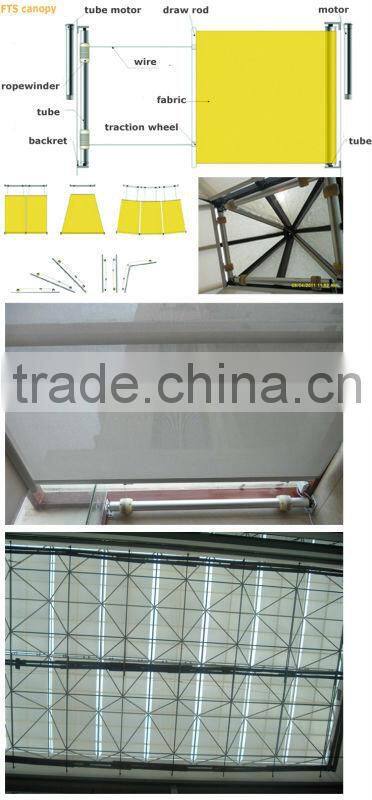

FTS Sunshade agency for horizontal or inclined shading systems designed

for use in ordinary electric unable to install the occasion, FTS agency is an ideal solution for horizontal, vertical or

inclined or even curved glass windows, under these circumstances, the fabric was allowed to withstand tension.

This system uses two FTS special motors were installed at both ends of the fabric and rope. Electronic controls to

adjust the tension of the fabric. Agency operation, under the control of two motors in the role of the box, with the

movement, so that the fabric always maintain a certain dynamic tension, does not result in excessive sagging fabric.

When to stop the static tension causes the fabric to tighten Bengzhi, closer to the building structure.

 Components:
