Wear resistant black UHMWPE chute liner
Cohesionless /self-lubricating PE sheet for truck /coal bin liner
China HDPE Sheet for bunker liner/hopper liner/truck liner
UHMWPE Plastic Sheets Supplier for truck liner/hopper liner/mixer liner
self-lubricating uhmw plate for truck liner/mixer liner/hopper liner/bunker liner
UHMWPE coal bunker liner/ self-lubricating silo liner/ plastic chute liner sheet
UHMWPE plastic coal bin liner manufacturer/UHMWPE hopper liner silo UHMWPE plastic liner without maintenance UHMWPE plastic liner
perfessional engineering plastic manufacturer liner/truck bed liner/screw conveyor liner low coefficient of friction PE1000 linger /lining
Low friction surface uhmwpe lining for chute/ HDPE plastic silo liner/ anti-static bin liner UHMWPE truck bed liner/UHMWPE chute liner/uhmwpe lining board
UHMWPE chute bunker truck bed liner/ UHMW-PE lining
uhmwpe engineering plastic lining/ UHMWPE slider liner board
UHMWPE lining /liner sheet/board/plate/panel
high densiy uhmwpe lining for trucks,UHMWPE Sheet
Price of UHMWPE / HDPE coal bunker lining uhmwpe lining sheet for hoppers
UHMWPE (also known as Ultra High Molecular Weight Polyethylene) Sheet products are manufactured from the semi-crystalline polyethylene (PE) family. Polystone UHMWPE Sheet has a minimal molecular weight of 9 million which has a positive impact on material performance in an abrasive environment.
Polystone UHMWPE Sheet is available in various grades of material depending on the application requirements. Polystone grades available are Polystone 7000 (a virgin grade white UHMWPE sheet and rod product),
Polystone 7000SR (a black static reduced sheet and rod product), Polystone 7000 Ultra (a green filled grade of sheet and rod)and Polystone 8000 (glass filled UHMWPE Sheet with a molecular weight of almost 10 million).
UHMW-PE chute Liner Advantages
1.Good lubrication and exceptional low abrasion coefficient character of UHMWPE sheet make it to be choosed to be the lining of many chute , coal bunker , truck liner , mixing silo lining and other project whose conveyor cohere easily when it been unloaded and delivered . Adopting UHMW-PE sheet as lining can help the company or operator save much time and money .
2.With a very low friction co-efficient and zero water absorption, UHMWPE lining are widely used to eliminate caking, bridging and hanging up of a variety of bulk materials in application extending through steel and cement production, mining and power generation. In new applications the use of UHMWPE liners facilitates shallower chute and hoper angles providing greater design freedom whilst in existing installations the simulation of steeper angles through a low friction co-efficient is often the solution to plant blockage problems.
TYPICAL PROPERTIES:
Excellent impact resistance
High mechanical strength
Resistant to many solvents
Very good electrical insulator
Excellent abrasion resistance
Very high damping properties
Continuous use temp. of -269 to 80 Deg. Cent.
Minimum water absorption (0.01%)
Extremely low co-efficient of friction
F.D.A. approved for food and drug industries
Applications:
UHMWPE is used in applications requiring high abrasion resistance and non-stick qualities.
Mining Liners for:
Conveyors, Truck beds, Dragline buckets, Shovels, Front loading buckets, Scrapers, Excavator buckets
Coal Preparation Liners for:
Chutes, Hoppers, Bunkers, Launderer parts, Conveyor skirting, Conveyor troughs, Coal and Ore
Transportation:

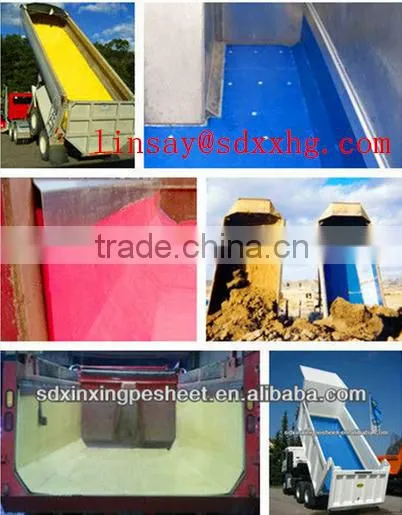

Dump truck lining, Ship Hold Liners, Rail car liners, Conveyor liners,
Bulk Material Handling:
Grain, Coal, Sand, Gravel, Urea Phosphates, Wood Chips, Kaolin Powder, Soap Powder, Dry Fertilizer, Foundry Sand, Soda Ash, Gypsum Barite, Dry Cement, Chemical Powder, Fly Ash & Bottom Ash
The advantage
1.We can provide you with all the OEM service
2. We can Attach your logo, brand or any other pattern on it
Our Services
1. Ensure the products meet the quality standards
2. Ensure the goods will be delivered on time
3. Provide warm and friendly service and after-sale service
4. reply within 10 hours if you have any questions and requests
Technical data of uhmwpe liner sheet, PP liner, truck bed liner:
Physical Properties |
Test Method |
Unit |
Value |
Specific Gravity |
ASTM D792 |
g/cm3 |
0.93 |
Water Absorption |
ASTM D570 |
℃ |
<0.01 |
Mechanical Properties |
Test Method |
Unit |
Value |
Tensile Strength |
ASTM D638 |
MPa |
40 |
Elongation, at break |
ASTM D638 |
% |
300 |
Flexural Strength |
ASTM D790 |
MPa |
24 |
Compression Strength, 10% Deformation |
ASTM D695 |
MPa |
21 |
Hardness, Shore D |
ASTM D2240 |
- |
D66 |
Coefficient of Friction |
- |
- |
0.12 |
Thermal Properties |
Test Method |
Unit |
Value |
Heat Deflection Temperature |
ASTM D648 |
℃ |
47 |
Melting Point |
ASTM D3412 |
℃ |
135 |
Continuous Service Temperature |
- |
℃ |
82 |
Electrical Properties |
Test Method |
Unit |
Value |
Surface Resistivity |
ASTM D257 |
Ω-M |
>1015 |
Dielectric Constant 106Hz |
ASTM D150 |
|
2.3 |
Shandong Ningjin Xinxing Chemical Co., Ltd. is one of the most professional manufacturer of UHMW-PE(Ultra-high Molecular Weight Polyethylene) sheet and rod, HDPE(High-density Polyethylene)sheet PP sheet, PVC sheet, and sorts of products machined preciaely according to the drawing provided by customers in China. Such as Three layer board ,Outrigger Pad, Duck Bumper, Cushion Block, Liners (coal bin liner, hopper liner ,truck bed liner etc.) and other items.
Our company was found in 1989. So far , we have obtained much rich experience for more than 20years in producing UHMW-PE and HDPE products. We can research , develop and produce series of relevant items by ourselves and form an unique product development system.. The products have been marketing to more than 30 countries all over the world . and we have gained high reputation , sincere service from our custom. So, we believe the high quality , sincere service and competitive prices will grab your interest.
The staff are all dedicated to producing more and more high quality and technique UHMW-PE and HDPE products for customers.
