Brackets for Canopy Door Canopy

Name: Brackets for Canopy Door Canopy
Brand: Tiger
SKU: 129005451

US$ 190 - 260 MOQ: 1 Set

Key Specifications

Brand Name:

Tiger

Model Number:

TGFTS -W4-T5

Sail Material:

PVC

Yiwu Tiger Curtain Products Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Tiger

Model Number TGFTS -W4-T5

Sail Material PVC

Frame Material Other, AL and Fabric

Sail Finishing PVC Coated

Operation Method Remote Control Switch

Specifications

item:awning canopy
System: FCS wire motor control
Fabric: sunscreen fabric
MOQ: 1 set
Delivey:7-25days

Product Description

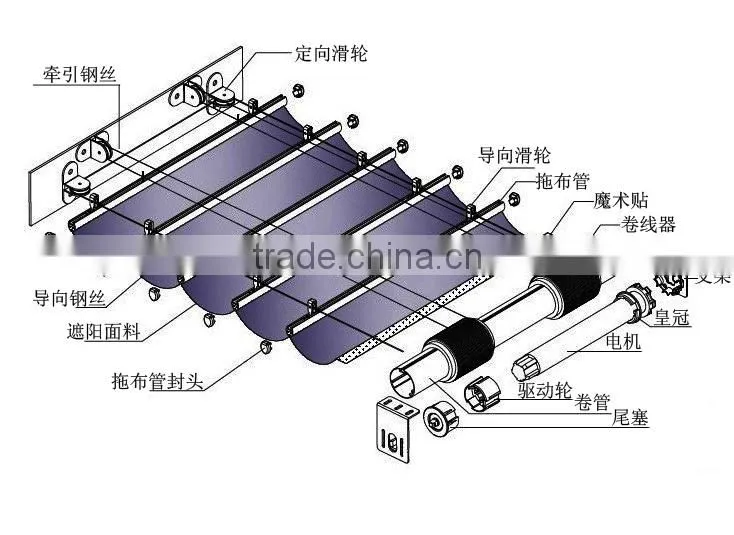

FCS ceiling curtain system consists of three parts left of the transmission mechanism, fabrics and end

part of the drive controller for power end, the use of tubular motor driven rotary volume control and a fixed volume on the

volume tube rope rope be rotated so that a retractable . Other end of the transmission part of the fixed spring pulley, drive

pulley rope through commutation, so that the two ends of a rope fixed to the volume simultaneously rope and wire rope

remains taut; upper part of the fixed and stretch fabrics there are two or more tight rope (ceiling curtain rail across large switch);

fabric to begin the installation from the top of the lateral connecting rods, spacing aliquot (usually 0.5m-.08m around),

coupling rod fitted with wheels, scroll wheel on the fixed wire; fabric rope drawbar coupling and transmission in volume

control (motor), driven by a fixed rope along the fabric extension and retraction.

Product selection Description:
Scope	Laboratory, garden, plants, stadiums, sun room, etc.
Performance	You can stop at any intermediate position, there are a variety of control options.
Installation Requirements	Each piece width of 0.8 to 3.5 m; ≤12 meters length each piece is more appropriate; single area ≤30 meters.
Motor	Special tubular motor, according to the width and length can choose different power motors.
Control	Manual control, radio remote controlled separately, cluster control
Description	The system can be made into a drag two or three forms of a drag
