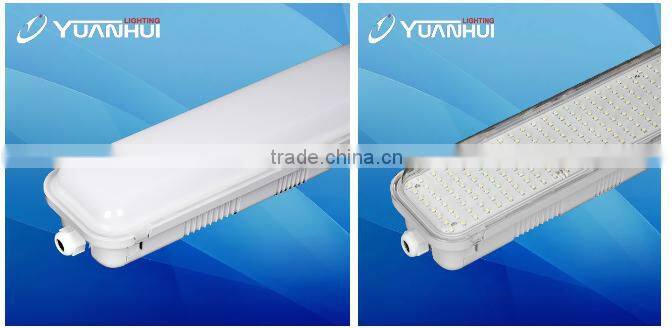

5 Foot Residential Plastic Housing and Diffuser Led Tri-proof Lamp
Specifications
IP65 LED tri-proof lampAC:100-240V, 277V 50/60Hz
95lm/w Ra>80 5yrs Warranty
UL, DLC, GS,CE, EMC, ROHS, SAA
Model:WP-22W
1.Model Name:LED Waterproof light
2.Model No:WP-22W
1.Housing Material:PC
2.Diffuser Material:PC
3.Product Size (mm):600*110*86
1.Input Voltage:AC100-240V
2.Input Frequency:50/60Hz
3.Power Factor:≥0.95
4.Input Power:25W
5.Lamp Efficiency:90%
6.LED:3528
7.LED Quantity:336PCS
8.LED Lumen:Clear Diffuser:2500LM / Opal Diffuser:2100LM
9.Color Temperature:Warm White:2700-3000K Cool White:4000-4500K
Daylight:6000-6500K
10.Ra:Ra>70
11.Working Temperature:Working Environment: -35°C-45°C
12.IP Rated:IP65
13.Lifetime:>35000h
1).Luminous Intensity Distribution Diagram:
2).AAI Figure:

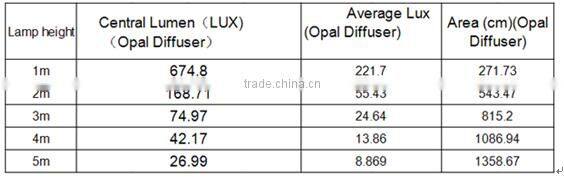

3).Illumination data:
Production Process
Company Profile
1. Established in 2008
2. Over 200 employees
3. 15,000 square meters factory area
4. 5years export experience of lightng
5. 3000,000 yearly capacity for lighting fixtures
Certificates:CE-LVD, ROHS, EMC, GS, SAA, C-TICK, UL,CUL, DLC, CCC
