LED Aquaproof Lighting Fixture With High Lumen
US$ 30 - 100
MOQ: 200 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD3528
Input Voltage(V):
100-277
Lamp Power(W):
76
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IP65 Aquaproof Lighting FixtureUS$ 30 - 100MOQ: 200 Pieces -
High Lumen 6 Foot LED Non Corrosive Fittings With CEUS$ 30 - 100MOQ: 200 Pieces
-
High Lumen 5 Foot LED Non Corrosive Fittings With CEUS$ 30 - 100MOQ: 200 Pieces
-
High Lumen 4 Foot LED Non Corrosive Fittings With CEUS$ 30 - 100MOQ: 200 Pieces
-
High Lumen 2 Foot LED Non Corrosive Fittings With CEUS$ 30 - 100MOQ: 200 Pieces
LED Light Source
SMD3528
Input Voltage(V)
100-277
Lamp Power(W)
76
Lamp Luminous Flux(lm)
7600
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-20, 50
Working Lifetime(Hour)
50000
Lamp Body Material
PC
IP Rating
IP65
Certification
CE, C-tick, EMC, GS, LVD, SAA, UL
Warranty(Year)
5
Place of Origin
Zhejiang, China
Brand Name
YUANHUI
Model Number
WP-22W
Specifications
LED Aquaproof lighting fixtureLED: EPISTAR 3528, MEANWELL driver,
Voltage: 100-277v, 50/60Hz
Five years warranty
Technical Data:
Name: LED IP65 Aquaproof lighting fixture
Voltage: AC 100V-240V
Frenquency:50/60Hz
PF>0.9
LED:SMD3528
LED Driver: Constant current sink LED driver
LED lifetime: More than 50000hours
Ta: -25degree to 50 degree
IP Rate: IP65
Class: II
Specification of IP65 LED non corrosive fittings :
- Imported plastic material (heat conduction) and Aluminum plate (heat dissipation) for housing
- LED: 3528 Epistar
- Driver: Meanwell LPF series
- Opal or transparent polycarbonate diffuser with UV protection for an optimum light distribution
- Impact resistance: IK08
- Glow Wire Test: 850 degree
- Natural silicon gasket to ensure IP65 rate
- Stainless bracket fixation: Ceiling Fixation/ Wall-Mounted/ Suspension Chain by the triangel provided
- Easy installation and quick wiring connection to ensure save much labor cost
- Emergency kit can be puted inside
- Presence Sensor
- PG13.5 cable gland
| Model No | Total Power | Ra | Lumen | CCT | Product Size (mm) | LF(mm) | Qty/CTN | Carton Size (mm) |
| WP-22W | 25W | >80 |
2500lm |
2700-3000k 4000-4500k 6000-6500k |
600*110*86 | 360 | 4 | 710*290*230 |
| WP-44W | 48W | 4500lm | 1200*110*86 | 765 | 4 | 1280*290*230 | ||
| WP-56W | 60W | 6400lm | 1530*110*86 | 940 | 4 | 1620*290*230 | ||
| WP-76W | 88W | 7200lm | 1860*110*86 | 1270 | 4 | 1950*290*230 |

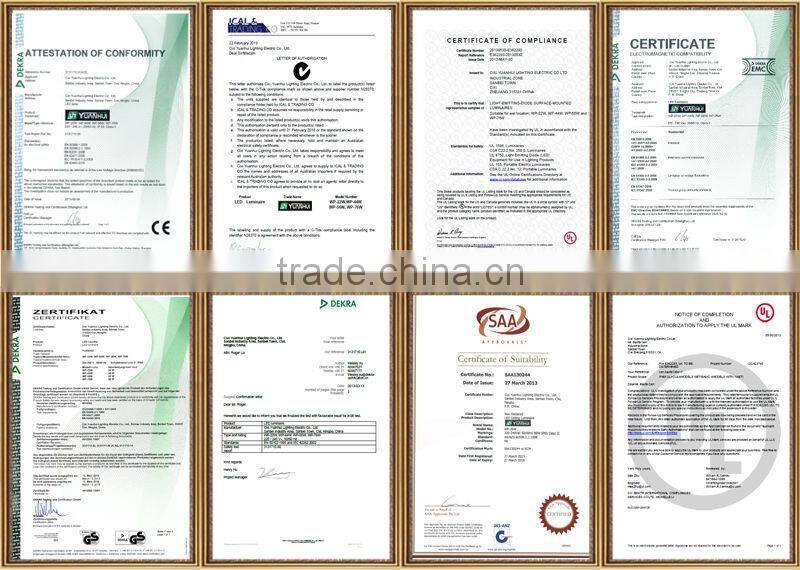

Certificates:

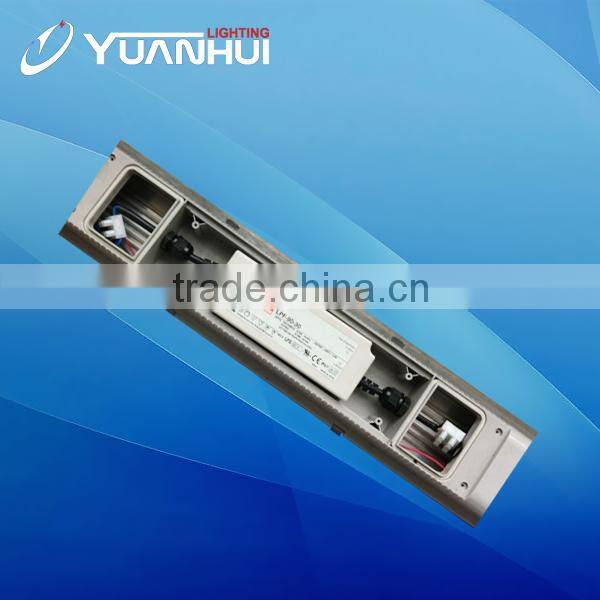

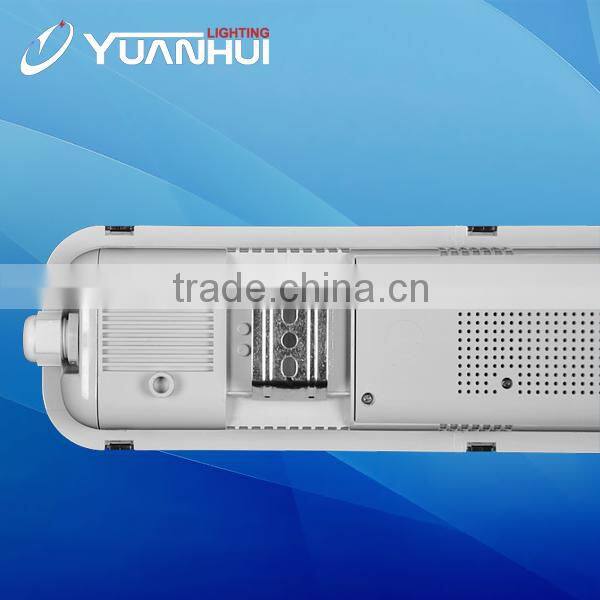

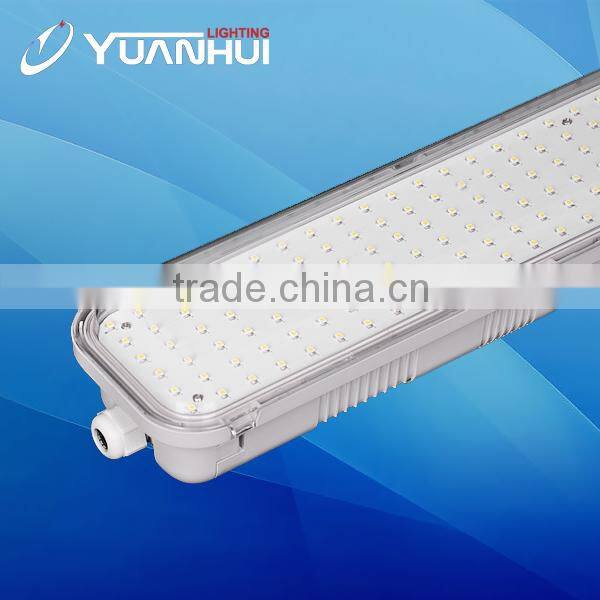

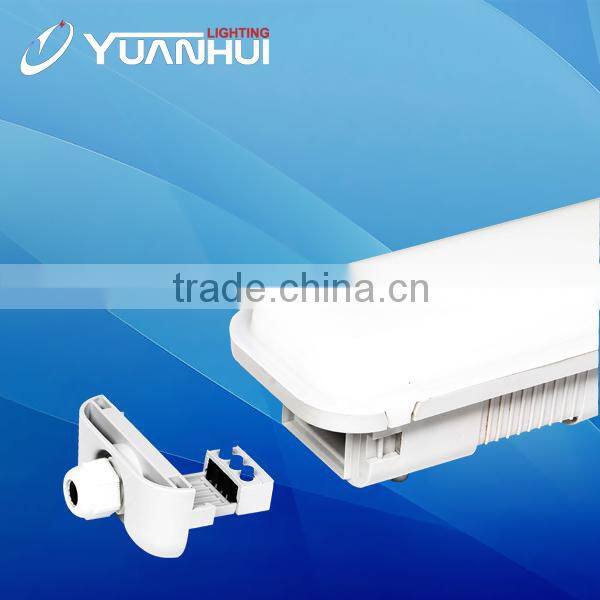

Product Pictures:

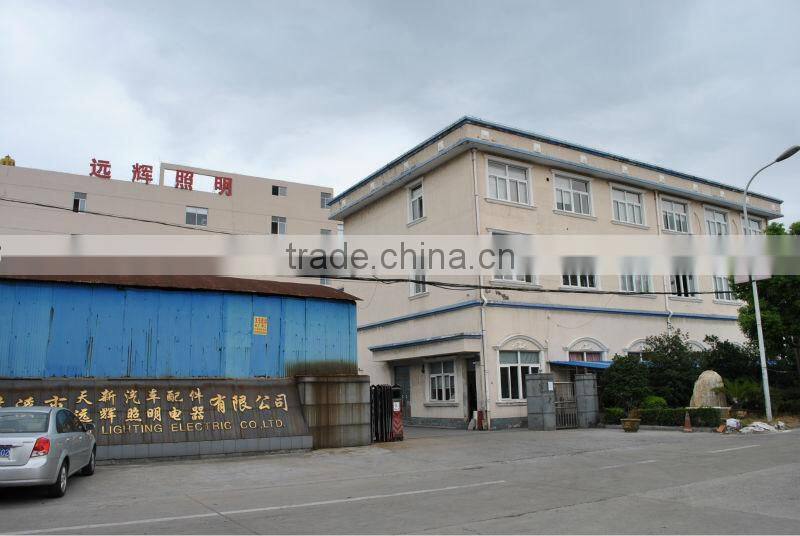

Factory Pictures:
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
