Product Details
Place of Origin: | Guangdong, China | Brand Name: | Foreth | Model Number: | bakelite sheet&bakelite rod |
Type: | Other, Insulation Sheet and Insulation rod, Phenolic cotton cloth laminated rod | Material: | Other, phenolic cotton cloth,Phenolic resin and cotton cloth | Application: | Other, High Voltage,insulating structural parts |
Rated Voltage: | 20kv | Tensile Strength: | 120 |
Product Description

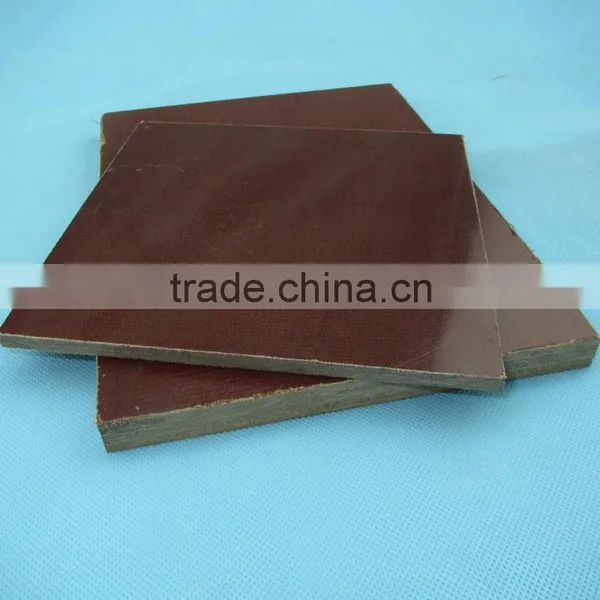

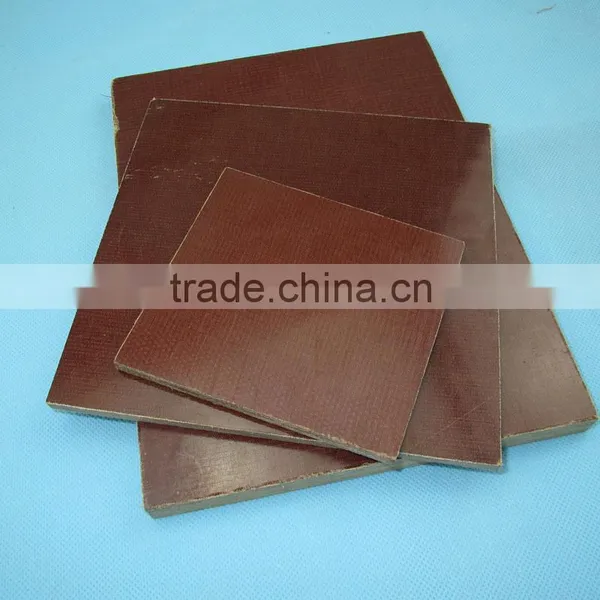

Molding compound Bakelite sheet
1.What is Bakelite?
A. Bakelite :
- Bakelite(sometimes spelled Baekelite) is a combination of phenol, formaldehyde, and wood flour. The mixture is put under pressure, and after curing, a hard plastic material forms.
- Bakelite 3021:also called Paper-based phenolic laminated sheet, is consists of impregnated paper dipped in resin by baking and hot pressing.3021 is the most commonly seen laminates,as well as having the widest applications and largest usage.
- Bakelite 3025: also called Phenolic cotton cloth laminated sheet is consists of cotton cloth dipped in phenolic resin by baking hot pressing.3025 is manufactured by modified phenolic resin as binder and pure cotton fabric as reinforcement.They have exceptionally good heat resistance and will not creep under high temperature conditions.
B.Bakelite Sheet / rod features
- Excellent physical,mechanical and dielectric properties
- Withstand all kinds of machining
- Surface smooth, no bubbles, hemp eye and impurities
- Edges cutting tidiness, Surface without delamination and crack
C.Bakelite Sheet / rod applications
- In insulating structural parts
- Electric equipments
- Aeronautical industries
2.The specification of our Bakelite Sheet / rod
A.The size we can produce of Bakelite Sheet
Item | Bakelite Sheet | |
3021 | 3025 | |
Color | Brown, Orange | Black, Red, Coffee |
Thickness | 3-100mm | |
Width*Length | 1220*2440mm 2000*1000mm, or customized |
B.The size we can produce of Bakelite Rod
Item | 3025 Bakelite Rod |
Color | Black, Red, Coffee |
Diameter | 20-150mm |
Length | 1000mm, 2000mm,or customized |
C.The technical parameters of our Bakelite rod
Item | Unit | Value |
Density | g/cm3 | 1.45 |
Heat resistance | ℃ | 140 |
Water absorption | % | <1.5 |
Flammability class | UL94 | HB |
Bending strength | MPa | ≥120 |
Compression strength | MPa | ≥250 |
Tensile strength | MPa | ≥100 |
Insulation resistance(After flooding) | Ω | 1.0*107 |
Packaging | 1. pallet with carton. |
2. Plastic pallet with carton. | |
3. Wooden wooden pallet with wooden case. | |
4. According to customer requirements. | |
Delivery | 1. Stock size 3-5 working days. |
2. Custom size 8-15 working days. | |
packaging of Bakelite rod |
