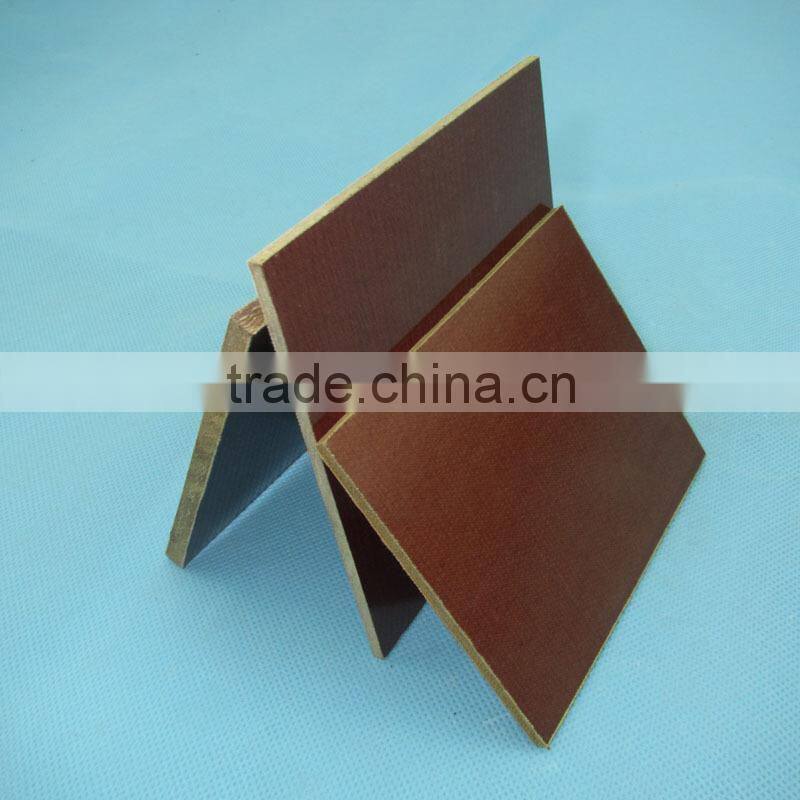

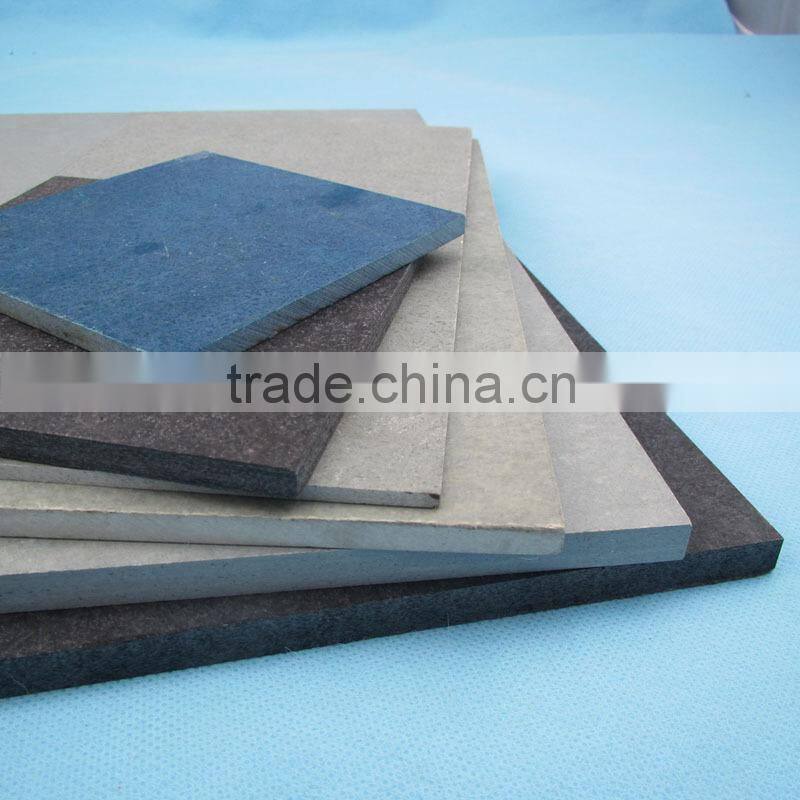

Excellent High Temperature Electrical Performance Stability FR4 Epoxy Glass Fiber Sheet
1.What is FR-4 Epoxy Fiberglass Sheet?
A. FR-4 Epoxy Fiberglass Sheet :
- FR-4 (or FR4) is a grade designation assigned to glass-reinforced epoxy laminate sheets, tubes, rods and printed circuit boards (PCB). FR4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).
- "FR" stands for flame retardant, and denotes that safety of flammability of FR4 is in compliance with the standard UL94V-0. FR-4 is created from the constituent materials (epoxy resin, woven glass fabric reinforcement, brominated flame retardant, etc.) by NEMA in 1968.
- FR-4 Epoxy Fiberglass Sheet is a popular and versatile high-pressure thermoset plastic laminate grade with good strength to weight ratios. With near zero water absorption, FR-4is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.
B.FR-4 Epoxy Fiberglass Sheet features
- Good mechanical workability.
- Good heat resistance and moisture resistance.
- In high temperature electric performance is stable.
- Higher mechanical properties and dielectric properties.
- In the middle temperature with high mechanical properties.
C.FR-4 Epoxy Fiberglass Sheet applications
- Used in mechanical, electrical and electronic high insulation structure parts.
- Used in high-performance electrical insulation requirements.
- Chemical machine parts.
- General machines parts and gear, generators, Pads, base, baffle.
- Generator, transformer, fixture, inverter, motor
- Electric insulation component.
2.The specification of our FR-4 Epoxy Fiberglass Sheet
Item |
Name |
FR-4 Epoxy Fiberglass Sheet |
Grade |
Grade A |
|
Type |
ESD, Common |
|
Sample |
Free of charge, customer pay the freight |
|
Specification |
Density |
2.2g/cm3 |

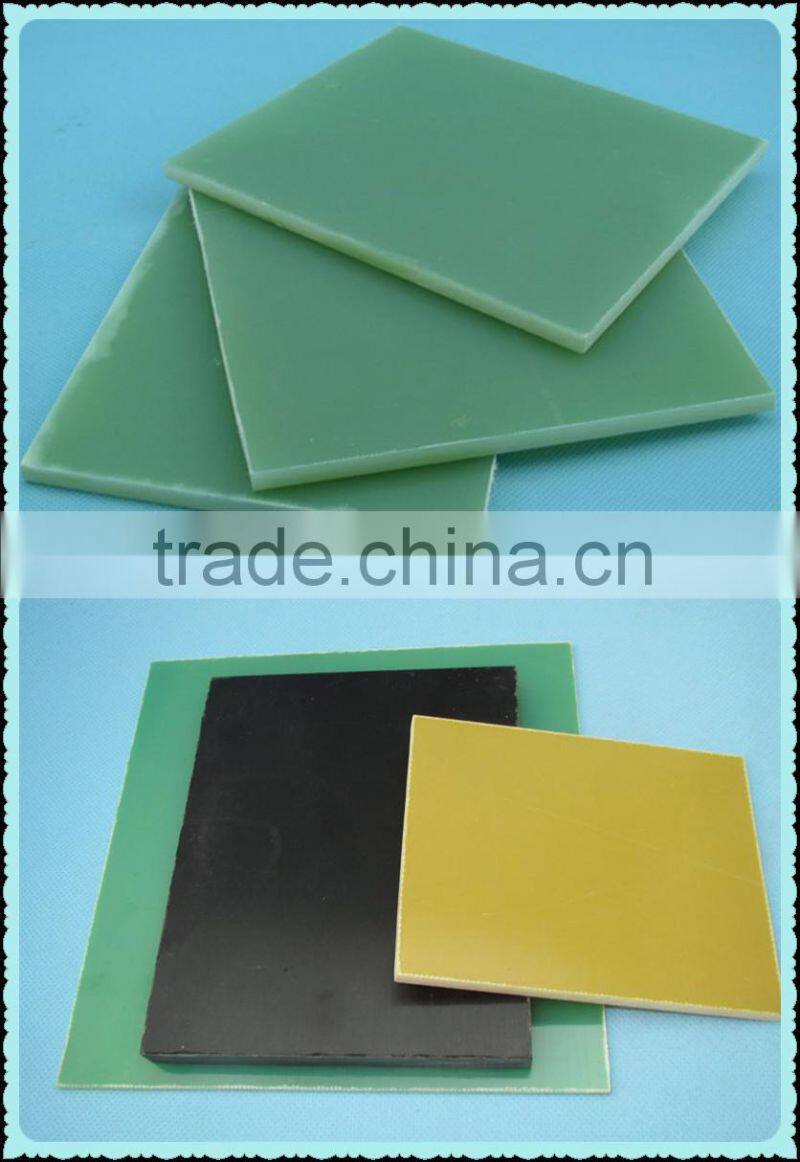

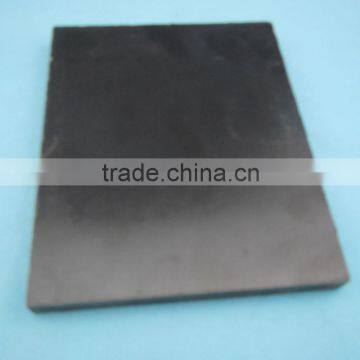

Color |
Green, Black |
|
Sheets Thickness |
0.15mm-50mm |
|
Stock Size |
1020*1220mm. 1220*2440mm |
|
Size |
Can be customized |
|
Attribute parameter |
Heat resistance |
170°C |
Water absorption |
<1.8% |
|
Flame retardant |
UL94 V-0 |
|
Tensile Strength |
≥340MPa |
Packaging |
1. pallet with carton. |
2. Plastic pallet with carton. | |
3. Wooden wooden pallet with wooden case. | |
4. According to customer requirements. | |
Delivery |
1. Stock size 3-5 working days. |
2. Custom size 8-15 working days. | |

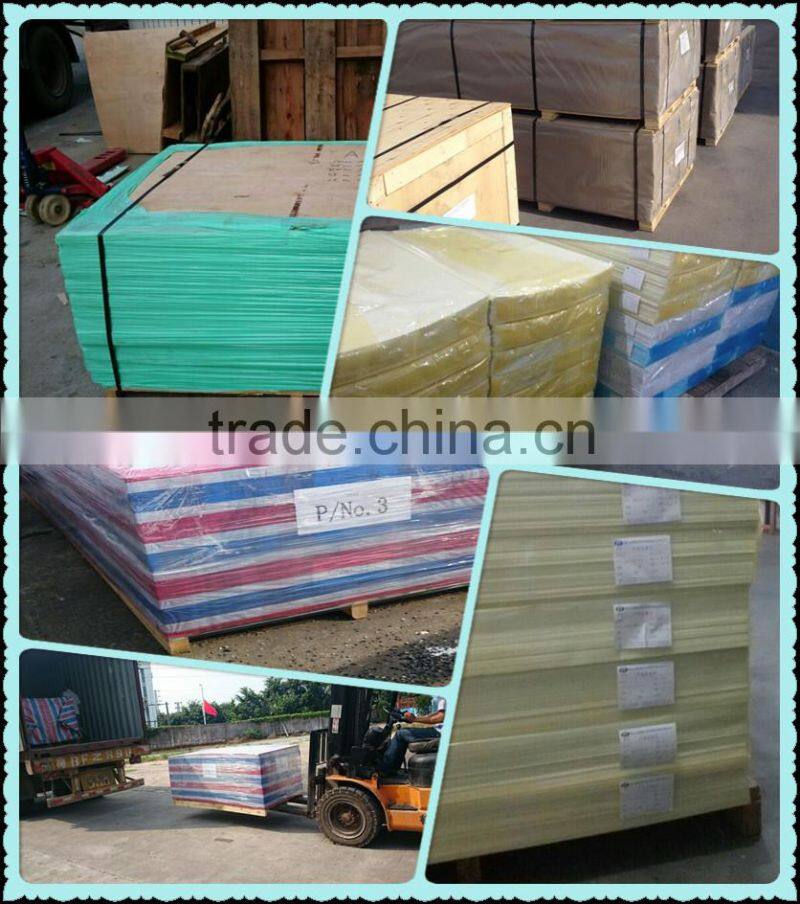

packaging of FR-4 Epoxy Fiberglass Sheet | |
1. Q:Why Choose Hongfu Manufacturing?
1) Competitive Prices
• FORETH Manufacturing's key strength is its ability to manufacture products based on optimal economies of scale, offering you the most competitive prices in the market.
• With our own in-house engineering design, tooling and fabrication abilities we manufacture a wide range of high quality products including tooling and pre -production prototyping. Our in-house services allow us to keep costs to a minimum and give us the freedom to customise our products to your needs.
2) In Stock
• With a wide range of stock at our warehouse as well as easily accessible stock at our own international production facilities, we are able to meet your requirements whenever you need it.
3)Customised Products
• We stock a wide range of engineering plastics for general engineering applications and offer manufacturing and machining services.
• Some of our engineering plastic products that we stock are PTFE, UHMWPE, Acetal's, and Nylon's in forms of rod, sheet and tube.
• Customised engineering products, machining and cut to size services are also available.
2. Q: How quickly can a product be produced or repaired?
A: Depending on the workload and the job itself, there is normally a five to ten workday lead-time before a product is made. We do give priority to breakdowns, especially if they are for regular clients who cannot continue aspects of their business without the plastic repairs being carried out. We understand that some of our products are used in machines that operate constantly, are in hard-to-reach places within a system, or are vital to the general running of an operation. Get in touch with us to discuss your needs.
3. Q: What type of cutting services are available ?
A: Here is a great way to save time, we can cut any of our standard items into your custom sizes using our on-site cutting facilities. We have various levels of service depending on the quantity required. All you need to do is choose your material and then go to "Cutting Service" to choose the level of service you require. We provide loose cut of any sizes, rollers, fabrications, profiles and moulding to suit your needs. Where special sizes or shapes are required by our customers, we are able to customize these products according to individual requirements.
4. Q: What's the MOQ of our product ?
A:Normally,the MOQ is 500kg,however the sample signle is also accepable.
5. Q: Which would be the best plastics for UV resistance?
A: Most plastics are affected by UV although PTFE provides very good resistance. In other materials, Black offers a reasonable protection option.
6. Q: Which are the best wear resistant plastics?
A: Engineering plastics are exceptionally good at wear and abrasion resistance, UHMWPE and Nylon are particularly good.

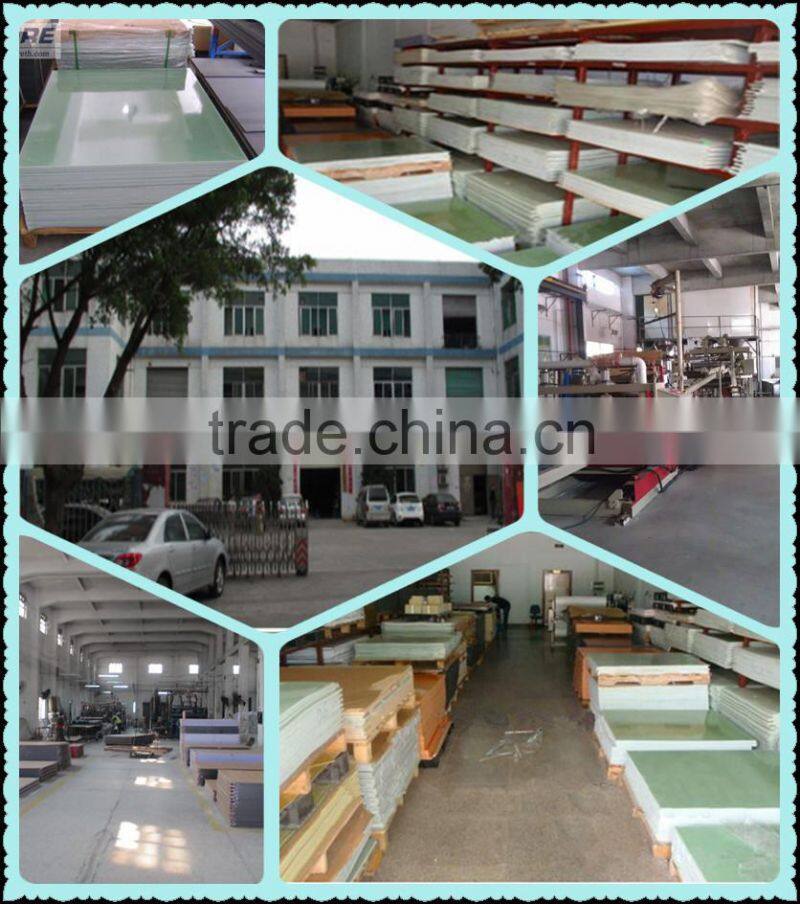

Foreth Industrial Co., Ltd is a privately owned factory focuses on the Engineering Plastic and Insulation Material. Foreth now is the leading supplier of engineering thermoplastic in stock shapes and components in China. With more than 10 years of producing experience, the company becomes a respected Manufacturer, Supplier and Exporter whose product range encompasses Insulation Material and Engineering Plastic.
Foreth are committed to provide the best quality, competitive price and timely delivery. In the meantime, we ensure proper functioning of production, packaging, marketing and distribution processes.
Other products of our company (Click the picture as you interested in) | ||
|
|
|

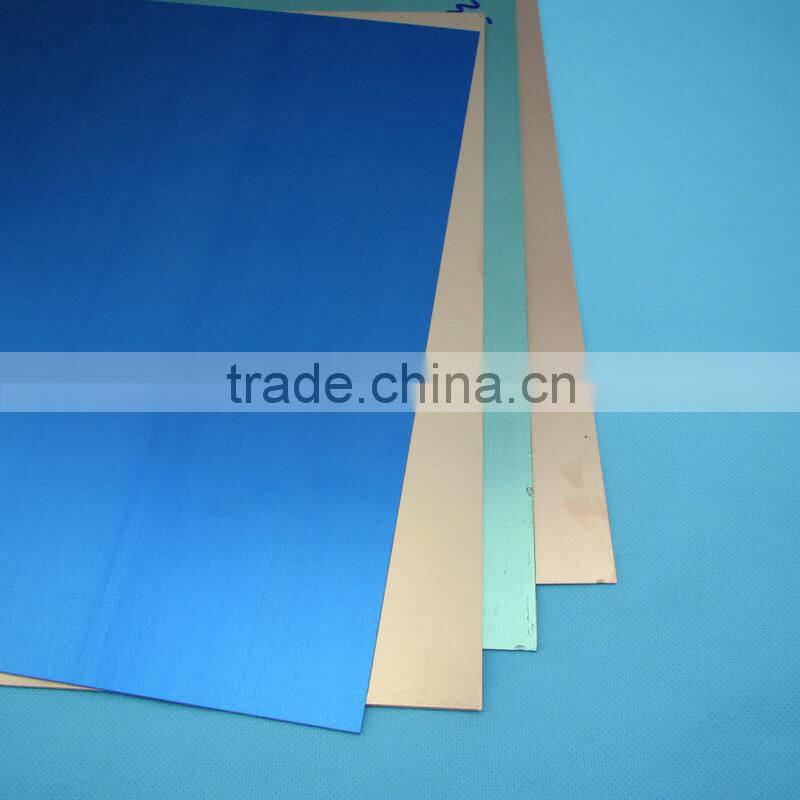

Aluminum copper clad laminate sheet |
Bakelite |
Wave solder pallet material Durostone |
