Heat Insulation Nanometer Glass Fibre Reinforced Plastic Composite Material Durostone
- 50 Ton / Tons per Month
- shenzhen
- T/T Credit Card
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HF290010 | Model Number: | Hongfu |
Type: | Other, Insulation Sheet, Common type,ESD type,ESD&Optical type | Material: | Other, Fiberglass & epoxy | Application: | Other, High Temperature, wave solder pallet or SMT carriers fixture |
Rated Voltage: | 600V | Tensile Strength: | 100MPa |
Product Description
Heat Insulation Nanometer Glass Fibre Reinforced Plastic Composite Material Durostone
Applications of our high quality durostone sheets?
(1)all process of SMT(2) Insulation Test Fixture
(3)Wave and reflow soldering
(4) Tray and fixture of tin stoves
(5)Where high temperature and high strength is needed
1. What sizes and type of durostone sheets we can make?
Item | Color | Type | Thickness | Size |
Durostone | Grey | Commom | 3-20mm | 1220*1220mm 1220*2440mm |
Blue | ESD | |||
Black | Esd&Optical |
2. What are the technical parameter of our high quality durostone sheets ?
Technical data | Heat-resistant nanometer compound material complex stone | ||
Grade(Type) | Common type | ESD type | ESD&Optical type |
Color | Blue | Black | Grey |
Density(g/cm³) | 1.85-1.9 | 1.85-1.9 | 1.85-1.9 |
Flexural Strength(Mpa) | 380 | 380 | 380 |
Waterabsorption | <0.18 | <0.18 | <0.18 |
Coefficient of Linear Expansion(106/K) Between 30℃-250℃ | 14 | 12 | 12 |
Thermal Conductivity(W/m*K) | 0.25 | 0.25 | 0.25 |
Maximum Operating Temperature(℃) 10-20 seconds | 360 | 360 | 360 |
Continuous Operating Temperature(℃) | 280 | 280 | 280 |
Surface Resistivity(ohms) |
| 105-109 | 105-109 |
Modulus of Elasticity(Mpa) | 18000 | 18000 | 18000 |
Specific Heat Capacity(J/kg*K) | 930 | 930 | 930 |
Barcol Hardness(Mpa) | 80 | 80 | 80 |
Maximum Size(mm) | 1220*1220 | ||
Thickness available(mm) | 0.5-30mm | ||
Thickness Tolerance | ±0.1mm | ||
Flatness Tolerance | ±0.1mm | ||
Parallelism | ±0.1mm |
3. Main Characteristic of our durostone sheets
- Good Anti-static property
- High strength and good machinability
- High temperature resistance
- Tight machining tolerance
- Chemical resistant
- Long life cycle

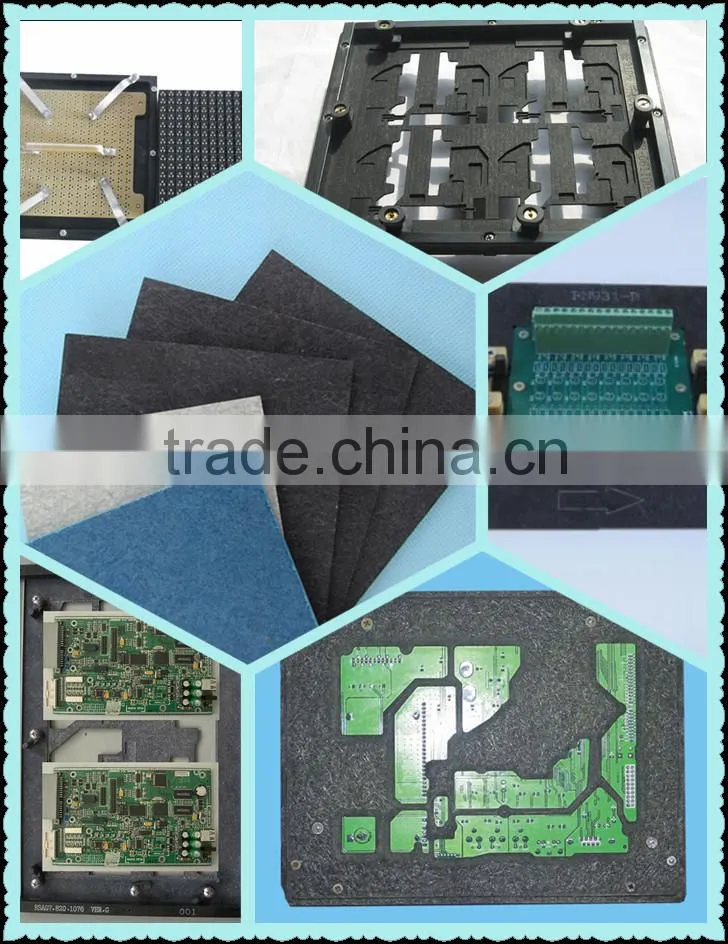

4.Durostone's function in PCB assembly
- Avoid pollution due to human contact
- .Reduce disposal rate
- Prevent PCB from bending
- Standardize the width of production line
- Impove producion capacity by using muti-functional fixtures
- Cover the SMT parts at bottom,make the partial welding available
5. What are the advantages of our factory ?
1). Competitive Prices
• Ours key strength is its ability to manufacture products based on optimal economies of scale, offering you the most competitive prices in the market.
• With our own in-house engineering design, tooling and fabrication abilities we manufacture a wide range of high quality products including tooling and pre -production prototyping. Our in-house services allow us to keep costs to a minimum and give us the freedom to customize our products to your needs.
2). In Stock
• With a wide range of stock at our warehouse as well as easily accessible stock at our own international production facilities, we are able to meet your requirements whenever you need it.
3). Customized Products high temperature teflon sheets
•We stock a wide range of engineering plastics for general engineering applications and offer manufacturing and machining services.
•Some of our engineering plastic products that we stock are PTFE, UHMWPE, Acetal's, and Nylon's in forms of rod, sheet and tube.
•Customized engineering products, machining and cut to size services are also available.

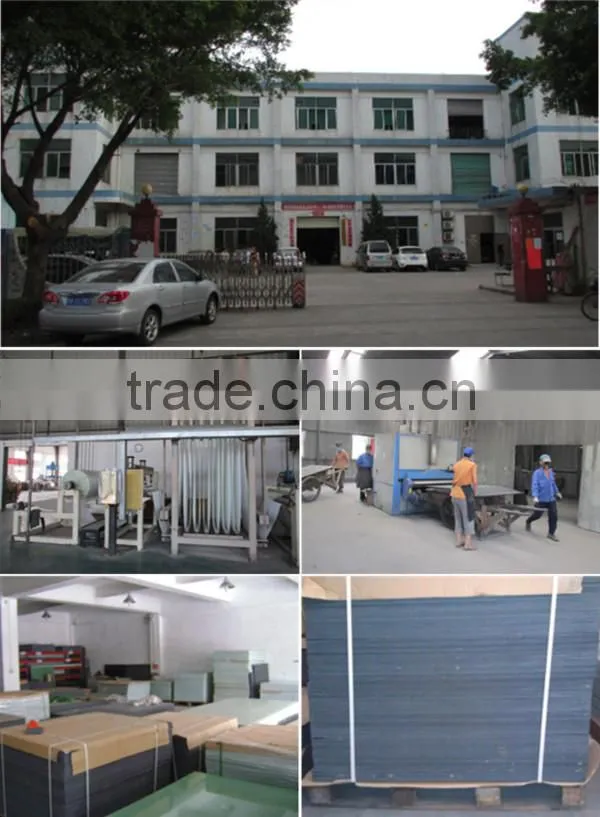

6.Factory show:
Please have no hesitation to contact us if you have any questions~
We will be your best business partner to help you achieve greater benefits!!
Best wishes and hope your happiness~
-Aglaia- skype:aglaia420
