Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber Optic Splice Closure

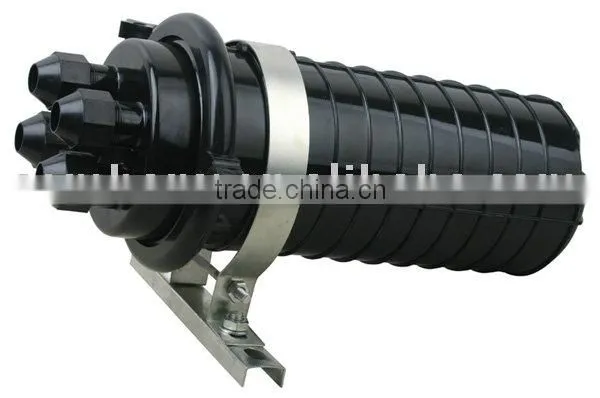

Fiber Optic Splice Closure

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Cixi Sembanx Electronic Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Specifications

fiber optic splice closure

-40 ~ +55

Atmospheric pressure 70KPa ~ 106 KPa

Sealing pressure 70KPa,72 hours : internal temperature, pressure does not drop

Room temperature : 20 ° C temperature cycling, high and low temperature (-40 ° C ~ +60 ° C) retention time is not less than four hours. 12 a small circle of internal pressure 5KPa 60KPa ± 10 times, 5KPa pressure drop less than amplitude. Immersed in the water container at room temperature stability observed 15 seconds without bubbles escape.

70KPa : internal pressure high temperature sealing, maintained at 60 ° C for 168 hours, not pressure drop

Additional fiber attenuation : at no additional attenuation in the host entwine

Seal : connecting cable insulation resistance, and metal pieces between pieces of metal and insulation resistance between the earth and larger than 10M Ω

The breakdown voltage : metal, metal and earth to 15KV electric strength between the DC, not a two-minute breakdown. no fly arc phenomenon

Life expectancy : Life aging joints boxes and materials in more than 20 years

Order Guide :

Type	Specifications (mm)	Cable access hole configuration	Weld disk models	Maximum capacity (Core)
GL08-1-	Length 410 diameter 140	Second out into two	12/24 core fusion site	1144
GL08-1-	Length 410 diameter 140	one out into one	12/24 core fusion site	1144
GL08-1-	Length 410 diameter 140	Three out into one	12/24 core fusion site	1144
GL08-1-	Length 410 diameter 140	Second out into one	12/24 core fusion site	1144

The company specialized in the production of various kinds of Fiber Optic Cable, the cable connection boxes, cable connection kits cable joints extinguishers and other products.
