Specifications
Watertight linear heat detectorNon Polar 2 wire conventional output
12V or 24V
Delivery in time
Extended Warranty
Name
Heat Sensor Circui

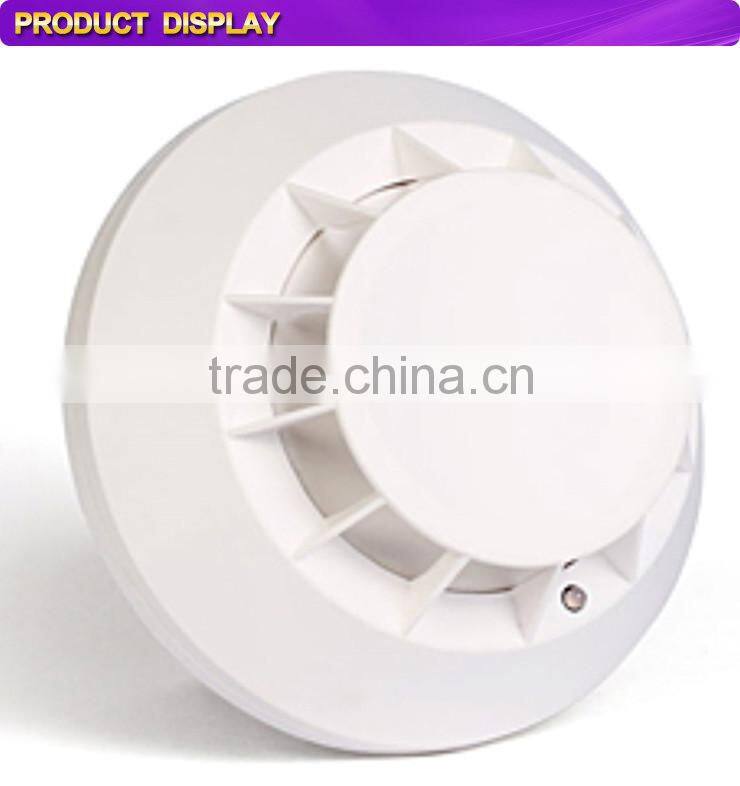

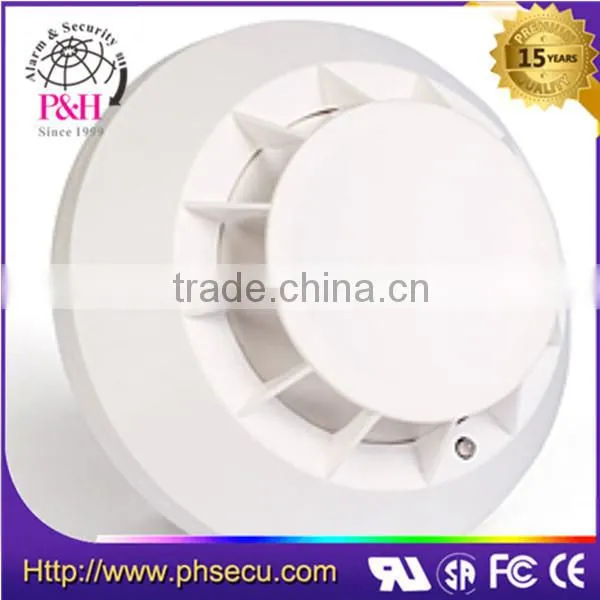

Wired High Quality Heat Sensor Circui
Features
1. Non Polar 2-wire, conventional output
2. Modern stylish design
3. Low Power consumption
4. Power-off reset function
5. Easy Installation and maintenance
6. Extended warranty
Technical Data:
Model |
H61 |
Voltage Range |
DC9-35V |
Standby Current |
55uA |
Alarm Current |
40mA@12V;25mA@DC24V |
Alarm Output |
Remote LED output |
Installation Method |
Ceiling Mounted |
Operating Temperature |
-10℃ ~ + 50℃ |
Operating Humidity |
less than or equal to 90%RH |
Dimensions |
100mm(Dia)*40mm(H) |
Ordering information
Model |
Alarm Temperature |
H61-2-FH |
Fixed Temperature (57ºC,135F) sensor |
H61-2-RH |
Rate of Rise (8-15ºC/min) heat sensor |
