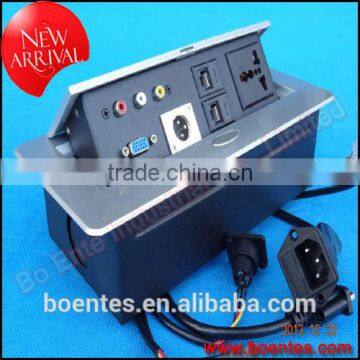

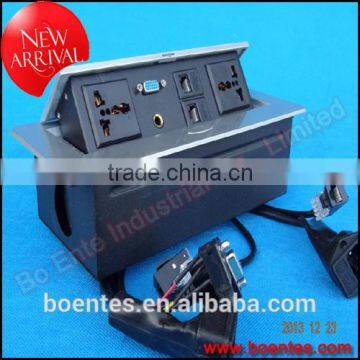

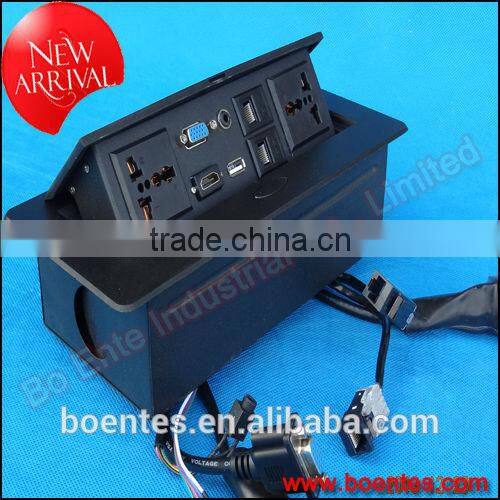

Pop Up HDMI Desktop Socket Conference table socket with connected wires
Introduction:
Desktop Socket series offer a solution of compact & beautiful desktop signal connection. The socket could be easily and conveniently connected with the electric equipments. Tabletop Socket is designed for connection of video, audio, computer video, network, telephone and power, etc. When the mechanism is opened, kinds of electric wires and data wires could be inserted and connected into the box.
Press the top of the conference table socket, the mechanical Locking device inside the desktop socket plugs will be released and the connection panel will be opened smoothly by the Pneumatic Support Structure, and use the seams on the panel which user could connect Video, Audio, Network, Telephone, Power and so on. After using the tabletop power data connectors, Just press the panel cover, the Mechanical Locking Device inside the desktop power outlets will lock the box. The locked connection box is flush with the tabletop and all the connections are hidden dexterously. The neat & elegant topside of the box together with the tabletop form an integrated mass.
All socket had connected with connected wires, customer no need to connect wires during used !
Feature:
Desktop Socket by pneumatic pressure gas pole quietly
Table top of Tabletop ocket is mountable
The zinc alloy plate of pop up desktop socket is 5mm
Different sockets into office power data outlets could be added as required
Round or Square corner of tabletop power outlets is available for selection
Silver or black socket of manual socket box is available
Various versions of power socket is available
All socket with multiple connected cables
Characteristic
1, high quality zinc alloy finishing panel
2, A=A strong carton with foam cushion and waterproof film
3, silver/black is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made with different modules is available
7,Quality had approved by CE certificate.
Application:
Desktop socket is widely used on office furniture, high tier office, luxury conference table, hotel and multimedia classroom and training room.
Parameter:
| Item Name | Economic Desktop Socket | |
| Item Series | BD Series | |
| Item Model | BD630-1R | |
| Material | Panel | zinc alloy |
| Case | steel | |
| Size | Panel | 266*130mm |
| Case | 224*109*68mm | |
| Color | black | |
| Corner | Round/Sqaure | |
| Configurtion | 2-Universal Power,2-Network, 1-HDMI, 1-VGA,1-USB,1-Audio | |
| Conncted Wires | 30cm | |
| Packing | 10pcs/ctn | |
| Packing Size | Inner | 14.5*9*29 cm |
| Master | 31*31*46 cm | |
Other models:
| Item Model | BD6011 (Round) | BD6021 (Square) |
| Material | zinc alloy | zinc alloy |
| Panel Size | 266*130*7mm | 266*130*7mm |
| Box Size | 224*109*68mm | 224*109*68mm |
| Color | black/silver | black/silver |
Selectable Parts : (Customized Made according to requirement )
|
Power Socket (Selectable ) |
Universal |
100-240V AC,50/60HZ,5A |
US version |
100-240V AC,50/60HZ,5A |
|
UK version |
100-240V AC,50/60HZ,5A |
|
Central EU version |
100-240V AC,50/60HZ,5A |
|
FR and BL version |
100-240V AC,50/60HZ,5A |
|
South Africa version |
100-240V AC,50/60HZ,5A |
|
Australia version |
100-240V AC,50/60HZ,5A |
|
|
Connector (Selectable) |
Computer |
15 pin HD VGA female |
Audio |
3.5mm stereo female jack |
|
Video |
RCA female |
|
Lan |
RJ45 ( CAT5e/ CAT6) network/data |
|
Telephone |
RJ11 voice |
|
USB |
USB2.0/3.0 female |
|
HDMI |
HDMI 1.3 female |
|
Microphone |
6.5mm stereo female jack |
|
XLR |
female jack |
|
DVI |
Female jack |
|
Switch |
press switch |
|
Working temperature |
5°C ~ 45°C |
|
Working humidity |
10% ~90 % |
|
Storage temperature |
- 20 °C ~70 °C |
|
Storage humidity |
5% ~95 % |
|
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of desktop socket is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
Pictures:
CE Certifications:
There are various models of economic desktop socket with different standard power and different socket for your choice!
There are hydraulic pop up box, electric rotating desktop socket, aluminum cable cubby and flip up tabletop outlets for your selection !
Feel free to contact us if need customized model !
