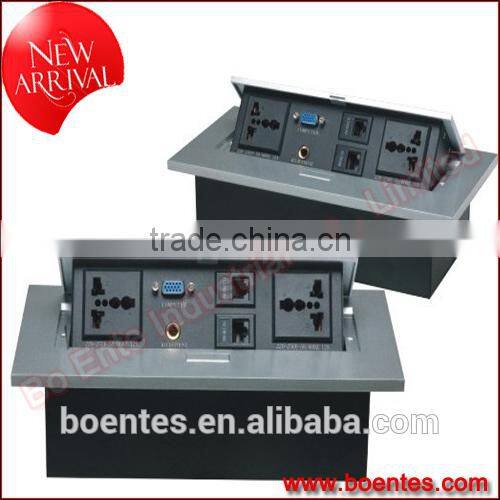

multifunctional pop up electrical outlets/Silver Desktop Connectors for furniture

Specifications

hidden desktop socket
zinc alloy material
round or square corner
4mm panel thickness
hidden under the desk if unused

multifunctional pop up electrical outlets/Silver Desktop Connectors for furniture



Introduction:

Desktop Socket series offer a solution of compact & beautiful desktop signal connection. The sockets could be easily and conveniently connected with the electric equipments. Desktop power plugs is designed for connection of video, audio, computer video, network, telephone and power, etc. When the mechanism is opened, kinds of electric wires and data wires could be inserted and connected into the box.



Press the top of desktop connectors, the mechanical Locking device inside the manual socket box will be released and the connection panel will be opened smoothly by the Pneumatic Support Structure, and use the seams on the panel which user could connect Video, Audio, Network, Telephone, Power and so on. After using the desktop pop up box, Just press the panel cover, the Mechanical Locking Device inside the tabletop power outlets  will lock the box. The locked connection box is flush with the tabletop and all the connections are hidden dexterously. The neat & elegant topside of the box together with the tabletop form an integrated mass.



Feature:

Desktop Socket by pneumatic pressure gas pole quietly

Table top of desktop power plugs is mountable

The zinc alloy plate of spring up tabletop connectors is 5mm

Different sockets into desktop power socket could be added as required

Round or Square corner of desktop power data box is available for selection

Silver or black socket of tabletop interconnect box is available

Various versions of power socket is available



Characteristic

1, high quality zinc alloy finishing panel

2, A=A strong carton with foam cushion and waterproof film

3, silver/black is available for color selection

4, Power plug and voltage could be changed accordingly.

5, OEM with logo on product and packing is available

6, Customized made is available



Application:

Hidden desktop socket is widely used on office furniture, high tier office, luxury conference table, hotel and multimedia classroom and training room.



Parameter:

Item Model	BD610-1S
Material	zinc alloy
Panel Size	266*130*7mm
Box Size	224*106*68mm
Color	silver or black
Detail Sockets	2-Power,2-RJ45, 1-VGA, 1-Audio

Selection Parts for customized Model:

Power Socket                           (Selectable )	Universal	100-240V AC,50/60HZ,5A
	US version	100-240V AC,50/60HZ,5A
	UK version	100-240V AC,50/60HZ,5A
	Central EU version	100-240V AC,50/60HZ,5A
	FR and BL version	100-240V AC,50/60HZ,5A
	South Africa version	100-240V AC,50/60HZ,5A
	Australia  version	100-240V AC,50/60HZ,5A
Connector                (Selectable)	Computer	15 pin HD VGA female
	Audio	3.5mm stereo female jack
	Video	RCA female
	Lan	RJ45 ( CAT5e/ CAT6) network/data
	Telephone	RJ11 voice
	USB	USB2.0/3.0 female
	HDMI	HDMI 1.3 female
	Microphone	6.5mm stereo female jack
	XLR	female jack
	DVI	Female jack
	Switch	press switch
Working temperature	5°C ~  45°C
Working humidity	10% ~90 %
Storage temperature	- 20 °C ~70 °C
Storage humidity	5% ~95 %





Professional Service:

1, Any of inquiries will be response within 48 hours

2, Sizable accessories of products for replacement

3, Sample of hidden desktop socket is available.



Warranty:

Study the user’s manual carefully before installation.

All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.



Payment:

T/T, L/C, Western Union, Money Gram, Crash is acceptable



Pictures:

There are various models of economic desktop socket with different standard power and different socket for your choice!

There are hydraulic pop up box, electric rotating desktop socket, aluminum cable cubby and flip up tabletop outlets for your selection !

Feel free to contact us if need customized model !
