I. Usage:
SPV-700/1200ZK Series Automatic Hi Speed Vacuum Forming Machine is suitable for processing those sheets including PVC, HIPS, PP, PET, etc. Under various specifications, it can be used for the
forming of disposable fast food containers, instant noodle bowls, western dinner plates,
food coverings (such as sugar boxes, cake boxes and etc), articles of daily use, hardware coverings,
children’s toys and trays for raising seedlings of rice, vegetables and other plantations.
II. Main Technical Parameter:
Suitable Material |
PP/PS/PET/PVC |
Thickness |
0.1-1.2 mm |
Forming Length |
720-1220mm |
Heating Oven Capacity |
26.4KW or 55KW |
Forming Width |
420-720mm |
Motor Power |
2.6KW |
Forming Height |
200mm |
Running Speed |
180-600cycles/hr |
Mode of cutting arrangement |
off-mould |
Air Consumption |
5000-12000L/hr |
Overall Dimension (mm) |
L6680×W2230×H2680 |
Machine Weight |
About 3.2Ton |
Power Supply: 380v/50HZ Tri-phase, four-wire(special power could be provided) | |||

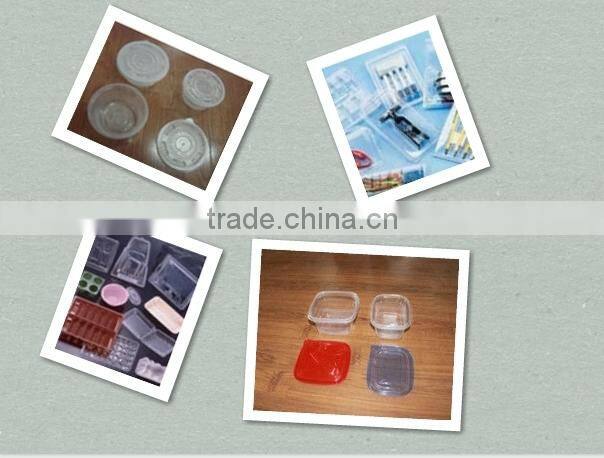

III. Some Samples Made by Vacuum Forming Machine:

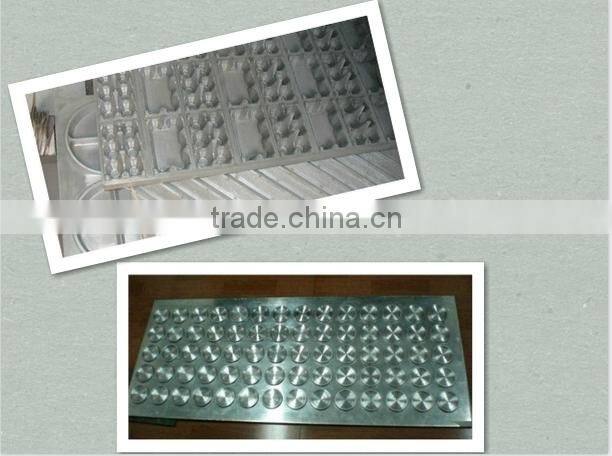

IV. Some Aluminum Moulds For Vacuum Forming Machine:

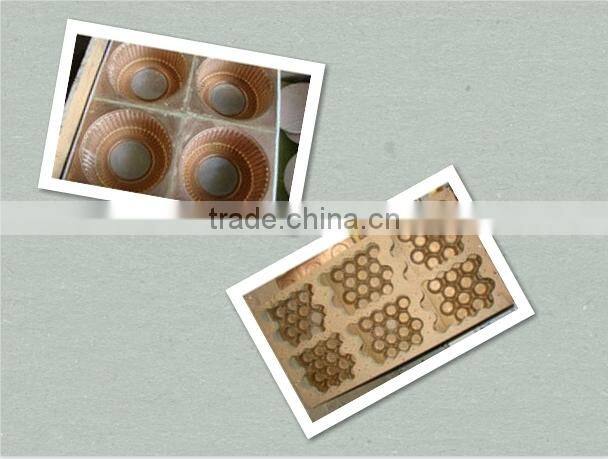

Some Plaster Mould Coated by Copper:
V. Auxiliary Machines For Vacuum Forming Machine:
3. SP-25T Hydraulic Punching Machine
Feature:
It is mainly used for the cutting of fur, paper, plastic, artificial leather, synthesized material and nonmetal with the help of knife mould.
Main Technical Parameter:
Model |
SPT-25T |
Maximum Cutting Capacity |
25T |
Stroke Range |
50-150mm |
Size of the Working Table |
550*1600mm |
Size of the Pressing Plane |
500*1600mm |
Motor Power |
3KW |
Weight |
1500kg |
Dimension |
2070*990*1860mm |
Power Supply |
380V/50HZ, Tri-phase, Four-wire |

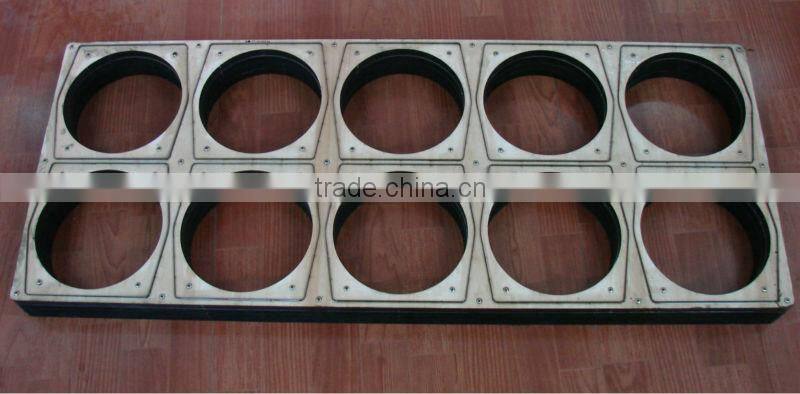

Some Cutting Blades Samples:
Please don't hesitate to contact with me if any more information from us:
Skype: maggielam718
Whatsapp/Viber/Mobile: +86-13958816227
