Full Automatic Plastic Thermoforming Machine for lid, plastic cup making machine

 Automatic Plastic Lid Thermofoming Machine

I. Usage:

SPC-660C Automatic Disposable Plastic Lid Thermoforming Machine  is mainly used to form PP/PS/PET/PVC sheet into various kinds of disposable plasti cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup, etc. It could also make some regular shape products, such as plate, bowl, cover, lid, dish, etc with different moulds.

II. Main Features:

1) The stretching of plugs inside of the upper mould are controlled by air cylinder.

2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter. The feeding length is controlled by the encoder.

3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.

4) The up mould is fixed and the down mould movement is driven by twin cam.

5) There are total 16 heating zones. The temperature of each zone is controlled by Temperature control module.

6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.

7) We adopt square steel to make the machine frame stronger.

8) This machine adopt PLC and touch screen to control.

III. Main Technical Parameter:

According to round cup with Dia.=75mm, we could make a mould with

20 cavities or 21 cavities for this machine.

IV. Some Thermoforming Samples:

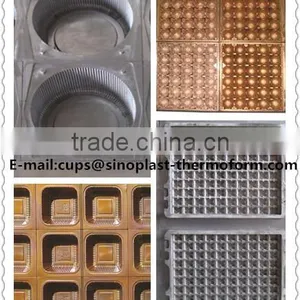

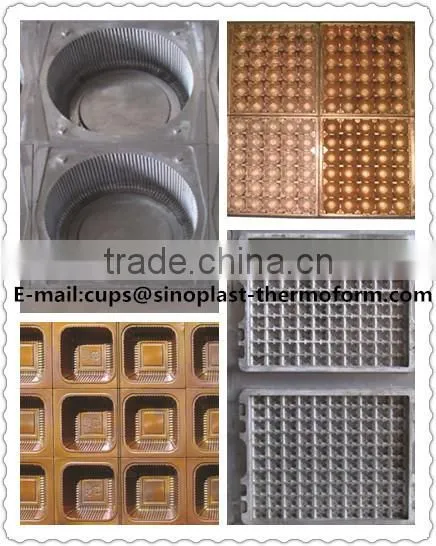

V. Thermoforming Mould Photos:

VI. Auxiliary Machines For Cup Thermoforming Machine:

More details of the products, pls contact with MS. Maggie Lin

Skype: maggielam718

Mobile/Whatsapp/Viber: 0086-13958816227

Trade Manager ID: sinoplast2013
