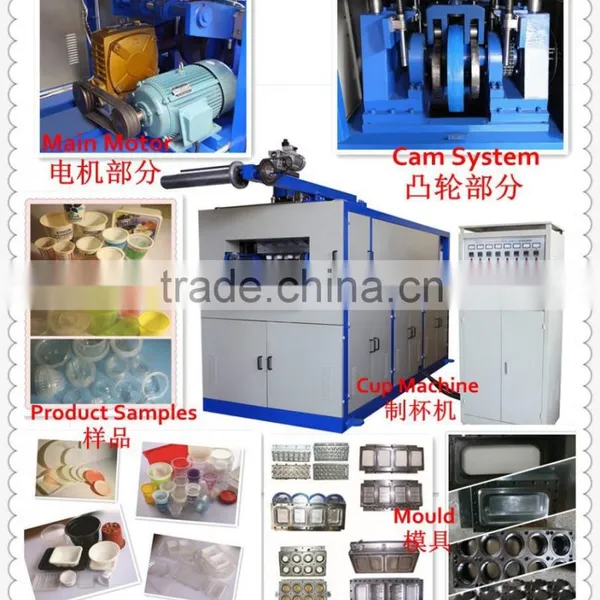

I. Usage:
It is mainly used to from PP/HIPS/PET/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice cream cup, yoghurt cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor and inverter, the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
5) We adopt square steel to make the machine frame stronger.
6) The working performance of this machine is controlled PLC and touch screen.
III. Main Technical Parameter:
Model |
SPC-660C |
Mould Driving Method |
Cam |
Approximate Max. Forming Area |
660 x 300 mm |
Approx. Running Speed |
15-30 Stroke / min approx. during production |
Approx. Sheet width for feeding |
500 – 660 mm in rolls. |
Mode of cutting arrangement. |
In mould automatic |
Sheet thickness Range |
0.20 – 2.0 mm |
Material |
PP, PS, PET, PVC,PLA |
Max. Draw depth, (i.e. cup length) |
140 mm (Could be special design) |
Oil Pump Motor Power |
11KW |
Sheet Feeding Motor |
2.2KW |
Max. Sheet roll diameter. |
800 mm |
Heating arrangement |
Top + bottom heating with IR Ceramic Heater(120pieces, 650W) |
Temperature Controller & Thermocouple. |
PID K-Type |
Type of Mould |
Multi cavity 1 – 3 row. |
Approx. Electrical Consumption |
45KW/hr |
Approximate Dimension |
L3750×W1550×H2500 (mm) |
Approximate Weight |
4000Kg |
According to round cup with Dia.=75mm, we could make a mould with
20 cavities or 21 cavities for this machine.
IV. Some Thermoforming Samples:
V. Thermoforming Mould Photos:
VI. Auxiliary Machines For Cup Thermoforming Machine:
More details please don't hesitate to contact with Ms. Maggie Lin:
Trader Manager ID: sinoplast2013
Skype: maggielam718
Whatsapp/Viber/Mobile: 0086-13958816227
