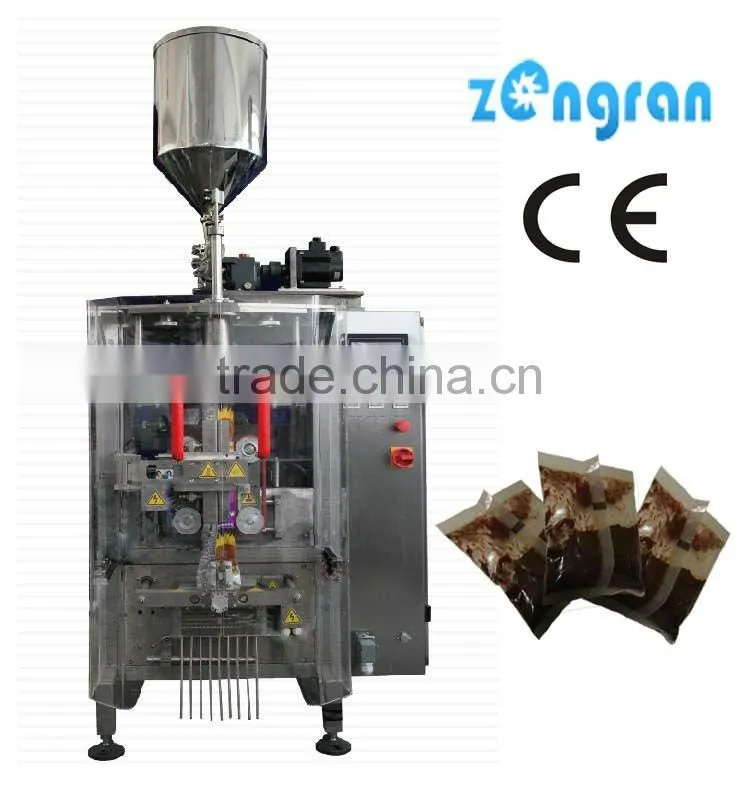

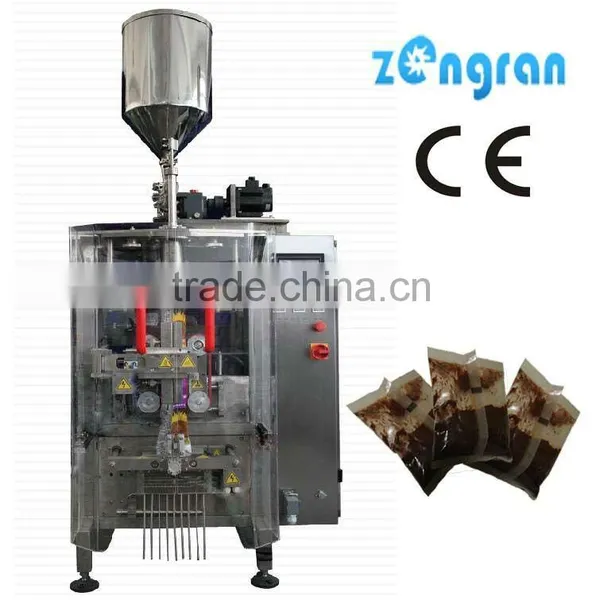

Automatic VFS5000D Liquid Packaging Machine

                VFS5000 packaging machine

               Liquid materail filling system

• Machine fully controlled by Siemens or Omron PLC & Touch-Screen

• All pneumatic components adopt German FESTO and Japanese SMCD brand product.

• Minute capacity can automaticlly display on Touch screen

• The cylinder piston and cylinder body are made of PTFE and 316L steel in compliance with GMP requirements

• The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipemnt
• can euqiped with hole punching system to puch hole on the bag for handling .

Bag type

Pillow type bag;Gusseted bag (Option)

Metering Range:

20∼500g   200∼1000g

(according to different materail denticy&characteristic)

Speed

30 to 80 bags/min

Bag Length

20 to 280mm (0.8 to 11in)

Bag Width

40 to 190mm (1.6 to 7.5in)

Reel Film Width

≤400mm (15.7in)

Film thickness

0.04-0.12mm (40-120mic.)

Reel Outer Dia.

400mm (15.7in)

Reel Inner Dia.

75mm (2.9in)

Voltage

AC220V/50Hz, 1phase or Per customer specification

Power Consumption

3KW

Compressed Air Requirement

0.6 MPa0.36 M3min
