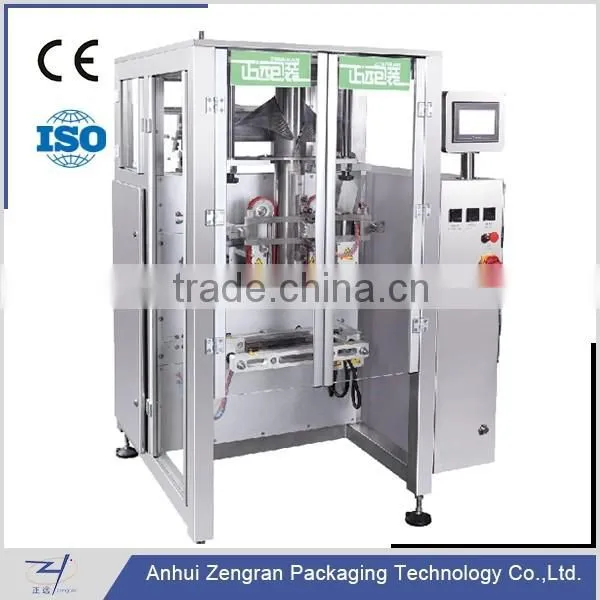

VFS7300 Automatic vertical form fill seal snacks packaging machine
Application:
This VFS7300 Automatic vertical form fill seal snacks packaging machine can be euqiped with different weight and filling system for various granule, powder and liquid products, packaging such as peanuts, candies, cookies, potato chips, rice, sugar, beans, dried fruit, pet food, ground coffee, milk, detergent powder, shampoo, ketchup, spices etc.
Technical Specification:
Bag type |
Pillow type bag;Gusseted bag (Option) |
Speed |
20 to 50 bags/min |
Bag Length |
50 to 460mm (1.9to 18in) |
Bag Width |
80 to 350mm (3.1 to 13.8in) |
Reel Film Width |
≤730mm (28.7in) |
Film thickness |
0.04-0.12mm (40-120mic.) |
Reel Outer Dia. |
500mm (19.7in) |
Reel Inner Dia. |
75mm (2.9in) |
Voltage |
AC220V/50Hz, 1phase or Per customer specification |
Power Consumption |
3KW |
Compressed Air Requirement |
0.6 MPa0.36 M3min |
Machine Size |
L1760 x W1400 x H1745mm; (in): L69.3 x W55.1 x H68.7 |
Machine Weight |
800kg |
Multihead scale liquid filler cup filler spiral filler
Platform Conveyor
1.Ultra-fine powder(e.g.rice flour,milk powder,building materials,coffee powder,seasoning powder,toner)
2.Granular material(e.g.forage,granular fertilizer,seeds,nuts)
3.Chip material(e.g. potato chips,crackers)
4.Strip material(e.g. noddles,bean sprout,Chinese medicine decoction piece)
5.Paste material(e.g. bean paste,paste,architectural coating)
6.Solid/liquid mixture(e.g. pickled pepper)
Bag type:
Pillow bag,gusset bag,hole punching bag,qoad seal bag.

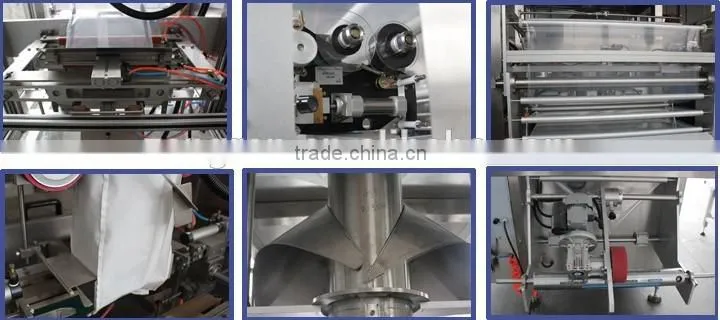

Machine Advantage:
1, Machine is fully controlled by Siemens or Omron PLC & Touch-Screen
2, Minute capacity could automatically display on Touch-Screen
3, Film transport system and horizontal Jaw motion are both drive by Panasonic
4, Safe quick change of tube and collar by just pull out the brake
5, Optoelectronics detect film position on collar to correct film excursion
6, Electrical photo sensor inducting color code to control bag length
7, Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
8, Independent temperature adjustment& code printing system
9, Various types of heating sealable laminate films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, ALUMMINUM FOIL based can be run on the machine
10, The packaging machine also can be used for Polyethylene Film sealing by changing correspond equipment
11, It can also be equipped with hole-punching system to pouch hole on the bag for handling.
We provide best packaging suitable for sea shipping:
1. All goods of Zengran packing machine are packed in wooden box.
2. Our engineers are available to service machinery overseas to help customers to solve machine problems.
The installation can be provided by the ZENGRAN company.
It must be after shipment has arrived and factory must ready equipped with all necessary requirement before booking installation with ZENGRAN company . Our engineers will come to the site for the complete and final installation.
During the installation session, a one day training course will be provided to the customer for operation and maintenance procedure.
The purchase at US$80/person/day plus all local transportation, air tickets(round trip), and minimum of 3 star hotel room & board is provided. Day charges include travel days.
We Promise Customer Perfect Guarantee and After-Service:
As for Zengran packaging machine,our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
*Industry leading enterprise,national high-tech enterprise,high-tech enterprise of Anhui Province and innovation enterprise of Anhui Province.
*Has already signed global sourcing stategy plan with many World top 500 companies,ans has provided packaging solutions and its products spread over every trade.
*Has about 600 employees,about 70,000m2 production workshops and an annual production capacity of more than 2000 sets of various types of packaging machinery,and has the capability of providing of providing whole plant intelligent packaging production line for customers.
Specialized manufacturing:
1.VFFS Packaging Machine line
A.Automatic granular,powder,liquid packing machine
B.Automatic food packing machine
C.Automatic tea packing machine
2.Multihead weigher,Linear weigher,auger filler,counting machine
3.Automatic vacuum packing machine line
4.Automatic secondary packing machine(put small bags into large bags)
5.5-50kg Automatic bag feeding packing machine
6.Check weigher,metal detector,conveyor,elevator
7.Automatic carton case packing line
8.Automatic vegetables,noodle packing line
Before we can give you our best packaging solution,
We need the following information:
- What product/material going to pack?
- Packing in pre-made pouch or film formed automatically?
- Packing weights/volume?
- Bag type?
- Bag sizes?
- Request Packing speed?
