A Brief Introduction of the Machine:
ZB-500Nis specialized in packing products into vacuum status and brick shapes, various kinds of powder or granules are available, such as coffee, yeast, tea leaves etc. It’s best to work with vertical form fill and seal machines to complete the automatic bagging line, Which consisting of screw loading conveyor with vibratory hopper feeder, auger filler dosing system, automatic bag making machine with date printing unit, and the vacuum brick maker. Packed bag keep high quality in sealing, long time in reserving, smart in outlook. Advanced in vibration, pressing, reforming, vacuuming, sealing, cutting, smoothing and conveying such chief processing step, take result in getting nice bag shape and appropriate vacuum degree.
Machine Advantage:
VFS5000F Packaging Machine
Machine fully controlled by Siemens or Omron PLC & Touch-Screen;
Minute capacity can automatically display on Touch screen;
Film transport system and horizontal Jaw motion both derived by Panasonic;
Safe quick change of tube and collar by just pull out the bracket;
Optoelectronics detect film position on collar to correct film excursion;
Electrical photo sensor inducting color code to control bag length;
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting;
Independent temperature adjustment& code printing;
Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine;
The packaging machine also can be used for Polyethylene Film Sealing by changing correspond equipment;
Can equip with whole punching system to punch hole on the bag for handling.
CJS2000-F four Head Liner Weighing Machine
Manual or automatic operation (Four weighting hopper working)
Precision load cell weighing mechanism with mechanical overload protection
Sturdy weigh bucket with servo motor operated door with sensor control
Outlet chute with optional extension to suit application

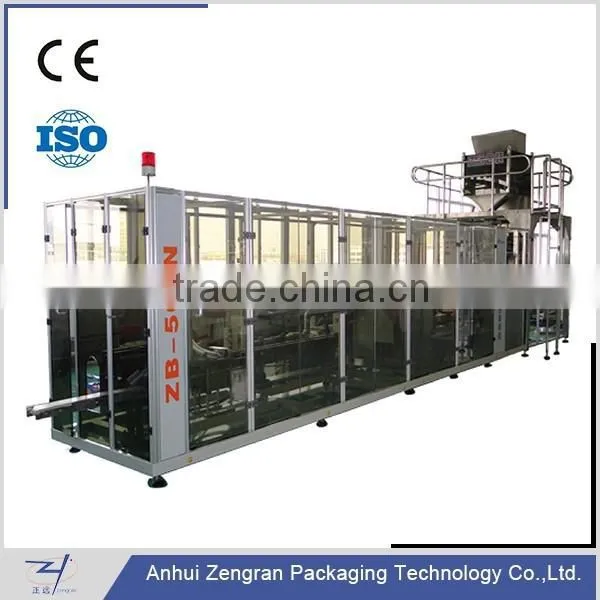

ZB500N Vacuum &Bag Reshape System
Auto Vibrate, Form, Vacuum & Reseal Brick Bag
Stable working with SIEMENS PLC, Panasonic Servo Drive
Adopt inside vacuumed, fast speed
Machine working Steps:
Get Bag from VFS Series: Vertical Form, Fill & Seal Machine - Vibrate the Bag - Form the Bag Shape - Vacuum & Seal Bag - Output Bag
Bag type |
Vacuum & Reseal Brick Bag |
|||
Maximum Capacity |
up to 1 kilograms( have to change auger & tube according to different weighting range ) |
|||
Minimum Capacity |
depend on product characteristics but nominally 3 grams |
|||
Speed |
10-15(times/min) dependent on products characteristics and weighting range |
|||
Hopper capacity |
50Litres |
|||
Weighing accuracy: |
±0.2% dependent on products characteristics |
|||
Bag Length: |
20 to 280mm (0.8 to 11in) |
|||
Bag Width: |
40 to 190mm (1.6 to 7.5in) |
|||
Reel Film Width: |
≤400mm (15.7in) |
|||
Film thickness: |
0.04-0.12mm (40-120mic.) |
|||
Reel Outer Dia.: |
400mm (15.7in) |
|||
Reel Inner Dia.: |
75mm (2.9in) |
|||
Voltage: |
AC220V/50Hz, 1phase or Per customer specification |
|||
Power Consumption: |
VFS5000F Packaging Machine |
3KW |
||
CJS2000 Weighing Machine |
1.2kw |
|||
ZB500N Vacuum & Bag Reshape System |
10KW |
|||
Compressed Air Requirement: |
0.6 MPa0.36 M3min |
|||
Machine Size: |
6600X1100X3600(mm) |
|||
Machine Weight: |
VFS5000F Packaging Machine |
800kg |
||
CJS2000 Weighing Machine |
250kg |
|||
ZB500N Vacuum & Bag Reshape System |
1500kg |
|||
We provide best packaging suitable for sea shipping:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Welcom to visit our fatory !
