Banana Chips Automatic Doy Bag Packaging Machine-CF8-200 Model with Zipper Opening

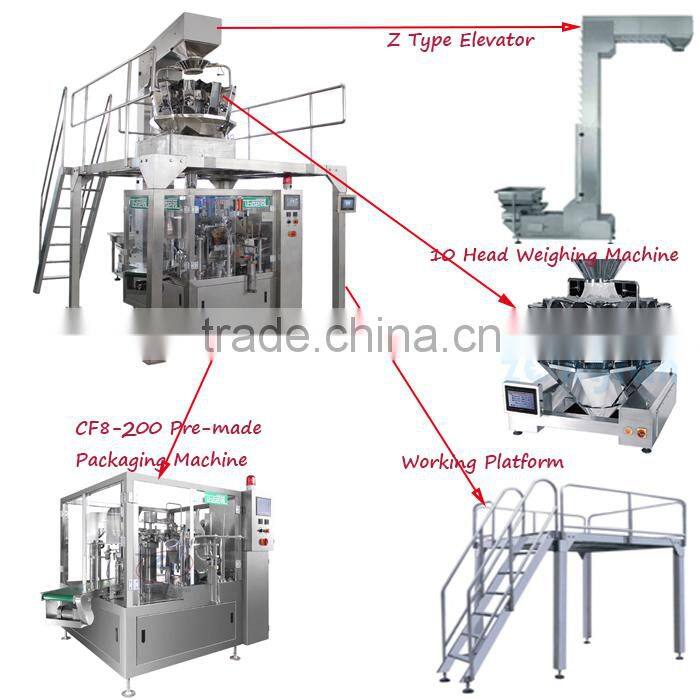

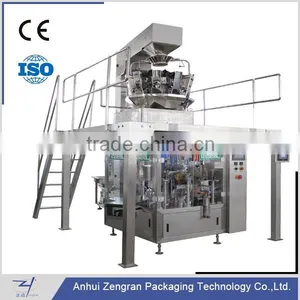

CF8-200 Automatic Banana Chips Packaging machine sets is specialling designed to pack banana chips with pre-made zipper self-stand up bag (Doy Bag). This machine unit is composed of the CF8-200 Main Machine, Working Platform, Ten Head Weighing Machine and Z Type Elevator. The machine unit can automatically feeding bags until final finished bags coming out. It has adopted by many buyers in Philipines and Thailand to open banana processing shops and win great reputation.

Safety and Hygiene:

 No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.

 Machine alarm and stop when the inadequate air pressure.

 Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.

 Hygienic construction, the product contact parts are adopted sus304 stainless steel.

 Imported engineering plastic bearings, no need to oil, and no contamination.

 Oil-free vacuum pump, avoid the pollution of the production environmental.

 Production Line Layout Chart:

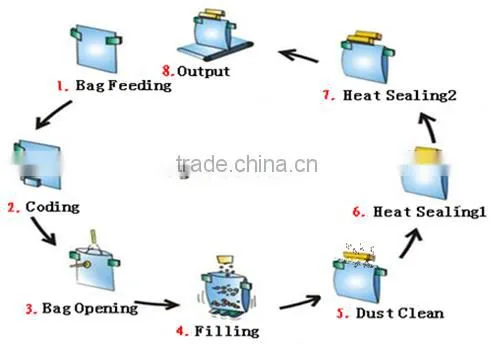

Packaging Process:

 Station 1  Bag dispensing (Bag feeding)

 Feed many pouches or bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

 Station 2  Coding (Date Printing)

 Ribbon printer, Ink-jet printer for optional

 Station 3  Bag Opening

             Using air to open the bag, and an opening detection device inserts into the

             opened bag to expanding it and detect if it is open or not.

 Station 4  Filling

                 There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.

            No open no filling no sealing

Station 5  Dust Clean

                Clean the dust on the bag mouth for better heat sealing

Station 6  Heat sealing 1

            To seal the bag with a couple of heat sealing air bar

Station 7  Heat sealing 2

            Second sealing for sealing stronger

Station 8  Forming and product output

             To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically. (the sealing pattern with net or straight lines for your option)

We provide best packaging suitable for sea shipping:

1, All goods are packed in wooden box.

2, Our engineers are available to service machinery overseas to help customers to solve machine problems.

We Promise Customer Perfect Guarantee and After-Service:

 As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.

Contact: Simon Ma      Skype: simon6179  Mob: 008613721089017

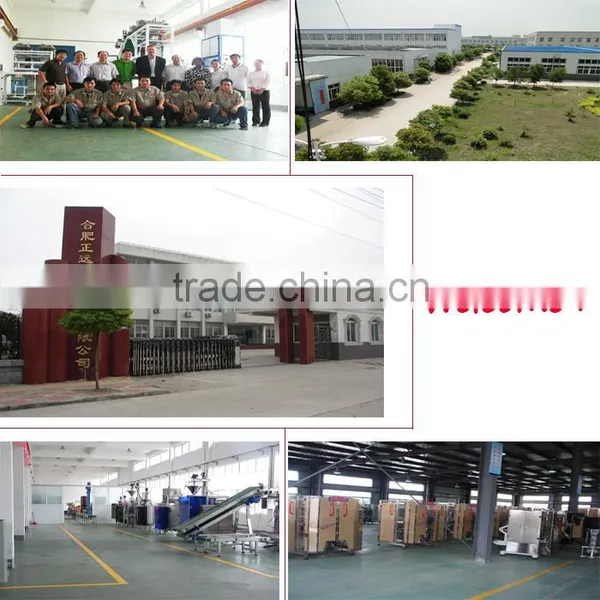

Welcom to visit our fatory !
