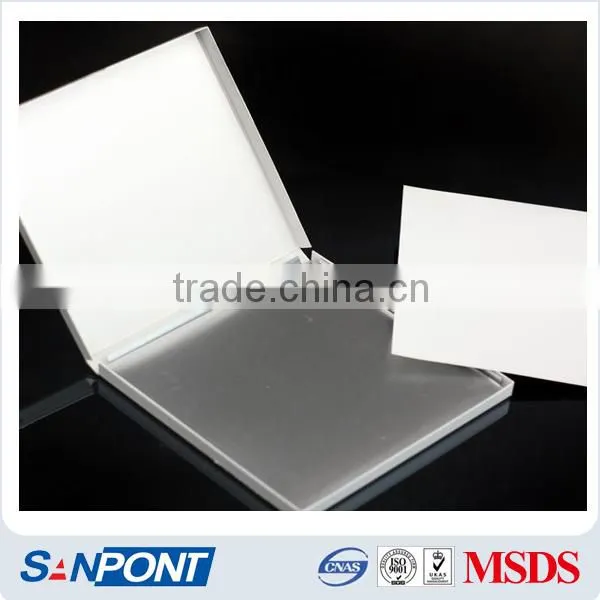

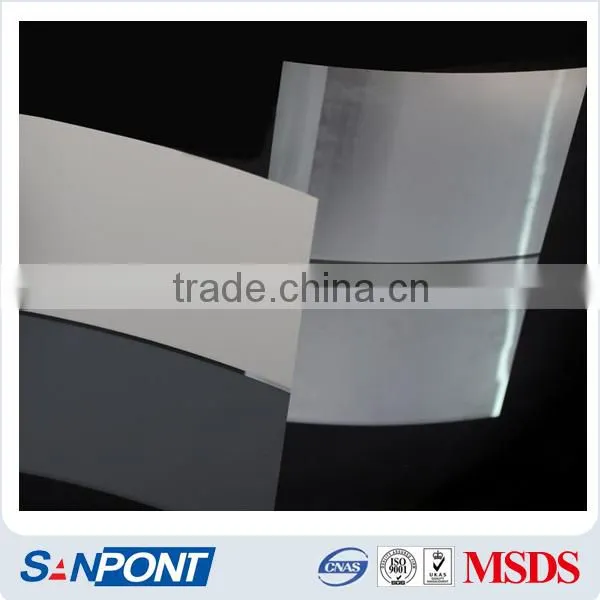

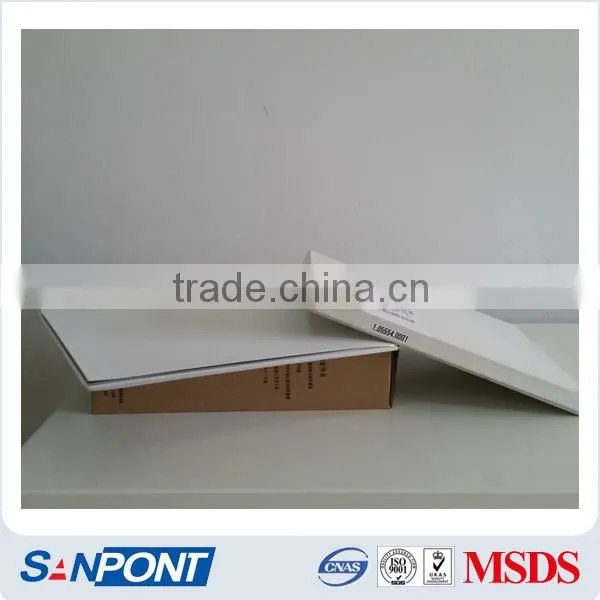

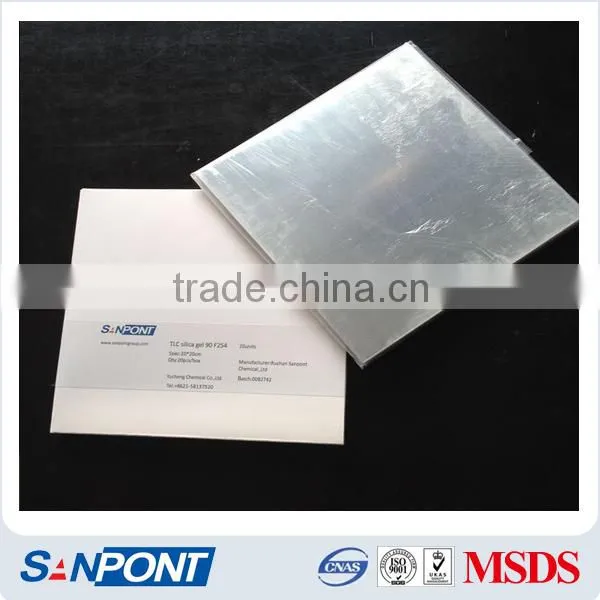

SANPONT Analysis & Purification Applications TLC Chromatography Aluminum Foil Plate
Technical Index:
| Index name | Index |
| Appearance | Plate |
| Coating thickness | 150-200 μm |
| Granularity | 5-10 μm |
| PH | 6.2-6.8 |
| Scattering parameter | SX=3 |
| Conventional deployment distance | 3-6 cm |
| Conventional separation time | 3-20 min |
| Volume of sample | 0.1-0.5 µl |
| Detection limit | 5-10 pg |
Adhesive fastness: Available glass cutter cutting and HB pencil marketing.
EINECS No.: 231-545-4
Performance: SANPONT Analysis & Purification Applications TLC Chromatography Aluminum Foil Plate is a kind of chromatographic material. We use efficient silica gel powder as absorbent and modulate it with new organic adhesives. Then we coat silica gel on the aluminum evenly with fully automatic coating equipments. It's characterized of small amount of sample points, fast separation, high sensitivity, etc.
| Specification | Pcs/box (white cardboard) | Pcs/carton (corrugated carton) |
| 20*20cm | 20 |
200 |
| 20*20cm | 25 | 250 |
* Note: Package can be cutomized.
Transporation: non-harzardous chemicals, avoid rain and insolation.
Storage: keep in dry and ventilating place.
1.Application ( TLC ) .
2.Base (Aluminum backed )
3.Size (20*20cm ) .
4.Coating thickness (0.15-0.20mm) .
5.Granularity( 8±2µm≥80% )
6.Indicator ( F254 )
7.Package (20pcs/box ? 25pcs/box ?).
8.Quantity.
Thin layer chromatography silica gel plate TLC GF254 (glass backed )
Thin layer chromatography silica gel plate PLC F254 (glass backed )
Yucheng Chemical (shanghai) Co.,Ltd.,
is a manufacturer specilized in researching and producing silica gel products. It has been established since 1996 with a 600-square-meter warehouse. We have got ISO9001, MSDS, CNAS, UKAS certificates. The ride from our factories to Qingdao port or Shanghai port takes only 1 hour. We have got lots of orders from other countries around the world. All of these make our company an excellent firm which you can rest assured to cooperate.
Our division
Shanghai (Headquarter) ,Shandong (factory ), USST & Qilu University of Technology (R&D Team), Tianjin and Chengdu (Storage location), Beijing ( After-sale Service Center ).
Our Value
Customer first ! To establish a stage to make employees’ dream come true and make a contribution to the society.
Our Mission
To provide high quality, high effeciency, high cost-effective separation materials for the pharmaceutical industry.
Our prospect
To be the most influential separation materials supplier in the world .
1. Payment term: L/C, T/T, ESCROW, PAYPAL, WESTERN UNION
2. Keep away from the water, please!
One of the top three silica gel direct manufacturers in China .
Provide HPLC column silica gel powder and TLC silica gel with advanced technology and adequate strength .
Provide OEM service for different technology data of silica gel powder and silica gel plate .
IF WE CAN DO SOME HELP , JUST CALL ME !
