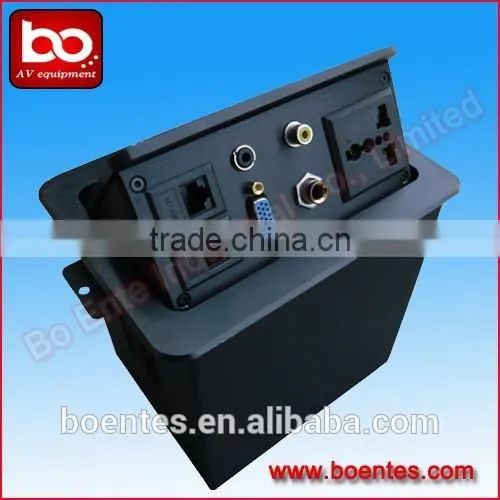

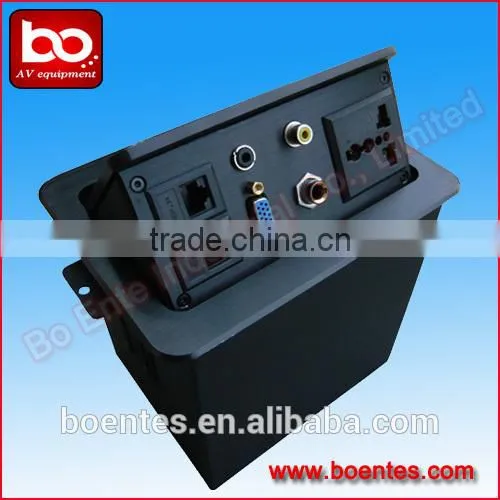

VGA Conference Tabletop Electric Power Socket with 3.5mm Audio &RJ45
Introduction:
BP series Tabletop Socket is designed as a table top socket box with multi-functional modules. Tabletop Socket is built in a pneumatic pressure spring pole, which can pop up the sockets with 45 degree. Desktop power plug works with the aluminum alloy connection plate. User can select the right plate with different modules accordingly to different application. All the modular plates of cable cubby are direct connection.
Pop Up Desktop Socket can be installed into high tier office, the luxury conference room, control room, hotel and multimedia classroom.
Selling Points:
Desktop Socket was by pneumatic pressure gas pole quietly
Table top of tabletop pop up box is mountable
The aluminum alloy plate of tabletop socket is 5mm
All the socket connectors and sockets of Desk socket are direct connection
Different sockets into pop up desktop socket could be added as required
Various versions of power socket
Characteristic
1, high quality aluminum finishing surface panel
2, Strong pneumatic pop up pole lead to excellent working life
3, Excellent A=A strong carton with foam cushion and paper protection
4, silver/black is available for selection
5, Power plug and voltage could be changed accordingly.
6, OEM with logo on product and packing is available
7, Customized made wit different modules is available
8, Quality had approved by CE certificate.
Application:
Conference Tabletop electric power socket is widely used on office furniture, high tier office, luxury conference table, hotel and multimedia classroom and training room.
Parameter:
| Product | Desktop Socket |
| Model No. | BP502 |
| Panel Size | 175*130mm |
| Product Size | 150*130*120mm |
| Cut out Size | 151*121mm |
| Color | silver/black |
| Detail Modules | 1-universal power, 2-LAN(RJ45),1-VGA, 1-Audio, 1-Video, 1-3.5mm Audio |
Selectable Parts:
|
Power Socket (Selectable ) |
Universal |
100-240V AC,50/60HZ,5A |
US version |
100-240V AC,50/60HZ,5A |
|
UK version |
100-240V AC,50/60HZ,5A |
|
Central EU version |
100-240V AC,50/60HZ,5A |
|
FR and BL version |
100-240V AC,50/60HZ,5A |
|
South Africa version |
100-240V AC,50/60HZ,5A |
|
Australia version |
100-240V AC,50/60HZ,5A |
|
|
Connector (Selectable) |
Computer |
15 pin HD VGA female |
Audio |
3.5mm stereo female jack |
|
Video |
RCA female |
|
Lan |
RJ45 ( CAT5e/ CAT6) network/data |
|
Telephone |
RJ11 voice |
|
USB |
USB2.0/3.0 female |
|
HDMI |
HDMI 1.3 female |
|
Microphone |
6.5mm stereo female jack |
|
XLR |
female jack |
|
DVI |
Female jack |
|
Switch |
press switch |
|
Working temperature |
5°C ~ 45°C |
|
Working humidity |
10% ~90 % |
|
Storage temperature |
- 20 °C ~70 °C |
|
Storage humidity |
5% ~95 % |
|
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of hydraulic pop up desktop socket is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
Payment:
T/T, L/C, Western Union, Money Gram, Crash is acceptable
Desktop Socket Drawing:
Top and Bottom Picture of Desktop Socket:

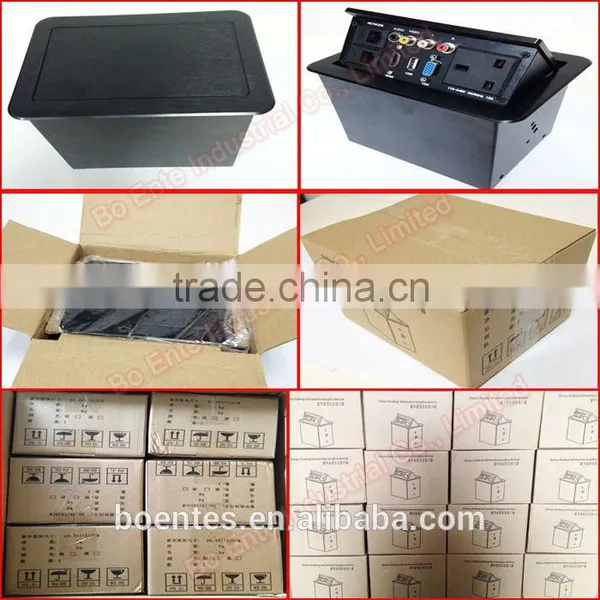

Product Packing Information:
Factory Material & Warehouse & Container Information:
Other Different Hydraulic Pop up Socket Box is available !
Other Boente desktop socket is available !
Feel free to browse Boente company website is interested !
