CRAC Cardboard Frame Pre-Air Filter
NO.1 Pannel Pleated Cardboard frame Pre-Air Filter
| model |
width (mm) |
height (mm) |
depth (mm) |
air flow (m³/h) |
initial resistance (≤pa) |
final resistance (pa) |
media area (m²) |
dust holding (g) |
efficency |
| CRAC-595-PF001 | 595 | 595 | 46 | 2800 | 30 | 100-200 | 1.23 | 104 | G2 |
| CRAC-595-PF002 | 595 | 595 | 46 | 2800 | 40 | 100-200 | 1.23 | 117 | G3 |
| CRAC-595-PF003 | 595 | 595 | 46 | 2800 | 45 | 150-250 | 1.23 | 222 | G4 |
| CRAC-595-PF004 | 595 | 495 | 46 | 2600 | 30 | 100-200 | 1.02 | 87 | G2 |
| CRAC-595-PF005 | 595 | 495 | 46 | 2600 | 40 | 100-200 | 1.02 | 97 | G3 |
| CRAC-595-PF006 | 595 | 495 | 46 | 2600 | 45 | 150-250 | 1.02 | 184 | G4 |
| CRAC-595-PF007 | 595 | 295 | 46 | 1500 | 30 | 100-200 | 0.6 | 50 | G2 |
| CRAC-595-PF008 | 595 | 295 | 46 | 1500 | 40 | 100-200 | 0.6 | 57 | G3 |
| CRAC-595-PF009 | 595 | 295 | 46 | 1500 | 45 | 150-250 | 0.6 | 107 | G4 |
| CRAC-595-PF010 | 495 | 595 | 46 | 2600 | 30 | 100-200 | 1.02 | 87 | G2 |
| CRAC-595-PF011 | 495 | 595 | 46 | 2600 | 40 | 100-200 | 1.02 | 97 | G3 |
| CRAC-595-PF012 | 495 | 595 | 46 | 2600 | 45 | 150-250 | 1.02 | 185 | G4 |
| CRAC-595-PF013 | 495 | 495 | 46 | 2200 | 30 | 100-200 | 0.85 | 72 | G2 |
| CRAC-595-PF014 | 495 | 495 | 46 | 2200 | 40 | 100-200 | 0.85 | 80 | G3 |
| CRAC-595-PF015 | 495 | 495 | 46 | 2200 | 45 | 150-250 | 0.85 | 152 | G4 |
NO.2 Cardboard Frame Pre-filter Media and Operation condition
| media | cotton |
| sealant | adhesive |
| frame | aluminum/galvanized/stainless steel/cardboard |
| efficiency | 40%~90% 2.0μm |
| max.temperature | 80°C |
| max.humidity | 80%-100% |
| optional aluminum | 15-96mm |

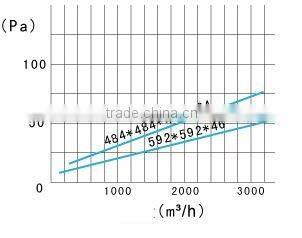

NO.3 Air Flow And Resistance
| Packaging Details: | Cardboard frame air Filter with plywood or carton packing |
|---|---|
| Delivery Detail: | 7 working days after receiving the payment |
1. Imported material to make sure super quality |
2. SGS ISO certified, strickly control each process of production. |
3. All filters are made and assembled in 10,0000 clean rooms |
4. Much more experienced in cooperating with big customers |
5. More than 5 production lines, keep fast and short delivery |
6. Open to do sourcing for clients in China about any products. |
7. Regular callback with our clients for better cooperation relationship and friendship |
100000 Clean room work shop for Air Filter
Kunshan CRAC Clean Technology Co., Ltd are a professional Manufacturing factory who main produce Air filter and clean room equipment found in 2006, located in the thriving industrial city of Kunshan,30Km away from Mega-City Shanghai.
Follow company development requirement, CRAC found a branch company(Kunshan FengRuiDa Air conditioning purification equipment Co.,ltd) in 2007, main specialize in Maintenance service for HVAC project .
The range of CRAC production including Air filter and clean room equipment ,
Air filter: such as HEPA Filter(Mini-pleated HEPA/Separator HEPA), Medium Filter(Medium Bag Filter/Medium Panel Filter), Pre-Filter, Activated Carbon Filter
Clean room equipment: Fan Filter Unit, Clean Bench, Air Shower, Clean booth, Pass Box and so on.
We are inputting a large amount of fund and technology to ensure our customers can enjoy the latest technology ,high quality products and most professional services.
CRAC has introduced the most advanced automatic production line for air filter, mixing glue machine, professional filter production equipment. In terms oftest equipment using the world first-class brand of laser high efficiency air filter of dust particle counter scan test bench.
Company adhering the core philosophy of "Complete Customer Satisfaction" by continually providing efficient, reliable and top quality services to our clients. CRAC had been able to meet the requirements of its expanding list of international clients from Europe, USA, Asia and Australia. With “Global business idea”, wherever you are, CRAC always be your side.
Sincerely hope can have chance to cooperate with you!
