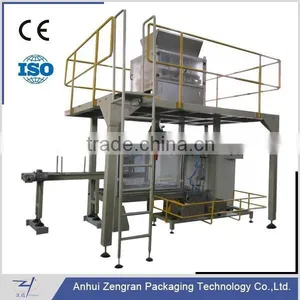

GFCK-G2 Automatic Heavy Bag Granular Packaging Machine Unit
A Brief Introduction of the Machine:

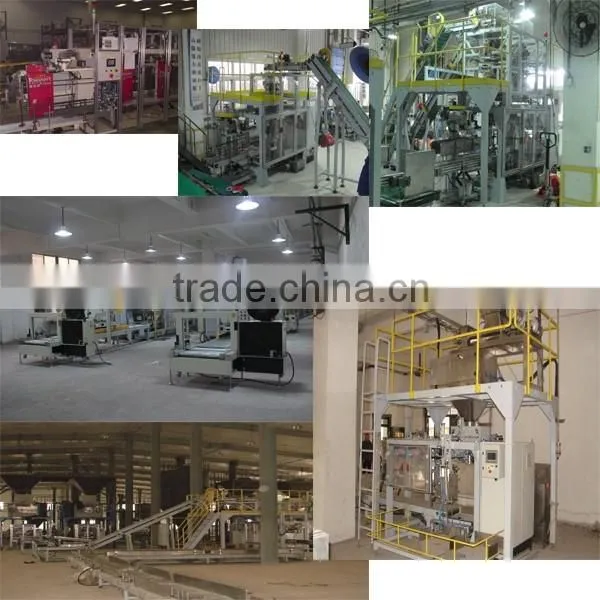

The whole machine units are consisted of Bucket Elevator, Vertical Filling & Weighing Machine and Heat Sealing Machine. The whole machine unit works perfectly for granular material pre-made paper/PE bag. It can be done for granular material feeding, manually bag feeding and opening, weighing and filling, bag hot sealing.
Working Flow:
Fertilizer Material Lift (DT2 Elevator)→Auto Weighing & Filling (CJD50K-S15 Weighing Machine)→Manually Auto Bag Feeding→Auto Material Filling→Bag Transferred Automatically through Conveying Belt→Heat sealing and sawing the Bag→Finished Bag Output.
Machine Parameters:
Bag Type: |
Pre-made Paper / PE/ Composite Bag/Kraft Bag |
Bag Dimensions: |
L: 500-700mm W: 300-400mm |
Packing Weight: |
20-30KG |
Packing Accuracy: |
±5% |
Packing Speed: |
8 bags/min as per to the material |
Power Supply: |
380V±10% 50Hz 5.5KW |
Machine Weight: |
2000KG |
Machine Size: |
6000*2000*4900mm(For Reference) |
Compressed Air: |
0.6MPa, 0.5m3/min |
We provide best packaging suitable for sea shipping:
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Contact: Simon Ma Skype: simon6179 Mob: 008613721089017
Welcom to visit our fatory !
